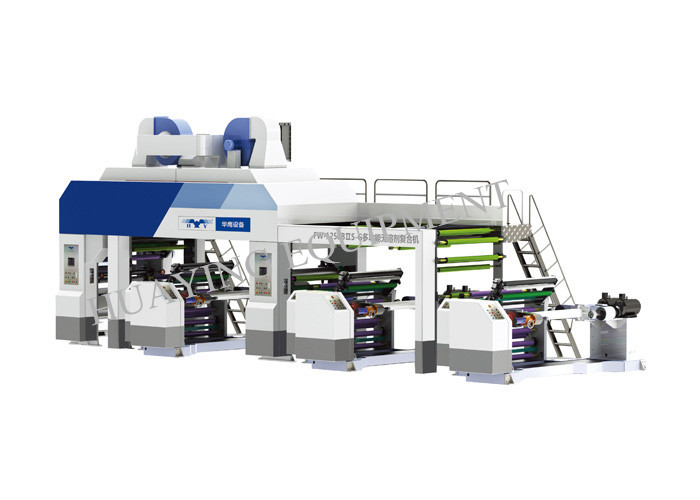

Customized Solventless Lamination Machine With Two Rollers Trolley 23T Weight

One set
MOQ
Negotiation
Price
Customized Solventless Lamination Machine With Two Rollers Trolley 23T Weight
Features Gallery Product Description Request A Quote
Features
Specifications
Application Area: Food Packing, Commodity Packing, Others Packing
Suitable Material --- First Substrate: BOPP、BOPET、BOPA、laminated Film(10-50μm)
Max. Working Speed: Max338m/min
Suitable Material --- Second Substrate: CPP、CPE、AL、paper(20-80μm)
Highlight:

extrusion lamination machine

,

solventless laminating machine

Basic Infomation
Certification: CE
Model Number: FW-1250BIIS-G
Payment & Shipping Terms
Packaging Details: Wooden packaging
Delivery Time: 60-90 days/set
Supply Ability: Three sets/ month
Product Description

Solventless laminators, working speed 338m/min, configured with solvent type laminated functional component



Technical details:

 Laminated width  900-1250mm (1050BII: 1150-1500mm)
 Diameter of the roll  Max.φ800mm
 Coating trolley unit  Five rollers trolley, two rollers trolley
 Coating weight(dry)

 Solventless type: 0.8-3g/㎡

 Solvent type: 1.5-4 g/㎡

 Driven motor power  56.3 kw (not including oven energy and fan )
 Power supply  380VAC±10%,50±2Hz,three-phase five-wire
 Size( L *  W *  H)  13775mm * 2550mm * 3200mm
 Weight  23T
 Optional function

 1. Solvent type adhesive coating trolley device

    ( including the oven heating supply)
 2. fixed point and checking coating control system
 3. substrate surface corona device
 4. sleeve type impressed rubber rollers





Summarize and function:



    This series of machines is the first one to use the industry computer center control in China. It can accurately control the mulit-motor tension, logic action and coating weight. It already formed three products series including solvent type, solventless type, multi-function type. This series of machines can not only ensure the high quality laminated products but also can furthest reduce the customers’production cost by using the energy-saving, consumption reducing, safety working condition emulational design. The equipment can apply to the multi-layers continuous high speed laminating of the rolled material such as the various bidirectional/ unidirectional stretching plastic film etc.



Core competition



1. Advanced performance:

    This series of machines is the 2008 year Province Level Key New Product and Guangdong Province High New Tech Product. After 10 years of continuous improvement and innovation, we have already formed the full line scientific research & design & precise manufacturing system and full line product specification & grade supply system.



2. Stability performance:

    We have already formed a steady professional team that integrate the scientific research design, product manufacturing and sales service. We coagulate many years’comprehensive resources and win the honor of “Best Product of China “.



3. Technical differences:

    Inner layer laminated substrate is nearly 3-4mm/m; can change the functional coating mold trolley, non-stop automatic roll exchange and film feeding

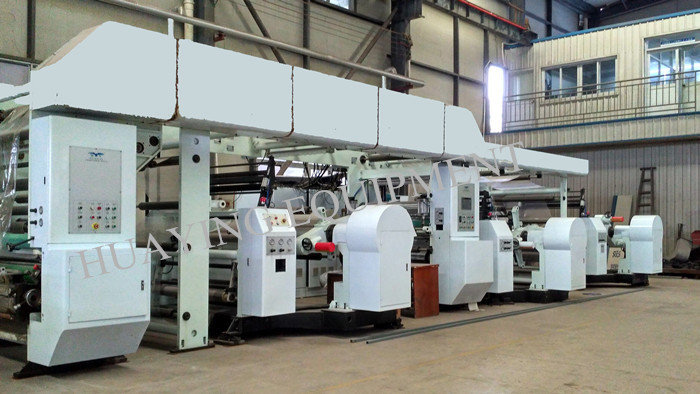

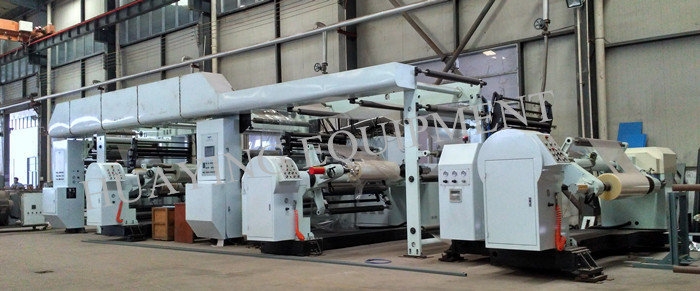

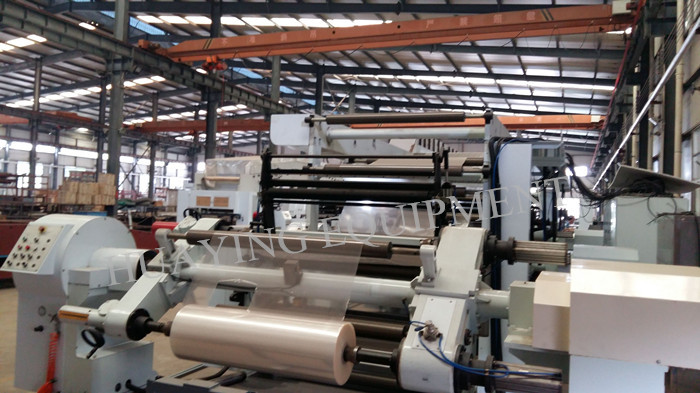

Key components:



Customized Solventless Lamination Machine With Two Rollers Trolley 23T Weight 0



Customized Solventless Lamination Machine With Two Rollers Trolley 23T Weight 1

Customized Solventless Lamination Machine With Two Rollers Trolley 23T Weight 2





Final products:

Customized Solventless Lamination Machine With Two Rollers Trolley 23T Weight 3
