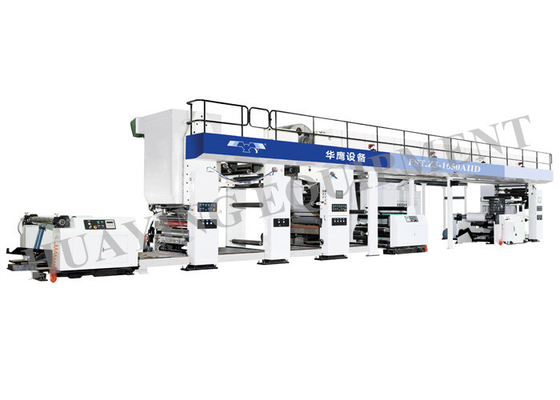

Release Paper Coater Laminating Coating Machine For Cigarette Packeting With Various Kinds Of Coater
One set
MOQ
Negotiation
Price
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: HY
Certification: CE
Model Number: FST.Z3-1650AIID
High Light:

lamination coating machine

,

extrusion coating machine

Payment & Shipping Terms
Packaging Details: Wooden packaging
Delivery Time: 90-120 days
Payment Terms: L/C, T/T
Supply Ability: One set/ month
Specifications
Max. Speed: Max.185m/min(can Chose BⅡ-250m/min)
Width Of The Roll: 1250mm-1650 Mm(1100AIID:750mm-1100mm)
Diameter Of The Roll: Max.φ1600mm( First Wind,rewinder),Max.φ600mm( Second Wind)
Coating Unit Structure: Two Rollers Coating Structure, Three Rollers Coating Structure
Size( L × W × H): 18700mm×5500mm×5000mm
Application Area: Composite Paperboard, Transfer Type Paperboard, Coating Paperboard
Product Description

Release paper coater, max working speed 185m/min



Technical details:



 Application area  Composite paperboard, transfer type paperboard, coating  paperboard
 Suitable substrate( first wind)  Good quality paperboard, high quality coated art paper(80-  300g/㎡)
 Suitable substrate( second wind)

 Transfer aluminizing film, transfer laser film (20-50μm ),

 aluminum foil (7-20μm )

 Coating weight(dry)

 Back coating: water-based Acrylic acid 1.5-2.5 g/㎡;

 Wet type laminated: water-based Polyurethanes 1.5-3 g/㎡;

 Aluminum foil surface: solvent-based ink 1.2-1.5 g/㎡

 Power of the driven motor  105 kw(not including oven energy source )

 Power of the heating supply (oven)

 Electric heating supply, thermal conductive oil supply
 Size( L × W × H)  18700mm×5500mm×5000mm

 Optional function



 1. seal space blade and glue supply unit

 2. other functional trolley coating unit( including glue supply device)

 3. viscosity automatically detecting and control device

 4. oven high-performance heating supply and working condition

     intelligent control system;

 5. Double station winder / unwinder

   ( including non-stop nil speed material feeding device)











































Summarize and function:



    This series of machines is the first one to use the industry computer center control in China. It can accurately control the mulit-motor tension, logic action and coating weight. Now we already form two series of coating equipments which are plastic film-release type transfer coating equipment, transfer/composite paper- coating laminating equipment. The equipment can apply to the coating of various kinds of transfer technology packaging and decoration functional material.





       Core competition:



① Advanced performance: National Key New Technical Product in 2000; After 15 years of continuous improvement and innovation, we have already formed the full line scientific research & design & precise manufacturing system and full line product specification & grade supply system.



②Coater performance: Slot die, apply to solvent based coating. Inner channel and adhesive supply system are designed based on different surface tension of coating liquid to achieve effective such as larger coating weight and even coating layer.



③Technical differences: configured with modularization coating unit, oven energy saving≥40%, can choose the double station high speed non-stop automatically paper feeding unit, can offer the whole technology and coating liquid supply channel of the final products to customer.



Key components:

Release Paper Coater Laminating Coating Machine For Cigarette Packeting With Various Kinds Of Coater 0

Release Paper Coater Laminating Coating Machine For Cigarette Packeting With Various Kinds Of Coater 1

Release Paper Coater Laminating Coating Machine For Cigarette Packeting With Various Kinds Of Coater 2

Final products:

Release Paper Coater Laminating Coating Machine For Cigarette Packeting With Various Kinds Of Coater 3



Contacts:



Shantou Huaying Soft-Packing Equipment Plant Ltd.
Contacts :Arik

E-mail:hy@hyspe.com

Tel:0086 754 88227042

ADD:B2-B4, Block 9, Jinyuan Industrial Park, Chaoshan Road, Shantou, China
Post Code: 515064
Fax: 0086 754 88226282
