PLC Control Dry Lamination Machine 13500mm×4500mm×3300mm Double-layer Roll Film
One set
MOQ
Negotiation
Price
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: HY
Certification: CE
Model Number: FG-1050AIIS
High Light:

automatic lamination machine

,

wet lamination machine

Payment & Shipping Terms
Packaging Details: Wooden packaging
Delivery Time: 75-90 days/set
Payment Terms: L/C, T/T
Supply Ability: Three sets/month
Specifications
Max. Working Speed: Max185m/min
Laminated Width: 700-1050mm (1250AII:900-1250mm)
Diameter Of The Roll: Max.φ600mm
Driven Motor Power: 60kw(not Including Oven Energy Source )
Suitable Material --- First Substrate: BOPA, BOPP, BOPET, Laminated Film(10-50μm)
Suitable Material --- Second Substrate: AL, CPP, CPE, Paper(20-80μm)
Product Description

PLC control high speed dry laminating machine, working speed 185m/min, dual laminating function, Solvent-based ,water-based



Quick Details:

Kinds of laminating Dry laminating production technics
Power supply : 380VAC±10%, 50±2Hz, three-phase five-wire
Power of the heating supply (oven) Electric energy supply, steam supply, thermal conductive oil supply
Application area food packing, commodity packing, others packing
Max. working speed Max185m/min
Suitable material --- first substrate BOPA, BOPP, BOPET, laminated film(10-50μm)
Suitable material --- second substrate AL, CPP, CPE, paper(20-80μm)
Laminated width 700-1050mm (1250AII:900-1250mm)
Diameter of the roll Max.φ600mm
Driven motor power 60kw(not including oven energy source )
Structure of the coating unit Two rollers coating structure
Coating weight(dry)

Water-based:1-3.5 g/㎡

Solvent-based: 1.5-4g/㎡

Size( L × W × H) 13500mm×4500mm×3300mm
Weight 23 T
Optional function

1. coating seal spaced blade device

2. tension control system for dual-film of 2nd unwind device

3. adhesive automatically viscosity control device

4. fixed point and checking coating control system

5. other functional coating unit

6. substrate surface corona device

7. high-performance energy saving and consumption reducing system

























































     Summarize and function:

This machine is suitable for the double-layer or multiple-layer lamination of such roll film material as BOPP, PET, Nylon, CPP, CPE, aluminum foil and paper, etc, producing high quality compound materials with high freshness, and boiling and steaming resistance.



Core competition:

1) Double frequency conversing synchronic timing is adopted for entry port of main machine, making more stable operation.

2) Two means of glue applying, cob-webbing roll sizing and rubber roll gluing.

3) Top air style oven open. Initiative guiding roll in oven.

4) 4-sect heating in drying tunnel, possible to control temperature by segments.

5) Photoelectric error correction for unreeling, with automatic tension.

6) Rewinding and unwinding by tumbling dual-station mechanism, realizing auto material change without machine halt.

7) Oil warming system for composite reel, constant temperature control.



PLC Control Dry Lamination Machine 13500mm×4500mm×3300mm Double-layer Roll Film 0



Final Products:

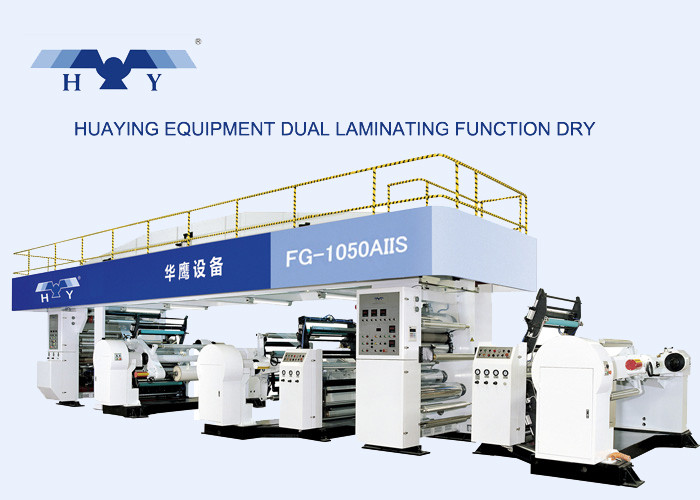

PLC Control Dry Lamination Machine 13500mm×4500mm×3300mm Double-layer Roll Film 1

Contacts:



Shantou Huaying Soft-Packing Equipment Plant Ltd.
Contacts :May Wu

E-mail:hy@hyspe.com

ADD:B2-B4, Block 9, Jinyuan Industrial Park, Chaoshan Road, Shantou, China
Post Code: 515064
Fax: 0086 754 88226282
