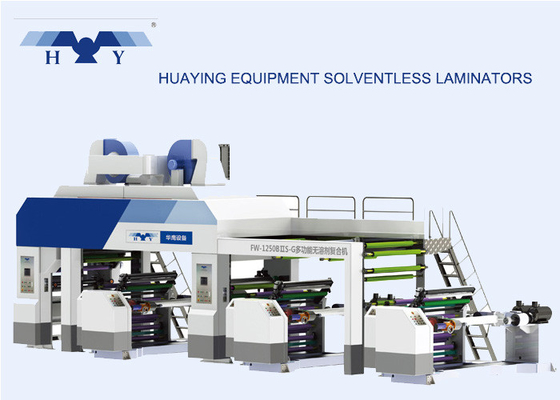

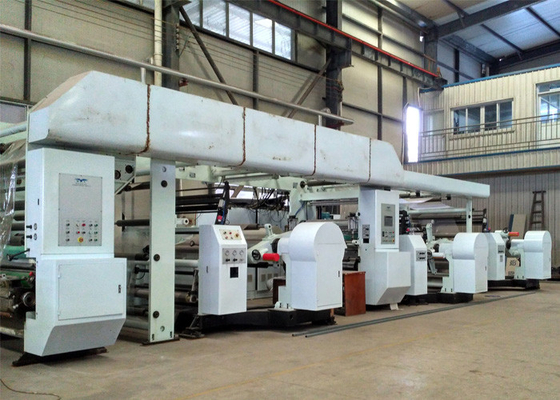

Industrial high speed solvent-free lamination for BOPP/PET/PE, working speed 338m/min, configured with solvent type laminated functional component
Quick Details:
| Suitable material --- first substrate | BOPP, BOPET, BOPA, Laminated film(10-50μm) |
| Suitable material --- second substrate | CPP, CPE, AL, paper(20-80μm) |
| Application area | Food packing, Commodity packing, Others packing |
| Max. working speed | Max338m/min |
| Laminated width | 900-1250mm (1050BII:1150-1500mm) |
| Diameter of the roll | Max.φ800mm |
| Coating trolley unit | Five rollers trolley, two rollers trolley |
|
Coating weight(dry) |
Solventless type: 0.8-3g/㎡ Solvent type: 1.5-4 g/㎡ |
| Driven motor power | 56.3 kw (not including oven energy and fan ) |
| Power supply : | 380VAC±10%,50±2Hz,three-phase five-wire |
| Size( L × W × H) | 13775mm×2550mm×3200mm |
| Weight | 23T |
|
Optional function
|
1. Solvent type adhesive coating trolley device ( including the oven heating supply) 2. Fixed point and checking coating control system 3. Substrate surface corona device 4. Sleeve type impressed rubber rollers |
Production introduction:
1. Solvent-free compound is a truly environmentally friendly, and can be widely used in flexible packaging printing industry, technology, represents one of the direction of the composite packaging technology.
2. It is a typical "three noes" process:
NO pollution;
No solvent residue;
No security risks.
3. Their application is closely related with people's daily lives.
4. Compared with solvent-based, water-based glue dry compound, solvent-free adhesive compound has obvious advantages in cost, energy saving, emission reduction.
Advanced application:
1.Composite type:solvent free
2.Coating method:Five roller coating (measuring roller, transfer steelroller, transfer rubber roller, steel coating steel roller, coating rubberroller)
Final Products:
