Name: Fully Automatic Solventless Lamination Machine Speed 338m/min With Five Rollers Trolley
Brand: Huaying Soft-packing Equipment Plant Ltd.
SKU: FW-1250BIIS-G
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Laminated Width: 900-1250mm (1050BII：1150-1500mm)

Suitable Material --- Second Substrate: CPP, CPE, AL, Paper(20-80μm)

Max. Working Speed: Max338m/min

Suitable Material --- First Substrate: BOPP, BOPET, BOPA, Laminated Film(10-50μm)

Diameter Of The Roll: Max.φ800mm

Coating Trolley Unit: Five Rollers Trolley, Two Rollers Trolley

Highlight:

solvent based lamination machine

solventless laminating machine

Basic Infomation

Certification: CE

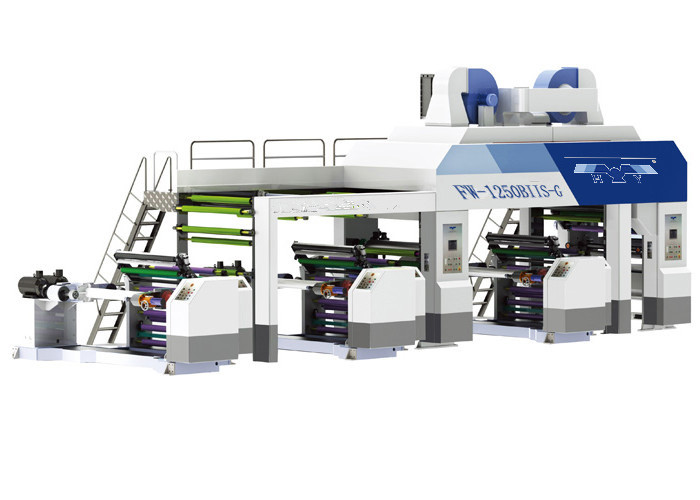

Model Number: FW-1250BIIS-G

Payment & Shipping Terms

Packaging Details: Wooden packaging

Delivery Time: 60-90 days/set

Payment Terms: L/C, T/T

Supply Ability: Three sets/ month

Gallery

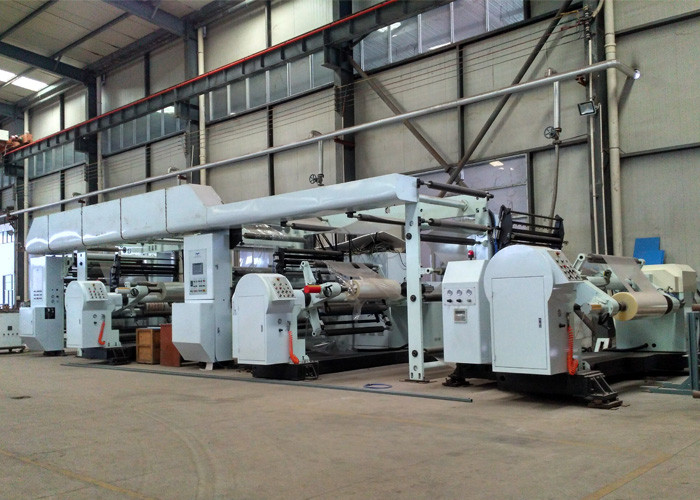

Fully Automatic Solventless Lamination Machine Speed 338m/min With Five Rollers Trolley

Product Description

Fully automatic High speed solvent-free laminating machine, working speed 338m/min, solvent type laminated functional component

Quick Details:

Laminated width	900-1250mm (1050BII:1150-1500mm)
Suitable material --- second substrate	CPP, CPE, AL, paper(20-80μm)
Suitable material --- first substrate	BOPP, BOPET, BOPA, Laminated film(10-50μm)
Max. working speed	Max338m/min
Diameter of the roll	Max.φ800mm
Power supply :	380VAC±10%,50±2Hz,three-phase five-wire
Coating trolley unit	Five rollers trolley, two rollers trolley
Coating weight(dry)	Solventless type: 0.8-3g/㎡ Solvent type: 1.5-4 g/㎡
Driven motor power	56.3 kw (not including oven energy and fan )
Weight	23T
Size( L × W × H)	13775mm×2550mm×3200mm
Application area	Food packing, Commodity packing, Others packing
Optional function	1. Sleeve type impressed rubber rollers 2. Solvent type adhesive coating trolley device ( including the oven heating supply) 3. Substrate surface corona device 4. Fixed point and checking coating control system

Product Description

- Ergonomic & Easy Clean

- Fast Change Sleeve Type Transfer Roller

- Shaftless Unwind and Rewind

- Precise Coating Weight via Five Coating System

- Consistent Lamination via Five Roller Lamination System

Main Features

1. The glue coating and laminating motor adopts double variable frequency synchronous speed regulatingto replace the old shaft driving transmission structure.

2. Smooth material feeding and synchronous linear speed ensure stretching of the base material.

3. The bridge-type three-segment drying tunnel heating with three section automatic temperature control.

4. Gluing and laminating adopt pneumatic pressing rollers.

5. The two kinds of doctor blade type and pressing-type gluing ways can be chosen at will according todifferent processes.

6. Unwinding and Rewinding adopt magnet powder tension control.

7. The interlocking and subsection temperature control system can control temperature at the best state.

8. First unwinding adopt automatic EPC system.

9. Second unwinding adopt double shafts.

Key Components:

Fully Automatic Solventless Lamination Machine Speed 338m/min With Five Rollers Trolley 0

Final Products:
