Fully Automatic High Speed Solventless Lamination Machine
One set
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: CHINA
Brand Name: HY
Certification: CE
Model Number: FW-1250BIIS-G
High Light:

solvent based lamination machine


extrusion lamination machine

Payment & Shipping Terms
Packaging Details: Wooden packaging
Delivery Time: 60-90 days/set
Payment Terms: L/C, T/T
Supply Ability: Three sets/ month
Laminated Width: 900-1250mm (1050BII:1150-1500mm)
Suitable Material --- Second Substrate: CPP, CPE, AL, Paper(20-80μm)
Max. Working Speed: Max338m/min
Suitable Material --- First Substrate: BOPP, BOPET, BOPA, Laminated Film(10-50μm)
Product Description

Industrial high speed solvent-free lamination for BOPP/PET/PE, working speed 338m/min, configured with solvent type laminated functional component


Quick Details:


Suitable material --- first substrate BOPP, BOPET, BOPA, Laminated film(10-50μm)
Suitable material --- second substrate CPP, CPE, AL, paper(20-80μm)
Application area Food packing, Commodity packing, Others packing
Max. working speed Max338m/min
Laminated width 900-1250mm (1050BII:1150-1500mm)
Diameter of the roll Max.φ800mm
Coating trolley unit Five rollers trolley, two rollers trolley


Coating weight(dry)

Solventless type: 0.8-3g/㎡

Solvent type: 1.5-4 g/㎡

Driven motor power 56.3 kw (not including oven energy and fan )
Power supply : 380VAC±10%,50±2Hz,three-phase five-wire
Size( L × W × H) 13775mm×2550mm×3200mm
Weight 23T


Optional function


1. Solvent type adhesive coating trolley device ( including the oven heating supply)

2. Fixed point and checking coating control system

3. Substrate surface corona device

4. Sleeve type impressed rubber rollers























Production introduction:

1. Solvent-free compound is a truly environmentally friendly, and can be widely used in flexible packaging printing industry, technology, represents one of the direction of the composite packaging technology.

2. It is a typical "three noes" process:

NO pollution;

No solvent residue;

No security risks.

3. Their application is closely related with people's daily lives.

4. Compared with solvent-based, water-based glue dry compound, solvent-free adhesive compound has obvious advantages in cost, energy saving, emission reduction.



Core competition:

1. Composite type: solvent free
2. Coating method: Five roller coating (measuring roller, transfer steel roller, transfer rubber roller, steel coating steel roller, coating rubber roller)
3. Composite material:
    BOPP 18-50pm
    PET 12-30pm
    VMPET 12-30pm
    VMCPP 20-60pm
    LLDPE 30-100pm
    CELLOPHANE 28-60gsm
    Nylon 15-100pm


Key technology advantage:

1. Apply to the technology requirement that chemical-base, water-base, solvent-less coating and laminating, and can support the order of multi-machine.

2. Dryer and heating supply system adopt computer simulation software design and series internal loop structure(Patent technology), configured with online intelligent control (Copyright unit),can save 50%-80% heat energy, reduce 45%-75% hot exhaust gas

3. Optional: Modularization printing function trolley unit, can achieve the production requirement of dry laminating, wet laminating, solvent-less laminating, hot melt laminating; can achieve the production requirement of thermal curing, UV curing, wave frequency curing uality intelligent management system (Patent technology), can achieve auto production quality intelligent management

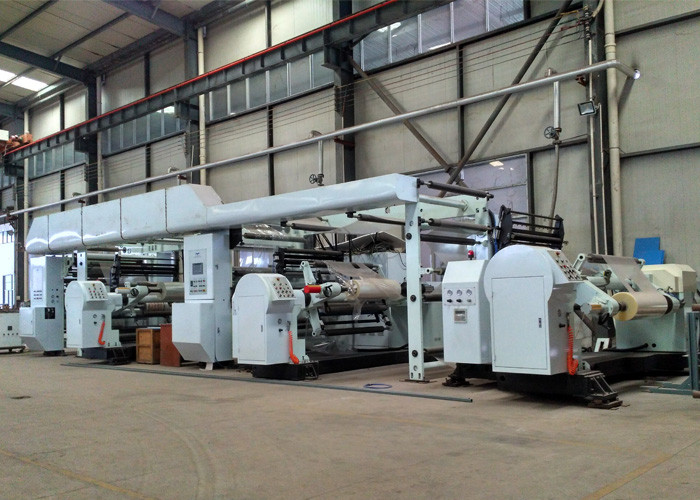

Fully Automatic High Speed Solventless Lamination Machine 0


Final Products:

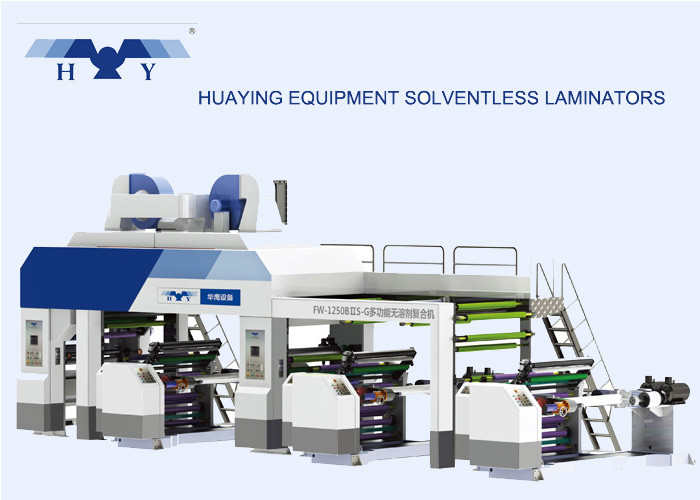

Fully Automatic High Speed Solventless Lamination Machine 1




Shantou Huaying Soft-Packing Equipment Plant Ltd.
Contacts :May Wu


TEL:0086 754 88226231

ADD:B2-B4, Block 9, Jinyuan Industrial Park, Chaoshan Road, Shantou, China
Post Code: 515064
Fax: 0086 754 88226282
