Three Core Units Heat Energy Recovery System Intelligent Simulation Control Unit
One set
One set
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: CHINA
Brand Name: HY
Certification: CE
Model Number: J3.2
High Light:

energy saving systems


energy efficient heating systems

Payment & Shipping Terms
Packaging Details: 30-60 days
Delivery Time: 30-60 days
Payment Terms: T/T, L/C
Supply Ability: Six sets/ moth
Model A Max. Speed: Max.180m/min
Model A Energy Saving Efficiency: ≥75%
Model B Max. Speed: Max.250m/min
Model B Energy Saving Efficiency: ≥70%
Model C Max. Speed: Max.338m/min
Model C Energy Saving Efficiency: ≥70%
Product Description

Energy saving system for dry/wet laminating machine, for laminating plastic film, paper, high efficiency, economic


Model A type B type C type
Max. speed Max.180m/min Max.250m/min Max.338m/min
Solvent type Solvent type/solvent free
Max. temperature 90℃ 90℃ 90℃
Energy saving efficiency ≥75% ≥70% ≥70%

Emission reduction efficiency


≥65% ≥65% ≥40%













Summarize and function:

Apply to the heating unit configuration of the wet/dry laminating machine dryer and the modification of the original equipment , the system is composed of three core units:

  1. High efficiency heat supply unit of dryer: high efficiency heat recovery unit + digital compressor heat pump

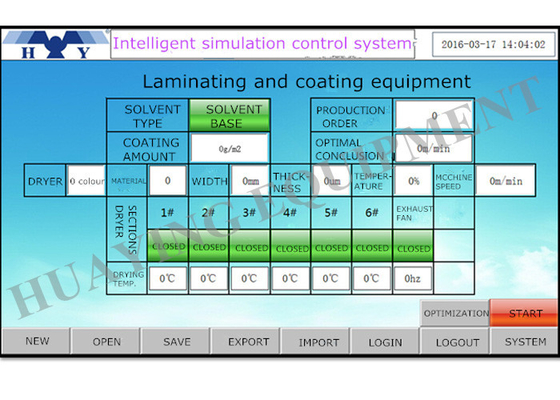

  2. Intelligent simulation control unit: dryer data simulation design + real time intelligent control
  3. Customer spot reconstruction and testing unit: equipment installation and testing technology + customer manufacturing technology


Core competition:


1. This is the 12th Five-Year Plan achievements in scientific research which made by Huaying company. It is successfully applied in energy saving and emission reduction in the dryer and heating system of the printing, laminating and coating equipment. Due to the achievements, the energy conservation and energy consumption can up to 65%-75% and reduction amount of the hot exhaust can emissions by 40%-65.

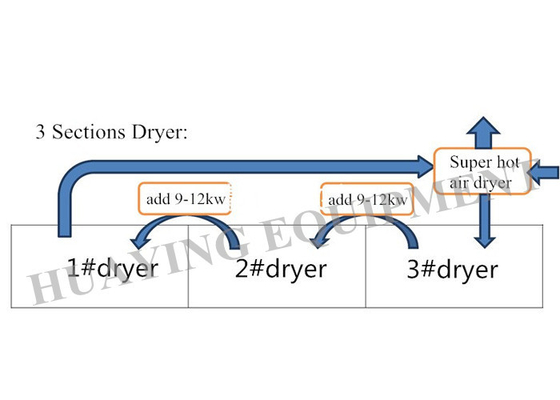

2. The system adopts high efficient heat recovery technology which can help to recycle of exhaust heat from the dryer. It achieves the effect of energy saving and consumption reduction.


3. The system equips with intelligent system simulation control unit, adopts oven system simulation software and process database. Due to this configuration, the chemical solvent or solvent free adhesive can achieve the targets of terminal product quality control, energy saving and emission reduction target under different climate environment.


Three Core Units Heat Energy Recovery System Intelligent Simulation Control Unit 0  Three Core Units Heat Energy Recovery System Intelligent Simulation Control Unit 1




Shantou Huaying Soft-Packing Equipment Plant Ltd.
Contact:Arik Chan

Add:B2-B4, Block 9, Jinyuan Industrial Park, Chaoshan Road, Shantou, China
Post Code: 515064

Tel.: 0086-754-88227042
Fax: 0086-754-88226282
