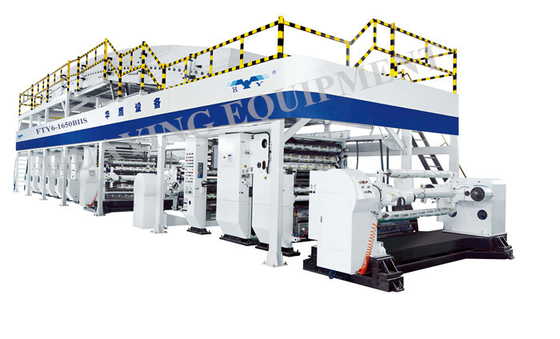

Steel / plastic Composite Material-Printing, Coating & Laminating line.max capacity 8.25*100²㎡/day, 11*100²㎡/day
Technical details:
| Name | Decoration film – printing/ composite production line | |
| Model | FTY.6-1250BⅡS-□ | FTY.6-1650BⅡS-□ |
| Suitable substrate | BOPET film, PVC sheet | |
| Thickness of substrate | Film :25-60μm；sheet:100-300μm | |
| Application area |
Home Decoration Material Sheet, Equipment Decoration Sheet, Terminal Building Decoration Sheet |
|
| Max. working speed |
8.25*100²㎡output per day (Max.90m/min ) |
11*100²㎡output per da (Max.90m/min )y |
| Optional components |
1. intelligent management and control unit 2.pre-coatng functional unit 3.trolley coating unit 4.curing and cooling unit 5.coating quality on-line detecting system 6.thermal energy recycle system |
|
| Name | Steel / plastic composite board—composite / cutting production line | |
| Model | QF.GS-1250BⅡS-□ | QF.GS-1650BⅡS-□ |
| Suitable substrate |
Printing composite rolled material Metal thin board rolled material |
|
| Thickness of substrate |
Printing composite material :120-350μm； Metal thin board:0.8-2mm |
|
| Max. working speed |
8.25*100²㎡output per day (Max.90m/min ) |
11*100²㎡output per day (Max.90m/min ) |
| Optional components |
1. intelligent management and control unit 2.pre-coatng functional unit 3.trolley coating unit 4.curing and cooling unit 5.coating quality on-line detecting system 6.thermal energy recycle system |
|
Summarize and function:
This series of machines is the technological achievements in scientific research and strategic cooperation that combine of Huaying & Academics & Polymer coating fluid. Now we already formed two products series which are steel plastic composite material printing/ coating/ laminating production line, rolled mental thin sheet coating multi-layers coating production line. The equipment can apply to the production of functional material such as steel plastic printed composite rolled material, aluminum foil rolled material, tinplate coated material.
Core competition:
Advanced performance:
Apply to printing, coating, laminating and converting process for high composite film of electrical appliance and home decoration. It has realized in-line continuous production for electrical appliance and home decoration.
Stability performance:
We have already formed a steady professional team that integrate the scientific research design, product manufacturing and sales service. We coagulate many resources and win the honor of “Best Product of China "
Coater Technology:
Reverse Gravure Coater for special solvent base/water base coating liquid. With hi-speed reverse transfer through gravure roller and chambered doctor blade it can ensure non-damaged particle in liquid during coating.
Key components:
Final products:
Contacts:
Shantou Huaying Soft-Packing Equipment Plant Ltd.
Contacts :ARIK
E-mail:hy@hyspe.com
TEL: 0086 754 88227042
ADD:B2-B4, Block 9, Jinyuan Industrial Park, Chaoshan Road, Shantou, China
Post Code: 515064
Fax: 0086 754 88226282
