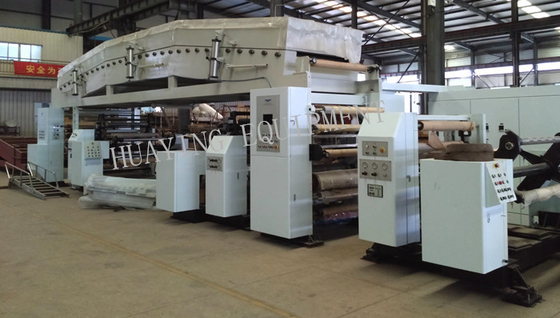

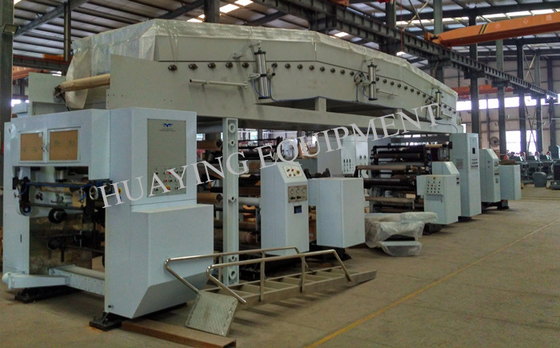

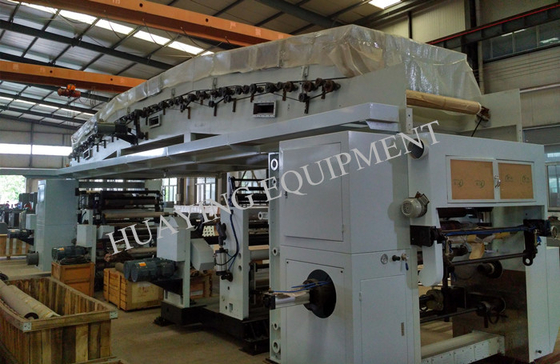

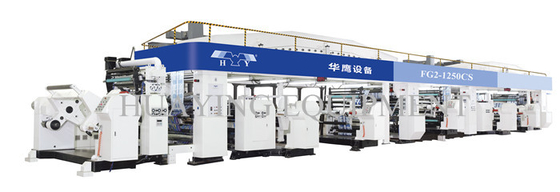

Dry lamination machine, working speed 338m/min, dual machine combo line, solvent laminating, solventless laminating
Techinal details
| Max. working speed | Max338m/min |
| Laminated width | 900-1250mm (1500BII:1150-1500mm) |
| Diameter of the roll | Max.φ800mm |
| Structure of the coating unit | Two rollers coating structure |
| Coating weight(dry) |
Solvent-based : 1.5-4g/㎡ Water-based:1 – 3.5 g/㎡ |
| Driven motor power | 180kw (not including oven energy source ) |
| Power supply | 380VAC±10%,50±2Hz,three-phase five-wire |
| Power of the heating supply (oven) | Electric energy supply, steam supply, thermal conductive oil supply |
| Size( L * W * H ) | 28000mm * 4200mm * 3500mm |
| Weight | 56T |
| Optional function |
1. other coating function trolley consumption reducing system |
Summarize and function
This series of machines is the first one to use the industry computer center control in China. It can accurately control the mulit-motor tension, logic action and coating weight. It already formed three products series including solvent type, solventless type, multi-function type. This series of machines can not only ensure the high quality laminated products but also can furthest reduce the customers’production cost by using the energy-saving, consumption reducing, safety working condition emulational design. The equipment can apply to the multi-layers continuous high speed laminating of the rolled material such as the various bidirectional/ unidirectional stretching plastic film etc.
Core competition
1. Advanced performance:
This series of machines is the 2002 year National Key New Product, National Level Torch Plan Project and Guangdong Province High New Tech Product.. After 15 years of continuous improvement and innovation, we have already formed the full line scientific research & design & precise manufacturing system and full line product specification & grade supply system.
2. Stability performance:
We have already formed a steady professional team that integrate the scientific research design, product manufacturing and sales service. We coagulate many years’comprehensive resources and win the honor of “Best Product of China ”.
3. Technical differences:
Two machines combo, three layers laminating in one time, changeable various functional coating trolley unit, it can achieve the exchanging of various production technics such as solvent type + solvent type / solventless type+ solventless type/ solvent type+ solventless etc; The heat energy consumption of the oven can be reduced 42% - 65 % and the exhaust waste gas of the oven can be reduced 45% - 66%. It is suitable for the laminating technics of water-based adhesive and chemical-based adhesive.
Key components
Final products
