Combo Line Lamination Coating Machine , Solvent Based Lamination Machine
One set
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: CHINA
Brand Name: HY
Certification: CE
Model Number: FG2-1250CS
High Light:

dry laminating Machine


automatic lamination machine

Payment & Shipping Terms
Packaging Details: 120-150 days/set
Delivery Time: 75-120 days
Payment Terms: L/C, T/T
Supply Ability: Two sets/ month
Size( L × W × H): 28000mm×4200mm×3500mm
Weight: 56T
Power Supply :: 380VAC±10%,50±2Hz,three-phase Five-wire
Power Of The Heating Supply (oven): Steam Supply, Electric Energy Supply, Thermal Conductive Oil Supply
Kinds Of Laminating: Dry Laminating, Solventless Laminating
Max. Working Speed: Max338m/min
Product Description

Dry method laminator machine, working speed 338m/min, dual machine combo line, solvent laminating, solventless laminating


Quick Details:


Kinds of laminating Dry laminating, Solventless laminating


Coating weight(dry)

Solvent-based : 1.5-4g/㎡

Water-based:1 -3.5 g/㎡

Laminated width 900-1250mm (1500BII:1150-1500mm)
Application area food packing, commodity packing, others packing
Max. working speed Max338m/min
Diameter of the roll Max.φ800mm
Structure of the coating unit Two rollers coating structure
Driven motor power 180kw(not including oven energy source )
Suitable material --- first substrate BOPP, laminated film(10-50μm), BOPA, BOPET
Suitable material --- second substrate CPP, paper(20-80μm), CPE, AL
Size( L × W × H) 28000mm×4200mm×3500mm
Weight 56T
Power supply : 380VAC±10%,50±2Hz,three-phase five-wire
Power of the heating supply (oven) steam supply, Electric energy supply, thermal conductive oil supply

Optional function



1. high-performance energy saving and consumption reducing system

2. other coating function trolley

3. intelligent production management system

4. substrate surface corona device

5. sleeve type impressed rubber rollers



























Summarize and function:

1. First one to use the industry computer center control in China.

2. Ensure the high quality laminated products and furthest reduce the customers’production cost.

3. Apply to the multi-layers continuous high speed laminating of the rolled material such as the various bidirectional/ unidirectional stretching plastic film etc.

4. Three products series including solvent type, solventless type, multi-function type.

5. Acurately control the mulit-motor tension, logic action and coating weight.


Core competition:

a) First unwinding and second unwinding shelfs are double work station rotary type,have photocell correct function.

b) Rewinding structure is double work staion rotary shelf type

c) Dry system: pneumatic peak three segments oven, every segment control in separate grade by intelligent thermol-controller constant control, suitable for different material, save the source, over guide roll initiative sychronors running

d) Coating roll press adjust freely by adjust value; coating blade is pneumatic press cluth, horizontal activity, divide glue device after coating

e) Film tension adpots tension folat roll and frequency converter auto control sychronors

f) Stronger steel plate for machine body


Combo Line Lamination Coating Machine , Solvent Based Lamination Machine 0


Final Products:

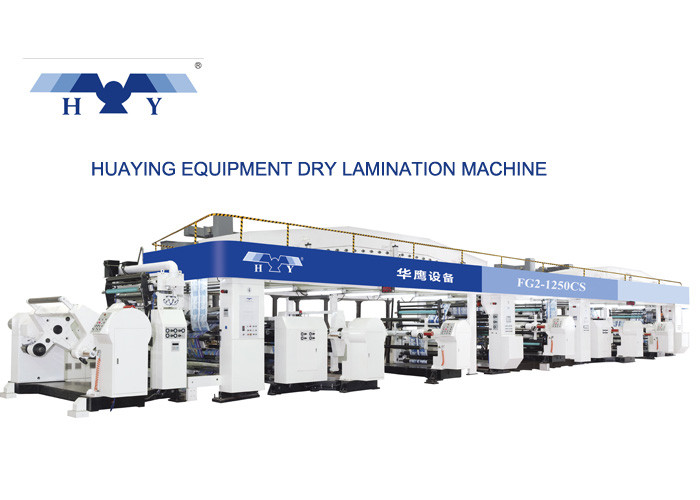

Combo Line Lamination Coating Machine , Solvent Based Lamination Machine 1




Shantou Huaying Soft-Packing Equipment Plant Ltd.
Contacts :May Wu

TEL:0086 754 88226231

ADD:B2-B4, Block 9, Jinyuan Industrial Park, Chaoshan Road, Shantou, China
Post Code: 515064
Fax: 0086 754 88226282
