Water-Based Dry Lamination Machine For Commodity Packing Energy Saving
One set
MOQ
Negotiation
Price
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: HY
Certification: CE
Model Number: FG-1250BIIS
High Light:

dry laminating Machine

,

wet lamination machine

Payment & Shipping Terms
Packaging Details: Wooden packaging
Delivery Time: 90-120 days/set
Payment Terms: L/C, T/T
Supply Ability: Two sets/ month
Specifications
Coating Weight(dry): Solvent-based: 1.5-4g/㎡ Water-based:1-3.5 G/㎡
Driven Motor Power: 90.2 Kw(not Including Oven Energy Source )
Max. Working Speed: Max 250m/min ( Can Chose CII Max338m/min)
Laminated Width: 900-1250mm (1500BII:1150-1500mm)
Size( L × W × H): 13500mm×4200mm×3500mm
Diameter Of The Roll: Max.φ800mm
Product Description

High speed dry laminating machine for plastic film /paper/aluminum foil, working speed 250m/min, Solvent-based, water-based -based ,water-based



Quick Details:



Kinds of laminating Dry laminating production technics
Suitable material --- first substrate BOPP, BOPET, BOPA, laminated film(10-50μm)
Suitable material --- second substrate CPP, CPE, AL, paper(20-80μm)
Application area food packing, commodity packing, others packing
Size( L × W × H) 13500mm×4200mm×3500mm
Weight 28T
Diameter of the roll Max.φ800mm
Power supply : 380VAC±10%,50±2Hz,three-phase five-wire
Power of the heating supply (oven) Electric energy supply, steam supply, thermal conductive oil supply
Structure of the coating unit Two rollers coating structure
Coating weight(dry)

Solvent-based: 1.5-4g/㎡

Water-based:1-3.5 g/㎡

Driven motor power 90.2 kw(not including oven energy source )
Max. working speed Max 250m/min ( can chose CII Max338m/min)
Laminated width 900-1250mm (1500BII:1150-1500mm)
Optional function

1. sleeve type impressed rubber rollers

2.coating seal spaced blade device

3. tension control system for dual-film of 2nd unwind device

4. fixed point and checking coating control system

5. high-performance energy saving and consumption reducing system

6. adhesive automatically viscosity control device

7. substrate surface corona device

























































     Summarize and function:

This machine is a new kind of advanced production designed for satisfying Century 21 market demands. We introduced into technology of foreign congeneric production, and integrated advanced international technology, adopted center computer control system (Mitsubishi PLC Japan). Operator controls the machine according to the information supplied by the computer. This kind high-velocity laminating machine is very practical. And it is wide used in two-layer or multi-player’s compounding of pellicle material for example: OPP, BOPP, PET, CPP, NYLON and paper, and at last became into a kind of super packing material.



      Core competition:



1. Coating and laminating of main machine are of double-shaft synchronous frequency conversion and feedback control.

2. Thickness of glue coating can be chosen by mesh of anilox roller and doctor blade.

3. Auto tension controller for three section constandt tension control.

4. Turret type unwinding station.pre-tension control for non-stop shaft exchange.

5. Unwinding station equipped with EPC system

6. Turrent type rewinding station ,pre-tension control for non-stop shaft exchange

7. Movable doctor blade with pneumatic back pressure.

8. Three independent constant temperature section drying system with heating tube and strong air fans for air in feeding and exhaust to ensure the full dryness of web.

9. Pneumatic lifting drying channel and operating platform for web passing .active synchronous running leading roller inside drying channel

10. Pre-heating before laminating ,water colling roller for laminated web.

11. Inflatable air shaft for web loading /unloading.

12.Three rollers nip laminating method,laminating pressure more even to ensure higher peel strength

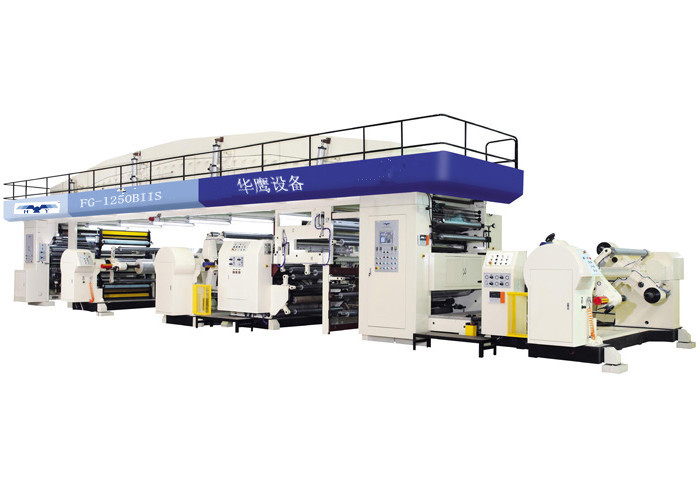

Water-Based Dry Lamination Machine For Commodity Packing Energy Saving 0



Final Products:

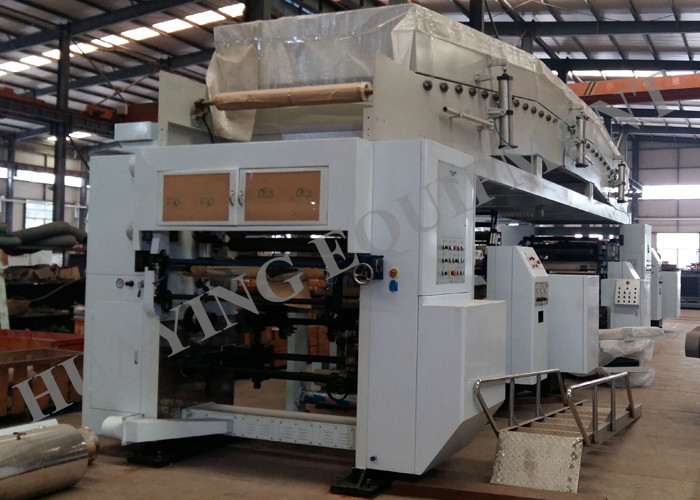

Water-Based Dry Lamination Machine For Commodity Packing Energy Saving 1



Contacts:



Shantou Huaying Soft-Packing Equipment Plant Ltd.
Contacts :May Wu

E-mail:hy@hyspe.com

TEL:0086 754 88226231

ADD:B2-B4, Block 9, Jinyuan Industrial Park, Chaoshan Road, Shantou, China
Post Code: 515064
Fax: 0086 754 88226282
