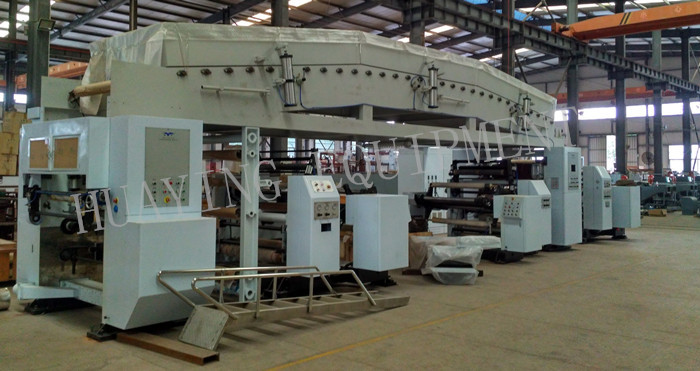

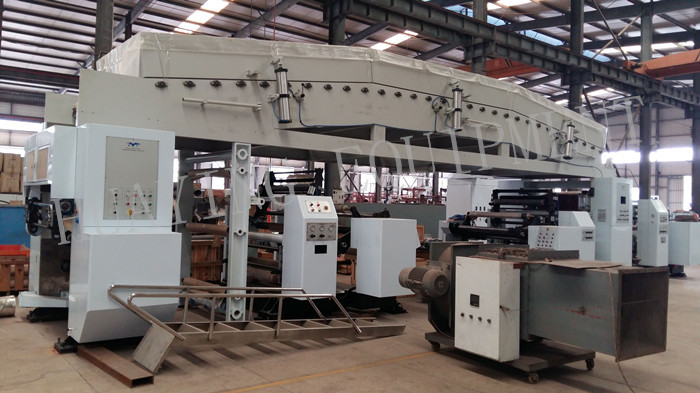

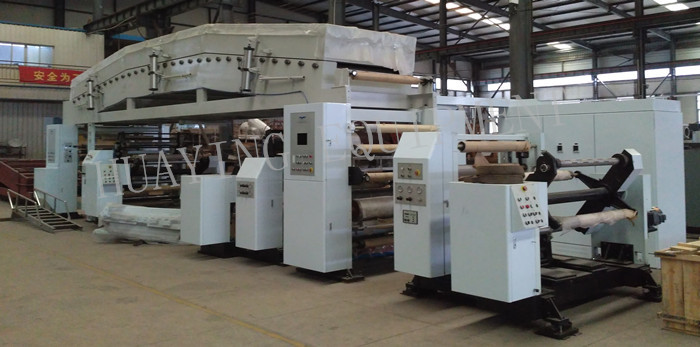

Food packing Dry Lamination Machine 185m/min Dual Laminating Function
One set
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: CHINA
Brand Name: HY
Certification: CE

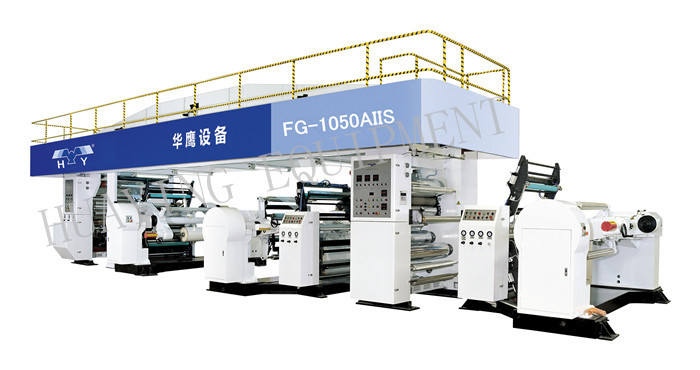

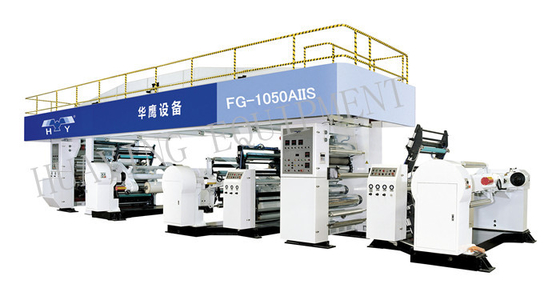

Model Number: FG-1050AIIS
High Light:

dry laminating Machine


wet lamination machine

Payment & Shipping Terms
Packaging Details: Wooden packaging
Delivery Time: 75-90 days/set
Supply Ability: Three sets/month
Max. Working Speed: Max185m/min
Laminated Width: 700-1050mm (1250AII:900-1250mm)
Diameter Of The Roll: Max.φ600mm
Structure Of The Coating Unit: Two Rollers Coating Structure
Product Description

Dry laminator, working speed 185m/min, dual laminating function, Solvent-based ,water-based


Techinal details:


 Kinds of laminating  Dry laminating production technics
 Suitable material --- first substrate  BOPP,BOPET,BOPA,laminated film(10-50μm)
 Suitable material --- second substrate  CPP,CPE,AL,paper(20-80μm)
 Application area  Food packing, commodity packing, others packing
 Coating weight(dry)

 Solvent-based: 1.5-4g/㎡

 Water-based:1 – 3.5 g/㎡

 Driven motor power  60kw(not including oven energy source )
 Power supply  380VAC±10%,50±2Hz,three-phase five-wire
 Power of the heating supply (oven)  Electric energy supply, steam supply, thermal conductive oil supply
 Size( L * W * H)  13500mm * 4500mm * 3300mm
 Weight  23 T
 Optional function

 1. coating seal spaced blade device
 2. adhesive automatically viscosity control device
 3. other functional coating unit
 4. fixed point and checking coating control system
 5. high-performance energy saving and

     consumption reducing system
 6. tension control system for dual-film of 2nd unwind device
 7. substrate surface corona device



Summarize and function:


    In China, this is the first application to use the industry computer center control. And the mulit-motor tension, logic action and coating weight are all under control. There are three products series which are solvent type, solvent free type, and multi-function type. With these series of machines, we can fully provide the high quality laminated products. What’s more, it can furthest reduce the customers’production cost by using the energy-saving, consumption reducing, safety working condition emulational design. The machine can use for the multi-layers continuous high speed laminating of the rolled materials, such as the various bidirectional/ unidirectional stretching plastic film etc.


Core competition:


1. Advanced performance:

    After 15 years of continuous improvement and innovation, we have already formed the full line scientific research & design & precise manufacturing system and full line product specification & grade supply system. What’s more, this series of machines is the National Level Torch Plan Project, 2002 year National Key New Product, and Guangdong Province High New Tech Product.


2. Technical differences:

    Inner layer laminated substrate is nearly 3-4mm/m; The heat energy consumption of the oven can be reduced 42% - 65 % and the exhaust waste gas of the oven can be reduced 45% - 66%. It is suitable for the laminating technics of water-based adhesive and chemical-based adhesive.


3.Stability performance:

    We always provide our customers the advanced equipment with stable performance and excellent service domestically and worldwide and have already formed a steady professional team that integrate the scientific research design, product manufacturing and sales service.


Key components:


Food packing Dry Lamination Machine 185m/min Dual Laminating Function 0


Food packing Dry Lamination Machine 185m/min Dual Laminating Function 1



Final products:

Food packing Dry Lamination Machine 185m/min Dual Laminating Function 2




Shantou Huaying Soft-Packing Equipment Plant Ltd.
Contacts :May Wu

TEL:0086 754 88226231

ADD:B2-B4, Block 9, Jinyuan Industrial Park, Chaoshan Road, Shantou, China
Post Code: 515064
Fax: 0086 754 88226282
