PLC System Control Solventless Laminating Machine , Solventless Laminator
One set
MOQ
Negotiation
Price
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: HY
Certification: CE
Model Number: FW-1250BIIS-G
High Light:

solvent based lamination machine

,

solventless laminating machine

Payment & Shipping Terms
Packaging Details: Wooden packaging
Delivery Time: 60-90 days/set
Payment Terms: L/C, T/T
Supply Ability: Three sets/ month
Specifications
Laminated Width: 900-1250mm (1050BII:1150-1500mm)
Suitable Material --- Second Substrate: CPP, CPE, AL, Paper(20-80μm)
Max. Working Speed: Max338m/min
Suitable Material --- First Substrate: BOPP, BOPET, BOPA, Laminated Film(10-50μm)
Product Description

Newest solventless laminators, working speed 338m/min, configured with solvent type laminated functional component



Quick Details:



Application area Food packing, Commodity packing, Others packing
Laminated width 900-1250mm (1050BII:1150-1500mm)
Max. working speed Max338m/min
Suitable material --- first substrate BOPP, BOPET, BOPA, Laminated film(10-50μm)
Suitable material --- second substrate CPP, CPE, AL, paper(20-80μm)
Driven motor power 56.3 kw (not including oven energy and fan )
Power supply : 380VAC±10%,50±2Hz,three-phase five-wire
Size( L × W × H) 13775mm×2550mm×3200mm
Weight 23T
Diameter of the roll Max.φ800mm
Coating trolley unit Five rollers trolley, two rollers trolley



Coating weight(dry)

Solventless type: 0.8-3g/㎡

Solvent type: 1.5-4 g/㎡



Optional function



1. Solvent type adhesive coating trolley device ( including the oven heating supply)

2. Fixed point and checking coating control system

3. Substrate surface corona device

4. Sleeve type impressed rubber rollers













































Production introduction:

(1) Life Time Professional Service For All Customers

(2) Quality Warranty Machines Supply Only.

(3) Fast & Good After Sales Service Within 24 Hours

(4) Factory Wholesale Price Supply





Core competition

(1) Solventless laminating & high speed 338m/min.

(2) Five roller coating system & Three roller laminating system

(3) Unwind/Rewind with photocell EPC,±1mm high precision control

(4) With Germany siemens servo motor control

(5) With auto cylinder control loading/unloading

(6) Siemens PLC System Control & Schneider Electric Parts & Omron Relay ...

(7) Laminating from plastic to plastic, paper to plastic, paper to paper

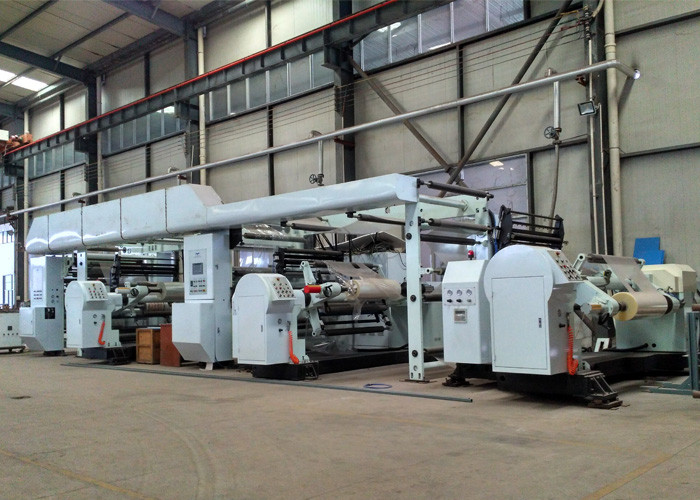

PLC System Control Solventless Laminating Machine , Solventless Laminator 0

Final Products:

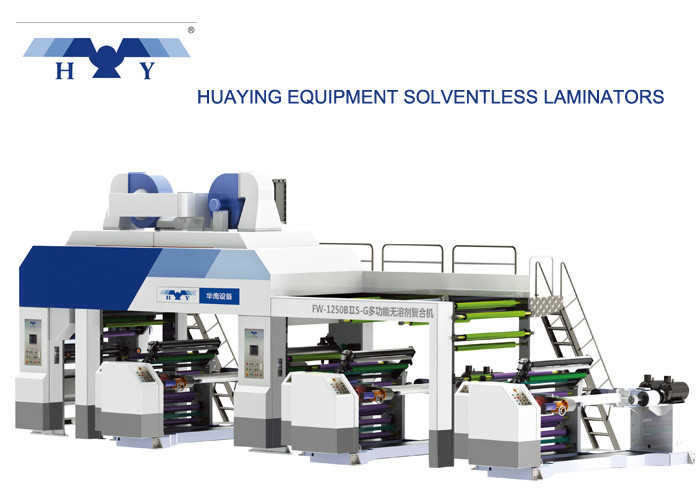

PLC System Control Solventless Laminating Machine , Solventless Laminator 1



Contact us:



Shantou Huaying Soft-Packing Equipment Plant Ltd.
Contacts :May Wu

E-mail:hy@hyspe.com

TEL:0086 754 88226231

ADD:B2-B4, Block 9, Jinyuan Industrial Park, Chaoshan Road, Shantou, China
Post Code: 515064
Fax: 0086 754 88226282
