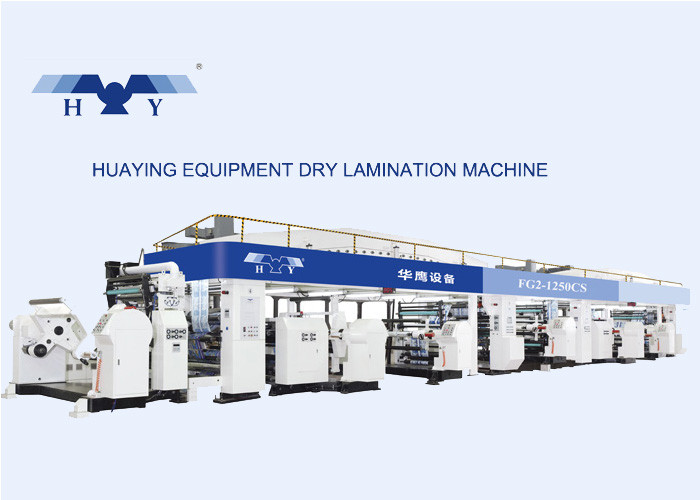

Industrial Multi-Layer Dry Laminating Machine Solventless CPE / AL
One set
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: CHINA
Brand Name: HY
Certification: CE
Model Number: FG2-1250CS
High Light:

automatic lamination machine


wet lamination machine

Payment & Shipping Terms
Packaging Details: Wooden packaging
Delivery Time: 120-150 days/set
Payment Terms: L/C, T/T
Supply Ability: Two sets/ month
Laminated Width: 900-1250mm(1500BII:1150-1500mm)
Max. Working Speed: Max338m/min
Diameter Of The Roll: Max.φ800mm
Structure Of The Coating Unit: Two Rollers Coating Structure
Power Of The Heating Supply (oven): Electric Energy Supply, Steam Supply, Thermal Conductive Oil Supply
Weight: 56T
Product Description

Multi-layer dry laminating Machine, working speed 338m/min, dual machine combo line, solvent laminating, solventless laminating


Quick Details:


Kinds of laminating Solventless laminating, Dry laminating
Laminated width 900-1250mm (1500BII:1150-1500mm)
Application area food packing, others packing, commodity packing
Max. working speed Max338m/min
Diameter of the roll Max.φ800mm
Power supply : 380VAC±10%,50±2Hz,three-phase five-wire
Power of the heating supply (oven) Electric energy supply, steam supply, thermal conductive oil supply
Structure of the coating unit Two rollers coating structure


Coating weight(dry)

Solvent-based : 1.5-4g/㎡

Water-based:1-3.5 g/㎡

Driven motor power 180kw(not including oven energy source )
Suitable material --- first substrate BOPA, laminated film(10-50μm), BOPP, BOPET
Suitable material --- second substrate

Paper(20-80μm)CPP, CPE, AL

Size( L × W × H) 28000mm×4200mm×3500mm
Weight 56T


Optional function



1. other coating function trolley

2. high-performance energy saving and consumption reducing     system

3. intelligent production management system

4. sleeve type impressed rubber rollers

5. substrate surface corona device


























Summarize and function:

1. First one to use the industry computer center control in China.

2. Ensure the high quality laminated products and furthest reduce the customers’ production cost.

3. Apply to the multi-layers continuous high speed laminating of the rolled material such as the various bidirectional/ unidirectional stretching plastic film etc.

4. Accurately control the multi-motor tension, logic action and coating weight.

5. Three products series including solvent type, solventless type, multi-function type.


Core competition:

1. Stability performance:

Dry laminating machine is suitable for plastic-plastic, aluminum foil-plastic, paper-plastic and other roll type material dry type laminating, high speed, superior performance, it is a perfect device, widely use in food, medical, daily neccessities and so on middle high level soft-packing material laminating processing.


2. Technical differences:

Two machines combo, three layers laminating in one time

Exhaust waste gas of the oven can be reduced 45% - 66%

Suitable for the laminating technics of water-based adhesive and chemical-based adhesive

Changeable various functional coating trolley unit

Heat energy consumption of the oven can be reduced 42% - 65 %


3. Advanced performance:

2002 year National Key New Product.

Province High New Tech Product.

National Level Torch Plan Project

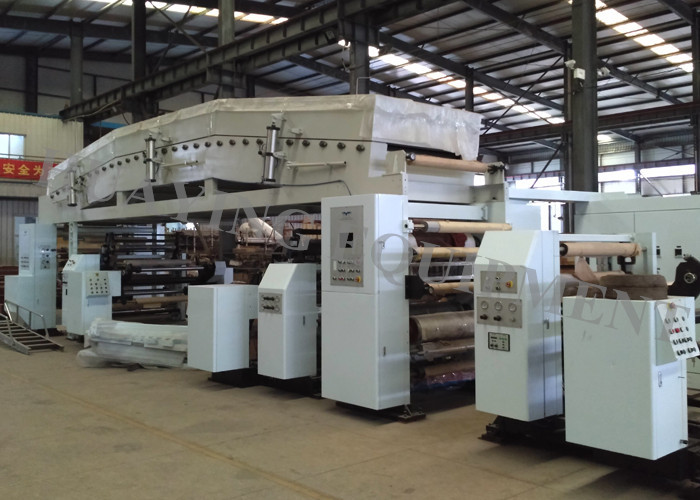

Key Components:


Industrial Multi-Layer Dry Laminating Machine Solventless CPE / AL 0

Final Products:


Industrial Multi-Layer Dry Laminating Machine Solventless CPE / AL 1




Shantou Huaying Soft-Packing Equipment Plant Ltd.
Contacts :May Wu

TEL:0086 754 88226231

ADD:B2-B4, Block 9, Jinyuan Industrial Park, Chaoshan Road, Shantou, China
Post Code: 515064
Fax: 0086 754 88226282
