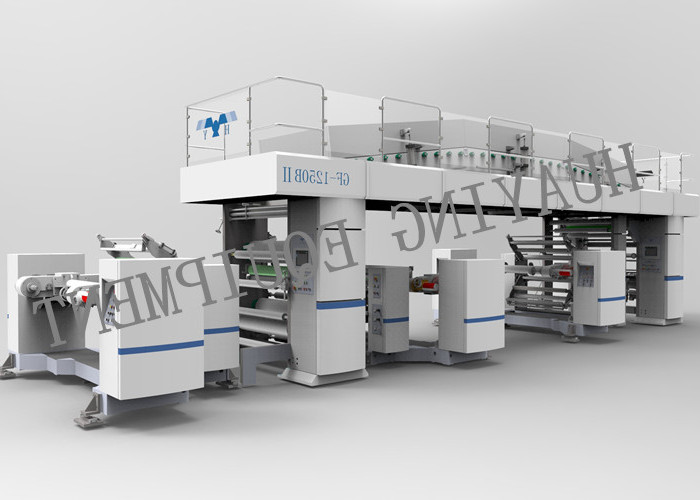

Dry laminating machine, working speed 250m/min, dual function,Solvent-based, water-based
Techinal details:
| Kinds of laminating | Dry laminating production technics |
| Suitable material --- first substrate | BOPP,BOPET,BOPA,laminated film(10-50μm) |
| Suitable material --- second substrate | CPP,CPE,AL,paper(20-80μm) |
| Laminated width | 900-1250mm (1500BII:1150-1500mm) |
| Diameter of the roll | Max.φ800mm |
| Structure of the coating unit | Two rollers coating structure |
| Coating weight(dry) |
Solvent-based: 1.5-4g/㎡ Water-based:1 – 3.5 g/㎡ |
| Driven motor power | 90.2 kw(not including oven energy source ) |
| Power supply | 380VAC±10%,50±2Hz,three-phase five-wire |
| Power of the heating supply (oven) |
Electric energy supply, steam supply, thermal conductive oil supply |
| Optional function |
1. coating seal spaced blade device reducing system |
Summarize and function:
This machine can not only ensure to make the high quality laminating film product, but also adopt the energy-saving and emission-reduction drying chamber simulation oven design technology, machine can largely lower customers’ production cost while ensuring high-quality lamination performance.
Main structural configuration :
1. lay-on follow-up roll device: composed of follow-up device, rubber roll, air tank and controller. Straight line guidance , driven by AC servo motor. The fix distance follow up the rubber roller is controlled by air tank when feeding material.
2. Auto-splicing & reel change: duplex turret structure, pre-motion of spare web keep at synchronization, automatic non-stop splicing for reel change, horizontal moving type dual cutter device.
3. Machine performs perfect speed synchronization during the working process. Tension control program inspect and automatically control the running information, and then transform to digital output shown on the screen.
Core competition:
1. Stability performance:
The structure of the whole machine has the logical design, high machining precision which can adopt to high speed production. In the same time, the control system of the whole machine has the complete function, high automatic degree and can be controlled by computer.
2. Advanced performance:
This series of machines is the 2002 year National Key New Product, National Level Torch Plan Project and Guangdong Province High New Tech Product.. After 15 years of continuous improvement and innovation, we have already formed the full line scientific research & design & precise manufacturing system and full line product specification & grade supply system.
3. Technical differences:
Inner layer laminated substrate is nearly 3-4mm/m; with non-stop automatic roll exchange and film feeding. The heat energy consumption of the oven can be reduced 42% - 65 % and the exhaust waste gas of the oven can be reduced 45% - 66%. It is suitable for the laminating technics of water-based adhesive and chemical-based adhesive. t-size: 10.0pt;mso-bidi-font-family:Calibri'>Advanced performance: This series of machines is the 2002 year National Key New Product, National Level Torch Plan Project and Guangdong Province High New Tech Product.. After 15 years of continuous improvement and innovation, we have already formed the full line scientific research & design & precise manufacturing system and full line product specification & grade supply system.
Key components:
Final products:
