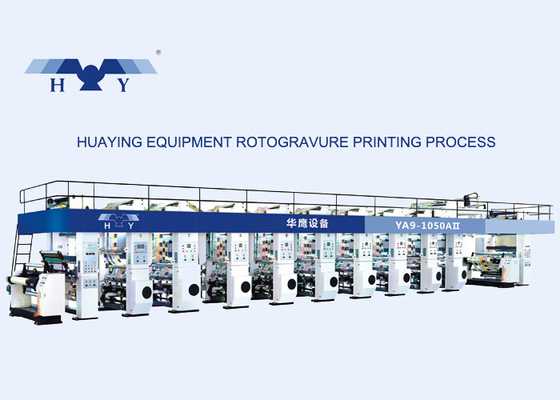

Computer Color Register Rotogravure Printing Machine Max Working Speed 185 m/min Solvent-based
One set
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: CHINA
Brand Name: HY
Certification: CE
Model Number: YA9-1050AIIW
High Light:

gravure printing machine


plastic printing machine

Payment & Shipping Terms
Packaging Details: Wooden packaging
Delivery Time: 45-120 days/set
Payment Terms: L/C, T/T
Supply Ability: Three sets/ moth
Suitable Material: BOPP, BOPET, BOPA , CPP, CPE, PVC
Thickness Of The Substrate: 10-60μm
Power Of The Main Machine: 115.5 K ( Not Including The Dry Heat Energy)
Power Supply: 380VAC±10%,50±2Hz,three-phase Five-wire
Printing Width: 700-1050mm (850AⅡ: 500-850mm / 1250AⅡ: 900-1250mm)
Application Area: Printing Lamination Film Product, Surface Printing Product, Transfer Printing Product
Product Description

Computer Color Register Gravure Press Machinery, 9 colors, max working speed 185 m/min ,solvent-based , water-based.


Quick Details:


Number of the printing color 9 colors ( there has 3-10 printing colors can be chosen)
Printing width 700-1050mm (850AⅡ: 500-850mm / 1250AⅡ: 900-1250mm)
Suitable material


Thickness of the substrate


Application area printing lamination film product, surface printing product, transfer printing product
Max. working speed 185 m/min (diameter of the printing cylinder:φ150mm)
Diameter of the roll Max.φ600mm( can chose the max.φ800mm)
Diameter of the printing cylinder φ120mm~φ280mm(L=376.9 mm~879.2 mm)
Kinds of the solvent solvent-based , water-based
Accuracy of the register ≤±0.1mm
Power of the main machine 115.5 k ( not including the dry heat energy)
Power supply 380VAC±10%,50±2Hz,three-phase five-wire
Power of the heating supply (oven) Electric energy supply, steam supply, thermal conductive oil supply
Size( L × W × H) 20000mm×4500mm×3800mm
Weight 45T

Optional function



1. printing unit servo driven

2. ink tray trolley

3. high-performance energy saving and consumption reducing system

4. UV printing unit, flexible printing unit

5.air floating reverse printing device

6.printing quality intelligent management system



























Summarize and function:


    This gravure printing machine is applicable to multicolor one time nonstop printing of the reel membrane materials with excellent printing performance, such as BOPP, PET, PVC, PE, aluminum foil, and reel paper. It is widely used in various kinds of high grade presswork


Performances and characteristics:


    The automatic color processing system of the machine can manage each unit to collocate microprocessor independently and can rectify the deviation rapidly and rightly. The main engine is used for frequency control. The releasing strain is commanded by a automatic strain controller and a magnetic powder controller. The collection of the reel is completed by automatic lasting strain dragging matched with moment DC electrical motor. It is double-position automatic spinning, pre-drive automatic cut and incising rolling. It can achievenonstop material exchange. It has pneumatic press system, pneumatic ink-shaving system, septum type pneumatic ink automatic cycle system, flatulence type handling axis, printing line speed and meter-counting display.


Core competition:

1. The main motor control, three section constant tension control

2. Shaftless and pnoumatic type lock-up. high-precision gear box transmission.

3. Double-cylinder heavy type scraper device.

4. Internal double working position turn over, high speed printing and automatic material feeding.

5. High efficiency thermal cycling wind, dryer heating, electric and steam etc.

6. Domestic brand vertical automatic register, static sreen display.


Key Components:


Computer Color Register Rotogravure Printing Machine Max Working Speed 185 m/min Solvent-based 0


Final Products:


Computer Color Register Rotogravure Printing Machine Max Working Speed 185 m/min Solvent-based 1
