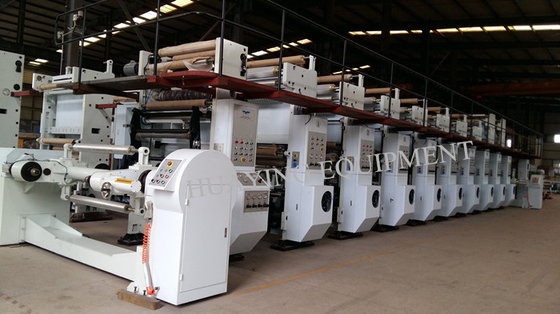

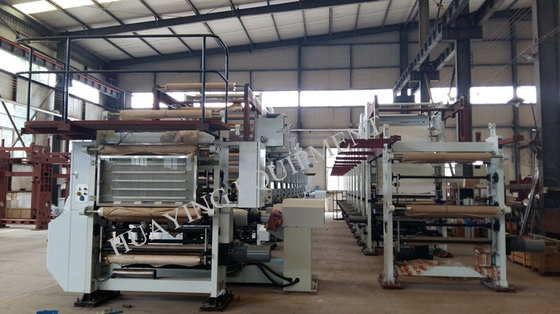

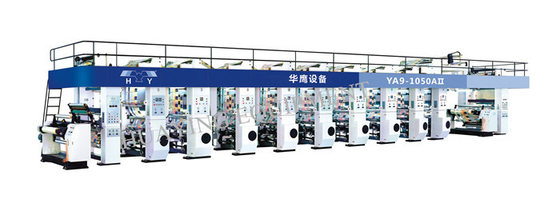

Rotogravure printing process, 9 colors, max working speed 185 m/min
Technical Details:
| Printing width | 700-1050mm (850AⅡ: 500-850mm / 1250AⅡ: 900-1250mm) |
| Suitable material | BOPP,BOPET,BOPA,CPP,CPE,PVC |
| Thickness of the substrate | 10-60μm |
| Application area |
printing lamination film product, surface printing product, transfer printing product |
| Max. working speed | 185 m/min (diameter of the printing cylinder:φ150mm) |
| Diameter of the roll | Max.φ600mm( can chose the max.φ800mm) |
| Diameter of the printing cylinder | φ120mm～φ280mm(L=376.9 mm～879.2 mm) |
| Accuracy of the register | ≤±0.1mm |
| Power of the main machine | 115.5 k ( not including the dry heat energy) |
| Power supply | 380VAC±10%,50±2Hz,three-phase five-wire |
| Power of the heating supply (oven) | Electric energy supply, steam supply, thermal conductive oil supply |
| Optional function |
1. printing unit servo driven reducing system |
Summarize and function:
This model adopts central control system and numeric software that is to realize the accurate control of the tension and logic action of servo motors. This unit is extracted advanced design concept from international printing machine so as to achieve excellent stability and perfect rigidity as well as structure compactness and elegancy. This unit adopts AC inverter motor of energy-saving and low-consumption to ensure perfect printing effect and match effective production requirement. The equipment can apply to the multi-color continuous high speed printing of the rolled material such as the various bidirectional/ unidirectional stretching plastic film etc.
Core competition:
1. Advanced performance:
This high-speed rotogravure printing machine made in 1995 was the China's first independent research at that time. It is the National Level Torch Plan Project and Guangdong Province High New Tech Product. After 20 years of continuous improvement and innovation, we have already formed the full line scientific research & design & precise manufacturing system and full line product specification & grade supply system. This series of machines can not only ensure the high quality printing products but also can furthest reduce the customers’production cost by using the energy-saving, consumption reducing, safety working condition emulational design.
2. Stability performance:
We have already formed a steady professional team that integrate the scientific research design, product manufacturing and sales service. We coagulate many years’comprehensive resources and win the honor of “Best Product of China ”.
3. Technical differences:
The testing standard of our printing machine can reach the parameter requirement of the Japan equipment. The heat energy of the drying chamber can be reduced 25% - 50% and the emission of heat waste gas can be reduced 15% - 25%. It is suitable for the printing technics of the water-based ink and chemical-based ink.
Key components:
Final products:
This machine is suitable for multi-color continuous high speed printing of the rolled material such as OPP,PET,CPP,PE,NYLON,glass paper, paper etc.
Contacts:
Shantou Huaying Soft-Packing Equipment Plant Ltd.
Contacts :May Wu
E-mail:hy@hyspe.com
TEL:0086 754 88226231
ADD:B2-B4, Block 9, Jinyuan Industrial Park, Chaoshan Road, Shantou, China
Post Code: 515064
Fax: 0086 754 88226282
