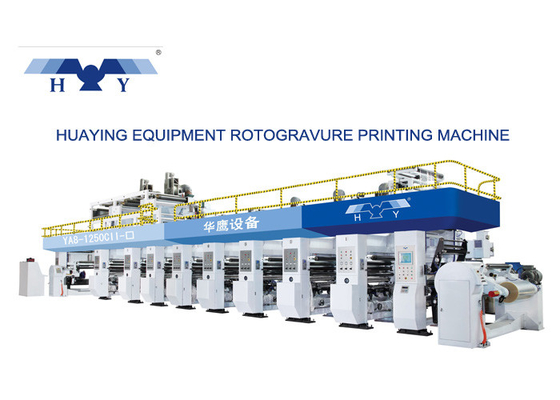

Computer gravure press , Gravure printing machine , Film printing machine, 8 colors, working speed faster than300 m/min
Quick Details:
| Number of the printing color | 8colors ( there has 3-10 printing colors can be chosen) |
| Printing width | 900-1250mm |
| Max. working speed | 338 m/min (diameter of the printing cylinder:φ150mm) |
| Kinds of the solvent | solvent-based , water-based |
| Application area | printing lamination film product, surface printing product, transfer printing product |
| Suitable material |
BOPET,BOPA,CPP,CPE |
| Thickness of the substrate |
10-60μm |
| Accuracy of the register | ≤±0.1mm |
| Diameter of the printing cylinder | φ150 mm～φ300 mm(L=471 mm～942 mm) |
| Power supply | 380VAC±10%,50±2Hz,three-phase five-wire |
| Power of the main machine | 165 kw ( not including the dry heat energy) |
| Diameter of the roll | Max.φ800mm( can choose the max. φ1000mm) |
| Power of the heating supply (oven) | Electric energy supply, steam supply, thermal conductive oil supply |
| Size( L × W × H) | 20200mm × 25200mm × 4450mm |
| Weight | 65 T |
|
Optional function
|
1. reset device of the printing unit blade three coordinate 2. ink viscosity automatically control detector 3. high-performance energy saving and consumption reducing system 4. UV printing unit, flexible printing unit 5. air floating reverse printing device 6. printing quality intelligent management system |
Product introduction:
The parts of transmission is adopted with gear structure with full sealing lubrication. The tension system is adopted with magnetic powder clutch controller, the parts of rewinding is adopted with torque motor. Winding and rewinding are both double working mechanisms to make the material complete with non-stop
Features:
1.The latest improved gear box,360 non-stopping registration device.
2. Movable type doctor blade, transverse reciprocating motion.
3. Closed type oven, automatic constant temperature system.
4. Side and up double drying oven system.
5. Unwinding and in feeding equipped with auto tension controller and magnetic powder brack.
6. Rewinding and out feeding adopt magnetic powder clutch to control the tension.
7. Turret type unwinding and rewinding mechanism, receiving and replacing material without stopping the machine.
8. Inflatable air shaft for unwinding/rewinding material loading.
9. Printing linear speed and meter indication .
10. Pneumatic printing impress roller and traction impress roller.
11. Pneumatic nip roller for in feeding and out feeding.
12. Main motor: electromagnetic speed regulation motor.
Final products:
Contacts:
Shantou Huaying Soft-Packing Equipment Plant Ltd.
Contacts :May Wu
E-mail:hy@hyspe.com
TEL:0086 754 88226231
ADD:B2-B4, Block 9, Jinyuan Industrial Park, Chaoshan Road, Shantou, China
Post Code: 515064
Fax: 0086 754 88226282
