9 Colours Rotogravure Printing Machine For Printing Lamination Film With Printing Unit Servo Driven
One set
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: CHINA
Brand Name: HY
Certification: CE
Model Number: YA9-1050AIIW
High Light:

gravure printing machine


plastic printing machine

Payment & Shipping Terms
Packaging Details: Wooden packaging
Delivery Time: 45-120 days/set
Payment Terms: L/C, T/T
Supply Ability: Three sets/ moth
Diameter Of The Roll: Max.φ600mm( Can Chose The Max.φ800mm)
Diameter Of The Printing Cylinder: φ120mm~φ280mm(L=376.9 Mm~879.2 Mm)
Weight: 45T
Power: 115.5 K ( Not Including The Dry Heat Energy)
Number Of The Printing Color: 9
Printing Width: 700-1050mm (850AⅡ: 500-850mm / 1250AⅡ: 900-1250mm)
Product Description

Rotogravure printing machinery, for printing lamination film , surface printing product , transfer printing product


Quick Details:


Number of the printing color 9 colors ( there has 3-10 printing colors can be chosen)
Printing width 700-1050mm (850AⅡ: 500-850mm / 1250AⅡ: 900-1250mm)
Suitable material


Thickness of the substrate


Max. working speed 185 m/min (diameter of the printing cylinder:φ150mm)
Application area printing lamination film product, surface printing product, transfer printing product
Solvent solvent-based , water-based
Accuracy of the register ≤±0.1mm
Diameter of the roll Max.φ600mm( can chose the max.φ800mm)
Diameter of the printing cylinder φ120mm~φ280mm(L=376.9 mm~879.2 mm)
Size( L × W × H) 20000mm×4500mm×3800mm
Weight 45T
Power 115.5 k ( not including the dry heat energy)
Power supply 380VAC±10%,50±2Hz,three-phase five-wire
Power of the heating supply (oven) Electric energy supply, steam supply, thermal conductive oil supply

Optional function



1. printing unit servo driven

2. ink tray trolley

3. high-performance energy saving and consumption reducing system

4. UV printing unit, flexible printing unit

5.air floating reverse printing device

6.printing quality intelligent management system




























Summarize and function:


    Machines in this series are applicable for continuous multi-color printing on rolling materialsin good printing performance such as cellophane, BOPP, PET, PVC, PE, aluminum foil, and paper, broadly applied for all types of super-quality printed matters.



Core competition:


1. Apply to the production technology requirement of chemical-base solvent and water-base solvent and       reserve the joint for digital ink jet printing unit

2. Dryer and heating supply system adopt computer simulation software design and series

    internal loop structure(Patent technology), configured with online intelligent control

    (Copyright unit),can save 45%-75% heat energy, reduce 40%-50% hot exhaust gas

3. Optional: Modularization printing function trolley unit, can achieve gravure printing, flexo printing, can         achieve changing the production size quickly and reduce the Production auxiliary time

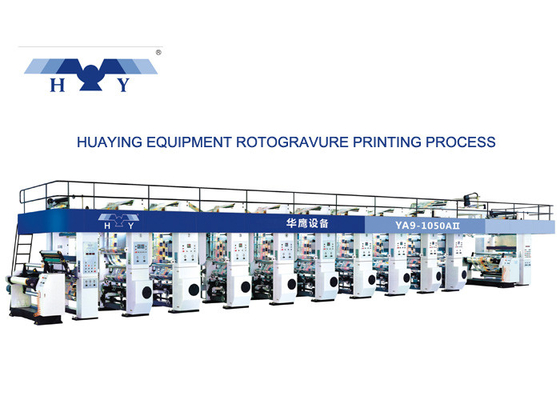

9 Colours Rotogravure Printing Machine For Printing Lamination Film With Printing Unit Servo Driven 0



Final Products:

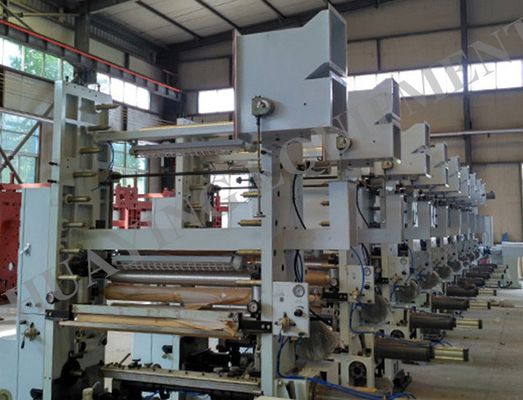

9 Colours Rotogravure Printing Machine For Printing Lamination Film With Printing Unit Servo Driven 1




Shantou Huaying Soft-Packing Equipment Plant Ltd.
Contacts :May Wu


TEL:0086 754 88226231

ADD:B2-B4, Block 9, Jinyuan Industrial Park, Chaoshan Road, Shantou, China
Post Code: 515064
Fax: 0086 754 88226282
