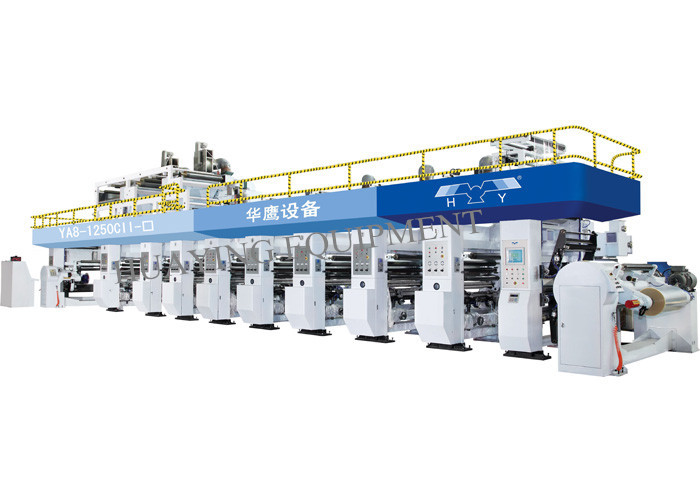

Rotogravure printing machine manufacturer , 8 colors, max working speed 338 m/min ,
chemical-based , water-based , shaftless (servo motor drive)
Technical Detais:
| Printing width | 900-1250mm (1050CⅡ:700-1050mm / 1500CⅡ: 1150-1500mm) |
| Application area | printing lamination film product, surface printing product, transfer printing product |
| Diameter of the roll | Max.φ800mm( can choose the max. φ1000mm) |
| Diameter of the printing cylinder | φ150 mm～φ300 mm(L=471 mm～942 mm) |
| Kinds of the solvent | solvent-based , water-based |
| Accuracy of the register | ≤±0.1mm |
| Power of the main machine | 165 kw ( not including the dry heat energy) |
| Power supply | 380VAC±10%,50±2Hz,three-phase five-wire |
| Power of the heating supply (oven) | Electric energy supply, steam supply, thermal conductive oil supply |
| Size( L * W * H ) | 20200mm * 25200mm * 4450mm |
| Weight | 65 T |
| Optional function |
1. reset device of the printing unit blade three coordinate reducing system |
Summarize and function:
In China, this series of machines is the first one to use the industry computer center control. It can accurately control the color code, logic action and mulit-motor. The machine absorbs the advanced design idea from foreign printing machines and has the excellent rigidity and running stability. This series of machines can ensure the high quality printing products as well as furthest reduce the customers’production cost by using the energy-saving, consumption reducing, safety working condition emulational design. The equipment can apply to the multi-color continuous high speed printing of the rolled material such as the various bidirectional/ unidirectional stretching plastic film etc.
Core competition:
1. Stability performance:
We have already formed a steady professional team that integrate the scientific research design, product manufacturing and sales service. We coagulate many years’comprehensive resources and win the honor of “Best Product of China “.
2. Advanced performance
This high-speed rotogravure printing machine made in 1995 was the China's first independent research at that time. It is the National Level Torch Plan Project and Guangdong Province High New Tech Product. After 20 years of continuous improvement and innovation, we have already formed the full line scientific research & design & precise manufacturing system and full line product specification & grade supply system.
3. Technical differences:
The testing standard of our printing machine can reach the parameter requirement of the Japan equipment. The heat energy of the drying chamber can be reduced 25% - 50% and the emission of heat waste gas can be reduced 15% - 25%. It is suitable for the printing technics of the water-based ink and chemical-based ink.
Key components:
Final products:
This machine is suitable for multi-color continuous high speed printing of the rolled material such as OPP,PET,CPP,PE,NYLON,glass paper, paper etc.
