Dry Lamination Machine Aluminum Foil
One set
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: CHINA
Brand Name: HY
Certification: CE
Model Number: FG-1250BIIS
High Light:

dry laminating Machine


automatic lamination machine

Payment & Shipping Terms
Packaging Details: Wooden packaging
Delivery Time: 90-120 days/set
Supply Ability: Two sets/ month
Application Area: Food Packing, Commodity Packing, Others Packing
Max. Working Speed: Max 250m/min ( Can Chose CII Max338m/min)
Laminated Width: 900-1250mm (1500BII:1150-1500mm)
Diameter Of The Roll: Max.φ800mm
Kinds Of Laminating: Dry Laminating Production Technics
Structure Of The Coating Unit: Two Rollers Coating Structure
Product Description

Dry type laminating machine for PET, CPP, CPE, Aluminum foil, Paper, working speed 250m/min, dual function,Solvent-based, water-based


Quick Details:


Kinds of laminating Dry laminating production technics
Suitable material --- first substrate BOPP, BOPET, BOPA, laminated film(10-50μm)
Suitable material --- second substrate CPP, CPE, AL, paper(20-80μm)
Application area food packing, commodity packing, others packing
Max. working speed Max 250m/min ( can chose CII Max338m/min)
Laminated width 900-1250mm (1500BII:1150-1500mm)
Diameter of the roll Max.φ800mm
Structure of the coating unit Two rollers coating structure
Coating weight(dry)

Solvent-based: 1.5-4g/㎡

Water-based:1-3.5 g/㎡

Driven motor power 90.2 kw(not including oven energy source )
Power supply : 380VAC±10%,50±2Hz,three-phase five-wire
Power of the heating supply (oven) Electric energy supply, steam supply, thermal conductive oil supply
Size( L × W × H) 13500mm×4200mm×3500mm
Weight 28T
Optional function

1. coating seal spaced blade device

2. adhesive automatically viscosity control device

3. sleeve type impressed rubber rollers

4. fixed point and checking coating control system

5. high-performance energy saving and consumption reducing system

6. tension control system for dual-film of 2nd unwind device

7. substrate surface corona device





























Summarize and function:

1. New kind of advanced production designed for satisfying Century 21 market demands.

2. Introduced into technology of foreign co generic production.

3. Integrated advanced international technology, adopted center computer control system.

4. Operator controls the machine according to the information supplied by the computer.

5. Wide used in two-layer or multi-player’s compounding of pellicle material.


Core competition

a) Text man-machine interface operation

b) Double work station rotary unwinding and rewinding shelf, auto receiving without stop in rewinding

c) Photocell correct function in first unwinding and second unwinding.

d) Dry system: pneumatic cling three segment oven, every segment control by intelligent thermol- controller constant control, cycle air device, over guide roll transmission by independent frequency motor .

e) Ceramic anliox is shaftless, load and unload quickly,easy to operate

f) Ceramic anliox blade is pneumatic back press structure, left-right move type.

g) Laminating roll hot-oil heat type options:inside heat type ,outside heat type

h) Film running tension adopt four motor synchronous closed loop constant tension device, low friction cylinder of tension float roll, ultra-low friction cylinder are all japan (tengcang)brand.

i) Atmosphere appearance, human loader, hallway, light, let user easy to use, relax and happy


Key technology advantage:

1. Apply to the technology requirement that chemical-base, water-base, solvent-less coating and laminating, and can support the order of multi-machine.

2. Dryer and heating supply system adopt computer simulation software design and series internal loop structure(Patent technology), configured with online intelligent control (Copyright unit),can save 50%-80% heat energy, reduce 45%-75% hot exhaust gas

3. Optional: Modularization printing function trolley unit, can achieve the production requirement of dry laminating, wet laminating, solvent-less laminating, hot melt laminating; can achieve the production requirement of thermal curing, UV curing, wave frequency curing

uality intelligent management system (Patent technology), can achieve auto production quality intelligent management

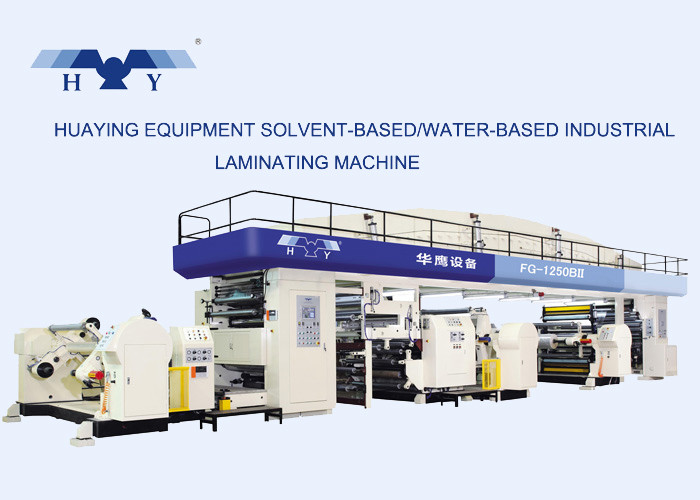

Dry Lamination Machine Aluminum Foil 0


Final Products:

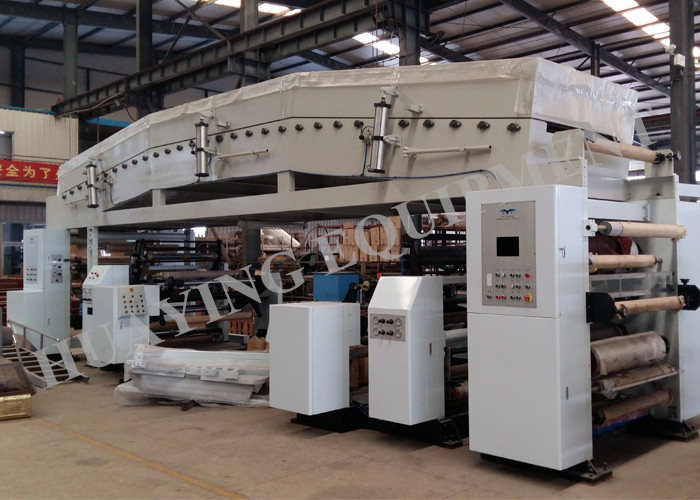

Dry Lamination Machine Aluminum Foil 1





Shantou Huaying Soft-Packing Equipment Plant Ltd.
Contacts :May Wu


TEL: 0086 754 88226231

ADD:B2-B4, Block 9, Jinyuan Industrial Park, Chaoshan Road, Shantou, China
Post Code: 515064
Fax: 0086 754 88226282
