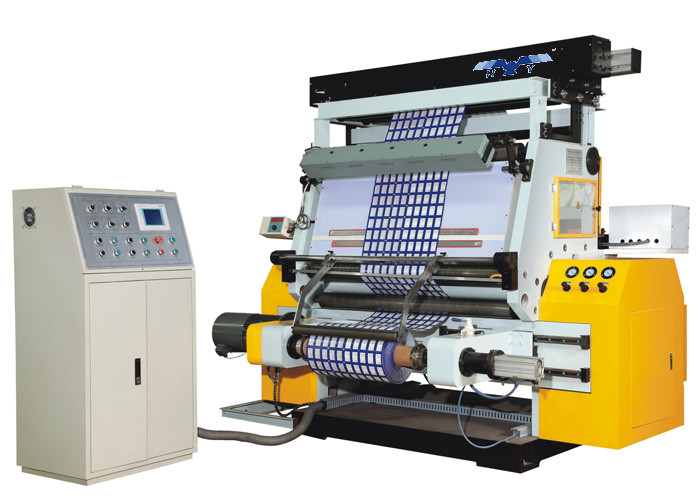

High quality rewinder and inspector machine for printing products, max working speed 338 m/min, can configure with laser cutting device and digital ink-jet device
Quick Details:
| Width of the roll | 600-1250mm / 1650BII:1000-1650mm |
| Thickness of the substrate | Printing film: 0.015-0.15mm |
| Visual inspecting device | CCD camera device |
| Max. working speed | Ma x.338 m/min (when 50HZ) |
| Range of the tension control | 3 – 13.5 kg / 1650BII:4.5 – 17.5 kg |
| Control system |
computer automatically image analysis system; PLC main machine data control system |
| Diameter of the roll |
Φ 800 mm(can chose Φ1000 mm) |
| Size ( L × W × H) |
2600mm×2800mm×1850mm |
|
Power |
17KW / 1650BII:22KW( AC servo motor drive ) |
| Requirement of the power | AC 380±10% three-phase four-wire |
| Optional function |
1. others 2. off-line quality analysis management platform |
Summarize and function:
1. Accurately control the mulit-motor tension, logic action and CCD printing quality inspection.
2. First one to use the industry computer center control in China.
3. Furthest increase the production efficiency by using the CCD camera, image analysis, defective products showing, reset accurately etc.
4. Apply to the continuously production of the various kinds of the rolled material which be printed and coating image be inspected.
Core competition:
1. Unwind & Rewind units are equipped with movable slide carriage and pneumatic shaft-less tip tone type chuck for fixation of material reel as well as safe guard device, to obtain the easy and highly efficient operation even one worker enough.
2. Control system is by the means of menu selection of touch screen to set the working speed, running tension, reel diameter, reel length, defect memory, rewind restoration, stroboscope, film-broke stopped and size modification of paper core etc., which is easy for operation and control.
3. Deviation correction system for unwind use microprocessor control with convenient man-machine operation. Implementation pare use low friction linear motional bearing with action flexibility and stability.

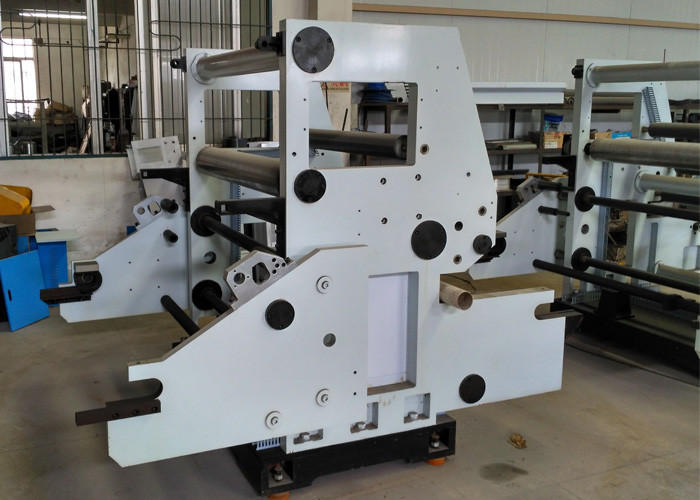

4. The whole machine is designed with compact structure and high stability. The base and wall frame adopts integrated foundry structure taking on the features of high intensity and rigidity to ensure excellent stability during operation process.
