PLC Data Control Inspection Rewinding Machine For Soft-packaging Material
One set
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: CHINA
Brand Name: HY
Certification: CE
Model Number: FJ-1050AII
High Light:

auto inspection machine


label inspection machine

Payment & Shipping Terms
Packaging Details: Wooden packaging
Delivery Time: 45-60 days
Payment Terms: L/C, T/T
Supply Ability: 4 sets/month
Thickness Of The Substrate: Printing Film: 0.035-0.15mm
Max. Working Speed: Ma X.250 M/min (when 50HZ)
Width Of The Roll: 400-1050 Mm
Diameter Of The Roll: Φ600 Mm(can Chose Φ800 Mm)
Visual Inspecting Device: Fixed Stroboscope
Control System: PLC Data Control
Product Description

Inspecting and machine for soft-packaging material, speed 250 m/min, can configure with digital ink-jet device and laser cutting device


Quick Details:


Thickness of the substrate Printing film: 0.035-0.15mm
Max. working speed Ma x.250 m/min (when 50HZ)
Width of the roll 400-1050 mm
Diameter of the roll

Φ600 mm(can chose Φ800 mm)

Visual inspecting device Fixed stroboscope
Control system PLC data control


Probably 12 kw( AC frequency inverter motor drive)
Size ( L × W × H)


Requirement of the power AC 380±10% three-phase four-wire
Range of the tension control 3 - 12 kg
Optional function

1. CCD inspecting device

2. computer automatically image analysis system
















       Summarize and function:

1. This unit is a kind of rewind & inspecting equipment with high-precision and high-sensitivity.

2. Available for quality inspection of rolled film or rolled paper (paper weight under 90g/m2) after printing or coating process,

3. Used for the rewind execution of the rolled material.

4. First one to use the industry computer center control in China.

5. Accurately control the multi-motor tension, logic action and CCD printing quality inspection.

6. Apply to the continuously production of the various kinds of the rolled material which be printed and coating image be inspected.


Core competition

       1. Adopted PLC control, man-machine interface operation and Chinese-English display version and

           tension & speed control synchronization adopting closed-loop AC inverter control system,

       2. Reach the standard of the coordinate equipments aboard.

       3. The inspecting tolerance of the setting can reach 100%.

       4. The accuracy of the speed synchronous running can reach 0.02%;

       5. Configured with outline image analysis platform.

       6. The total guide rollers to be aluminum alloy treated on the surface are designed with small torsion structure to maintain the synchronization between film running speed and roller rotating speed for protection of the film material.

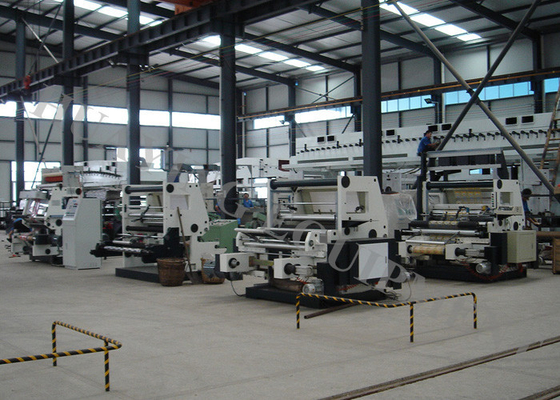

PLC Data Control Inspection Rewinding Machine For Soft-packaging Material 0


     Final products:

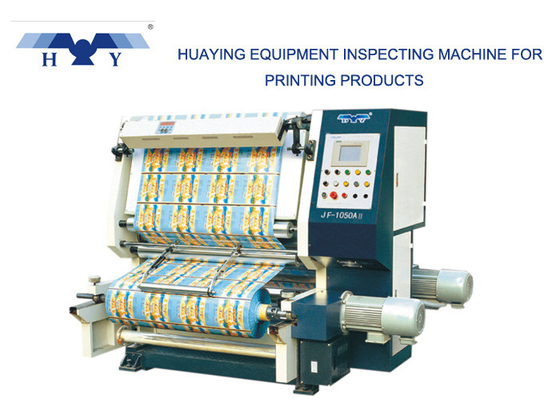

PLC Data Control Inspection Rewinding Machine For Soft-packaging Material 1






Shantou Huaying Soft-Packing Equipment Plant Ltd.
Contacts :May Wu
TEL:0086 754 88226231
ADD:B2-B4, Block 9, Jinyuan Industrial Park, Chaoshan Road, Shantou, China
Post Code: 515064
Fax: 0086 754 88226282
