Fixed Stroboscope Inspection Rewinding Machine For Printing Products Width Of The Roll 80-450mm
One set
MOQ
Negotiation
Price
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: HY
Certification: CE
Model Number: FJ-450AII
High Light:

auto inspection machine

,

print inspection machine

Payment & Shipping Terms
Packaging Details: Wooden packaging
Delivery Time: 45-60 days
Payment Terms: L/C, T/T
Supply Ability: 4 sets/month
Specifications
Width Of The Roll: 80-450mm
Thickness Of The Substrate: Printing Film: 0.015-0.15mm
Max. Working Speed: Ma X.185 M/min (when 50HZ)
Range Of The Tension Control: 1.5 - 6 Kg
Diameter Of The Roll: Φ450 Mm
Inspect Method: Fixed Stroboscope
Product Description

Rewinder and Inspector for printing products, speed 185 m/min, can configure with laser cutting and digital ink-jet device



Quick Details:



Width of the roll

80-450mm

Thickness of the substrate Printing film: 0.015-0.15mm
Max. working speed Ma x.185 m/min (when 50HZ)
Range of the tension control 1.5 - 6 kg
Diameter of the roll

Φ450 mm

Inspect method Fixed stroboscope
Control system PLC data control
Power Probably 7 kw( AC frequency inverter motor drive)
Requirement of the power AC 380±10% three-phase four-wire
Size ( L × W × H)

1400mm×1400mm×1600mm

Optional function

1. CCD inspecting device

2. computer automatically image analysis system































Summarize and function:

This machine is used to check, rewind and cut all kinds of roll materials such as BOPP, PET, CPP and PVC.



Feature:

1. Imported PLC integrated control is used in electrical control system, man-made is carried out by touch screen, Set and display working parameters according to the requirements from different products.

2. Rewinder and unwinder adopts vector frequency inverter , rewinding diameter calculated by PLC to realize automatic tension control

3. Non-shaft pneumatic unwinding and rewinding, The width can be adjustable via electric drive.

4. Automatic stroboscope to observe printing images is equipped in the system. If there is any defects saw by eyes, press the button of defects, the machine will automatically go back to defect image.

5. Unwinder has web guide system

6. Air exhausting device for waste is adopted

7. The system has meter counting , roll diameter calculate , automatic machine stop when stress fracturing material etc .

8. The system has perfect integration design with machine , electricity and pneumatic, and take complete safety protective measures

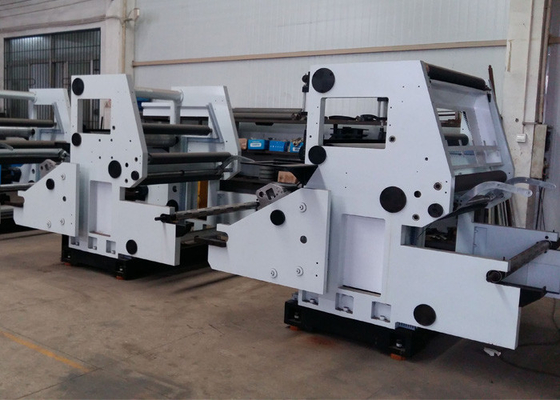

Fixed Stroboscope Inspection Rewinding Machine For Printing Products Width Of The Roll 80-450mm 0



Final products:

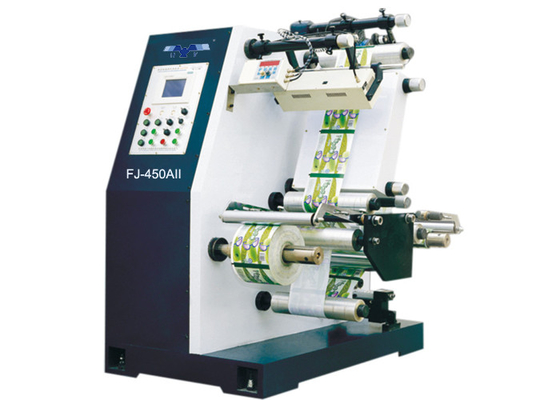

Fixed Stroboscope Inspection Rewinding Machine For Printing Products Width Of The Roll 80-450mm 1

Contacts:



Shantou Huaying Soft-Packing Equipment Plant Ltd.
Contacts :May Wu
E-mail:hy@hyspe.com
TEL:0086 754 88226231
ADD:B2-B4, Block 9, Jinyuan Industrial Park, Chaoshan Road, Shantou, China
Post Code: 515064
Fax: 0086 754 88226282
