PET/PE/CPP Inspection Rewinding Machine With Shaft-Free Core Adjustment Width
One set
One set
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: CHINA
Brand Name: HY
Certification: CE
Model Number: FJ-1050AII
High Light:

label inspection machine


print inspection machine

Payment & Shipping Terms
Packaging Details: Wooden packaging
Delivery Time: 45-60 days
Payment Terms: L/C, T/T
Supply Ability: 4 sets/month
Range Of The Tension Control: 3 - 12 Kg
Size ( L × W × H): 2000mm×2300mm×1900mm
Control System: PLC Data Control
Visual Inspecting Device: Fixed Stroboscope
Requirement Of The Power: AC 380±10% Three-phase Four-wire
Power: Probably 12 Kw( AC Frequency Inverter Motor Drive)
Product Description

Rewinder machine for printing products, Inspecting machine, inspector, max working speed 250 m/min


Quick Details:


Width of the roll 400-1050 mm
Thickness of the substrate Printing film: 0.035-0.15mm
Diameter of the roll

Φ600 mm(can chose Φ800 mm)

Max. working speed Ma x.250 m/min (when 50HZ)


Probably 12 kw( AC frequency inverter motor drive)
Requirement of the power AC 380±10% three-phase four-wire
Visual inspecting device Fixed stroboscope
Control system PLC data control
Size ( L * W * H)


Range of the tension control 3 - 12 kg
Optional function

1. CCD inspecting device

2. computer automatically image analysis system
















Summarize and function:

Application offilm inspection machine.This machine is suitable for BOPP, PET,PE, CPP, PVC and combined film and paper with same properties.



Features of film inspection machine with slitting:


1.The complete machine is equipped with imported PLC, and with a touch screen and man-machine interface in.

2. The unwinding transmission is governed by a frequency inverter vector adjusting vector motor, and PLC can automatically calculate the unwinding diameter, which can achieve the unwinding tension controlling constantly.

3. The traction transmission adopts frequency vector inverter adjusting vector motor; achieving constantly controlling the linear speed.

4. The rolling transmission is driven by a vector frequency motor and floating roller system and PLC can automatically calculate the unwinding diameter, achieving the unwinding tension conical controlling. Adopting floating roller to control tension that can real achieve the rolling of zero tension, to solve the problem of printing picture inverse adhibit and material strengthen because of the heavy tension.

5. The system is equipped with an auto flasher in order to observe the printing patterns. If the printing defects of the printing patterns are observed in eyes, please press the button to automatically return to the defect point.

6. The system can calculate the meters, measure the roller diameter, protect the machine when the feeding material roller becomes smallest and the collecting roller becomes largest, and protect the machine when it is short of materials.

7. The rewinding and unwinding device adopts shaft-free core (also called air shaft feeding), which is feed material through clipping closely by a thread rod, and the width adjustment is done electrically as well.

8. The edge correcting device is static with the movement routine ranging to 120mm.

9.It can install slitting device.

10. The design of this machine is integrated the electric, mechanical, and pneumatic technology, and with a complete security protecting device. running speed and roller rotating speed for protection of the film material.

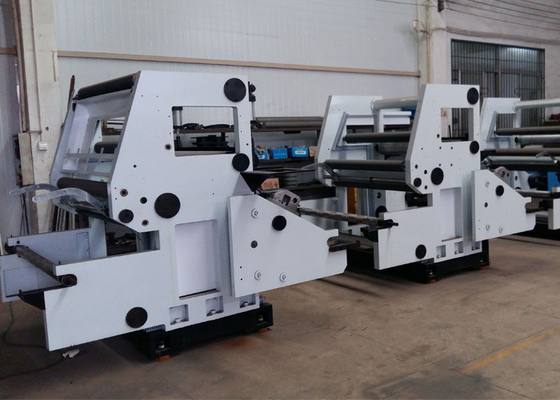

PET/PE/CPP Inspection Rewinding Machine With Shaft-Free Core Adjustment Width 0

Final Products:

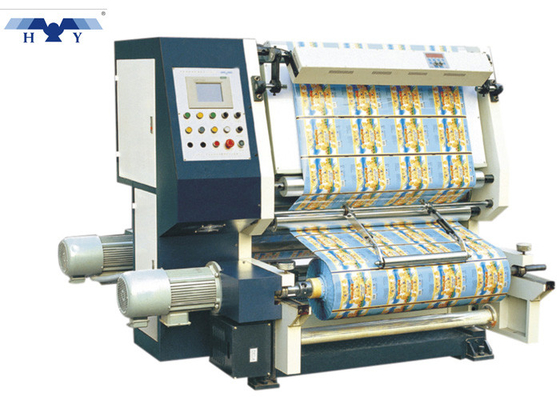

PET/PE/CPP Inspection Rewinding Machine With Shaft-Free Core Adjustment Width 1
