Deviation Correction System Label Inspection Machine With CCD Camera Device
One set
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: HY
Certification: CE
Model Number: FJ-1250BII
High Light:

label inspection machine


print inspection machine

Payment & Shipping Terms
Packaging Details: Wooden packaging
Delivery Time: 45-60 days
Supply Ability: 4 sets/month
Thickness Of The Substrate: Printing Film: 0.015-0.15mm
Max. Working Speed: Ma X.338 M/min (when 50HZ)
Range Of The Tension Control: 3 – 13.5 Kg / 1650BII:4.5 – 17.5 Kg
Diameter Of The Roll: Φ800 Mm (can Chose Φ1000 Mm)
Product Description

Rewinder inspector machine for printing products, max working speed 338 m/min, can configure with laser cutting device and digital ink-jet device


Technial details:


 Width of the roll  600-1250mm /  1650BII:1000-1650mm
 Visual inspecting device  CCD camera device
 Control system  computer automatically image analysis system;
 PLC main machine data control system
 Power  17KW / 1650BII:22KW( AC servo motor drive )
 Requirement of the power  AC 380±10% three-phase four-wire
 Size ( L  *  W  *  H )  1650BII:2600mm * 2800mm * 1850mm
 Optional function  1. others
 2. off-line quality analysis management platform



Summarize and function:

     This series of machines is the first one to use the industry computer center control in China. It can accurately control the mulit-motor tension, logic action and CCD printing quality inspection. Now we already formed two grades series. This series of machines can not only ensure the high-speed running but also can furthest increase the production efficiency by using the CCD camera, image analysis, defective products showing, reset accurately etc. The equipment can apply to the continuously production of the various kinds of the rolled material which be printed and coating image be inspected.


Core competition:


1. Control system is by the means of menu selection of touch screen to set the working speed, running tension, reel diameter, reel length, defect memory, rewind restoration, stroboscope, film-broke stopped and size modification of paper core etc., which is easy for operation and control.


2. Deviation correction system for unwind use microprocessor control with convenient man-machine operation. Implementation pare use low friction linear motional bearing with action flexibility and stability.


3. Unwind & Rewind units are equipped with movable slide carriage and pneumatic shaft-less tip tone type chuck for fixation of material reel as well as safe guard device, to obtain the easy and highly efficient operation even one worker enough.


4. The whole machine is designed with compact structure and high stability. The base and wall frame adopts integrated foundry structure taking on the features of high intensity and rigidity to ensure excellent stability during operation process.


Key components:

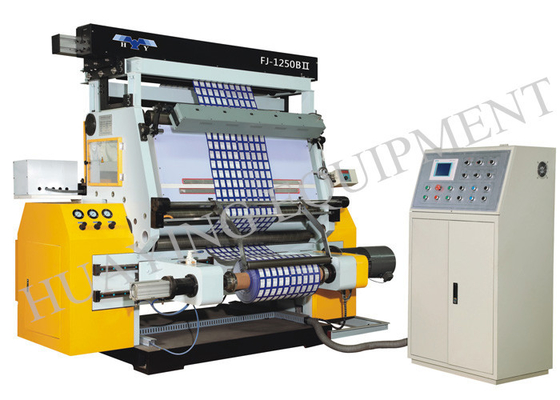

Deviation Correction System Label Inspection Machine With CCD Camera Device 0

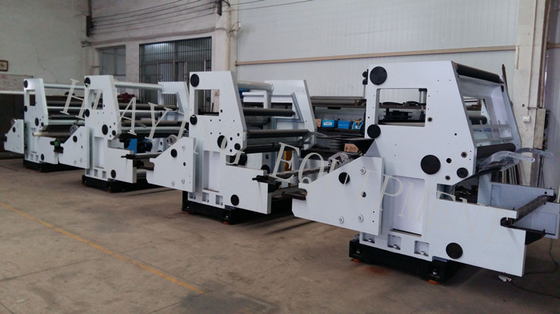

Deviation Correction System Label Inspection Machine With CCD Camera Device 1



Final products:

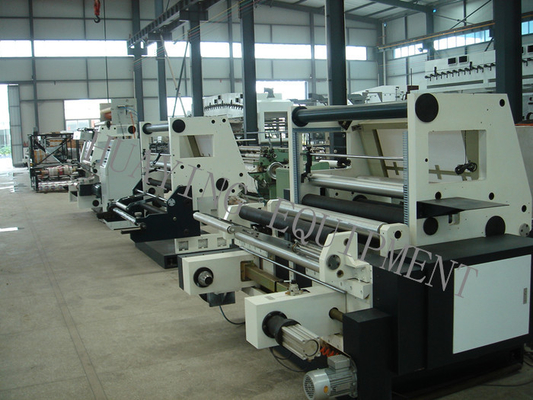

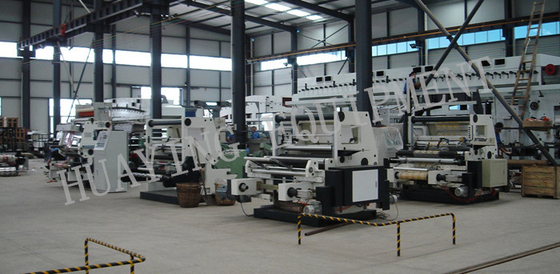

Deviation Correction System Label Inspection Machine With CCD Camera Device 2





Shantou Huaying Soft-Packing Equipment Plant Ltd.
Contacts :May Wu

TEL:0086 754 88226231

ADD:B2-B4, Block 9, Jinyuan Industrial Park, Chaoshan Road, Shantou, China
Post Code: 515064
Fax: 0086 754 88226282
