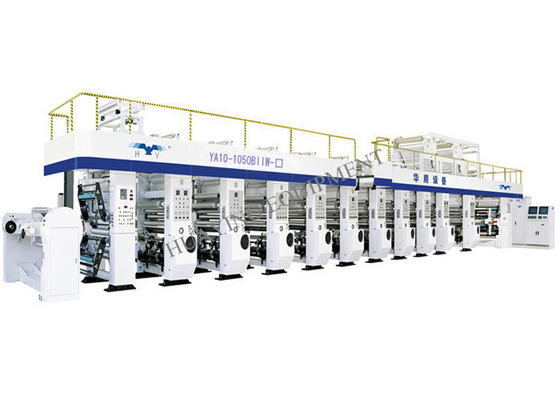

10 Colors Flexographic Printing Machine With Servo Motor Drive , Gravure Printing Machines
one set
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: HY
Certification: CE
Model Number: YA10-1050BIIW-□
High Light:

gravure printing machine


flexographic printing machine

Payment & Shipping Terms
Packaging Details: Wooden packaging
Delivery Time: 90-120 working days
Supply Ability: two sets per month
Number Of The Printing Color: 10 Colors ( There Has 3-10 Printing Colors Can Be Chosen)
Printing Width: 700-1050mm (1250BⅡ:900-1250mm / 1500BⅡ: 1150-1500mm)
Thickness Of The Substrate: 10-60μm
Product Description

Rotogravure Printing Machine , 8 colors , Max Working Speed 250m/min, Mechanical Shaft , Shaftless , Servo Motor Drive


Technical Detais:

 Application area  printing lamination film product, surface printing product,  transfer printing product
 Max. working speed  250m/min (diameter of the printing cylinder:φ150mm)
 Diameter of the roll  Max.φ800mm
 Diameter of the printing cylinder   φ120mm~φ280mm(L=376.9mm~879.62 mm)
 Kinds of the solvent  solvent-based , water-based
 Accuracy of the register   ≤±0.1mm
 Power of the main machine   185kw ( not including the dry heat energy)
 Power supply  380VAC±10%,50±2Hz,three-phase five-wire
 Power of the heating supply (oven)   Electric energy supply, steam supply, thermal conductive oil  supply
 Size( L × W × H)  23700mm × 5000mm × 4315mm
 Weight  58T
 Optional function

 1. printing unit servo driven

 2. ink tray trolley

 3. high-performance energy saving and consumption reducing       system

 4. UV printing unit, flexible printing unit

 5. air floating reverse printing device

 6. printing quality intelligent management system


Summarize and Function:


    This series of machines is the first one to use the industry computer center control in China. It can accurately control the mulit-motor tension, logic action and color code. The machine absorbs the advanced design idea from foreign printing machines and has the excellent rigidity and running stability. This series of machines can not only ensure the high quality printing products but also can furthest reduce the customers’production cost by using the energy-saving, consumption reducing, safety working condition emulational design. The equipment can apply to the multi-color continuous high speed printing of the rolled material such as the various bidirectional/ unidirectional stretching plastic film etc.


Core Competition:


1. Advanced performance:

   This high-speed rotogravure printing machine made in 1995 was the China's first independent research at that time. It is the National Level Torch Plan Project and Guangdong Province High New Tech Product. After 20 years of continuous improvement and innovation, we have already formed the full line scientific research & design & precise manufacturing system and full line product specification & grade supply system.


2. Stability performance:

    We have already formed a steady professional team that integrate the scientific research design, product manufacturing and sales service. We coagulate many years’comprehensive resources and win the honor of “Best Product of China ”.


3. Technical differences:

    The testing standard of our printing machine can reach the parameter requirement of the Japan equipment. The heat energy of the drying chamber can be reduced 25% - 50% and the emission of heat waste gas can be reduced 15% - 25%. It is suitable for the printing technics of the water-based ink and chemical-based ink.

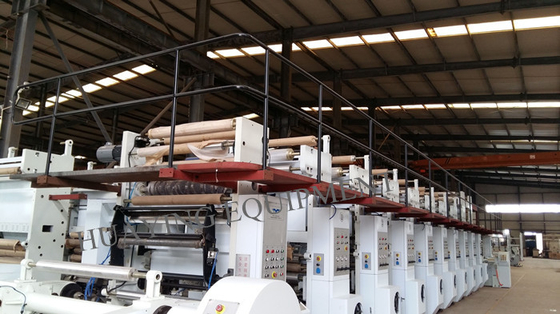

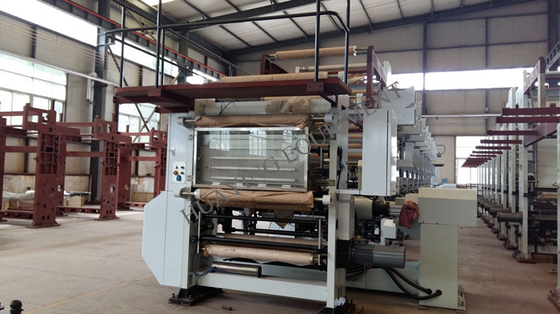

Key Components:


10 Colors Flexographic Printing Machine With Servo Motor Drive , Gravure Printing Machines 0

10 Colors Flexographic Printing Machine With Servo Motor Drive , Gravure Printing Machines 1


Final Products:

10 Colors Flexographic Printing Machine With Servo Motor Drive , Gravure Printing Machines 2


Contact us:


Shantou Huaying Soft-Packing Equipment Plant Ltd.
Contacts :May Wu


     Tel:0086 754 88226231

ADD:B2-B4, Block 9, Jinyuan Industrial Park, Chaoshan Road, Shantou, China
Post Code: 515064
Fax: 0086 754 88226282
