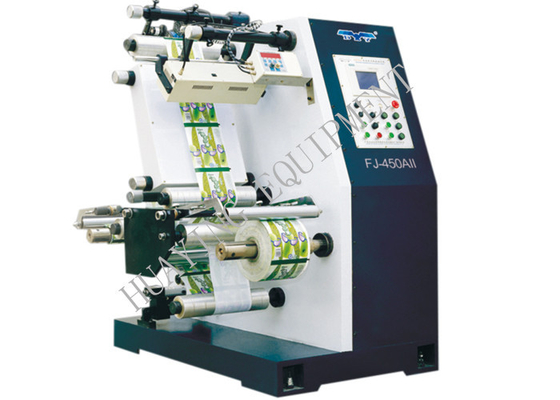

Inspector for printing products, max working speed 185 m/min, can configure with laser cutting and digital ink-jet device
Technical details:
| Diameter of the roll | Φ450 mm |
| Inspect method | Fixed stroboscope |
| Control system | PLC data control |
| Power | Probably 7 kw( AC frequency inverter motor drive) |
| Requirement of the power | AC 380±10% three-phase four-wire |
| Size ( L * W * H) | 1400mm * 1400mm * 1600mm |
| Optional function | 1. CCD inspecting device 2. computer automatically image analysis system |
Summarize and function:
This series of machines is the first one to use the industry computer center control in China. It can accurately control the mulit-motor tension, logic action and CCD printing quality inspection. The whole machine is composed of unwind & deviation correction unit, main driving mechanism, stroboscopic inspector, rewind unit and complete set of control system. Its compact structure and perfect performance of components are able to reach the international level. Now we already formed two grades series. This series of machines can not only ensure the high-speed running but also can furthest increase the production efficiency by using the CCD camera, image analysis, defective products showing, reset accurately etc. The equipment can apply to the continuously production of the various kinds of the rolled material which be printed and coating image be inspected.
Core competition:
1. Advanced performance:
This machine was the 2007 year National Level Torch Plan Project and Guangdong Province High Technical Product. This CCD printing quality inspecting equipment was the first one made by China. After 15 years of continuous improvement and innovation, we have already formed the full line scientific research & design & precise manufacturing system and full line product specification & grade supply system.
2. Structure feature:
Equipped with stroboscope inspecting station with super-large surface to meet the physical requirement of visual height and gradient. Magnetic-attraction-type film contact platform (HUAYING design & patent) is easily operated and film is accepted in regularity.
3. Technical differences:
a. The accuracy of the speed synchronous running can reach 0.02%;
b. The inspecting tolerance of the setting can reach 100%；
c. Configured with outline image analysis platform.
Key components:
Final products:
