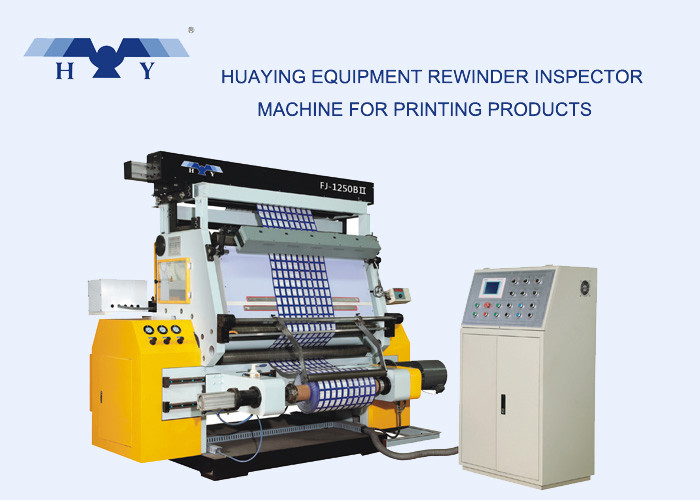

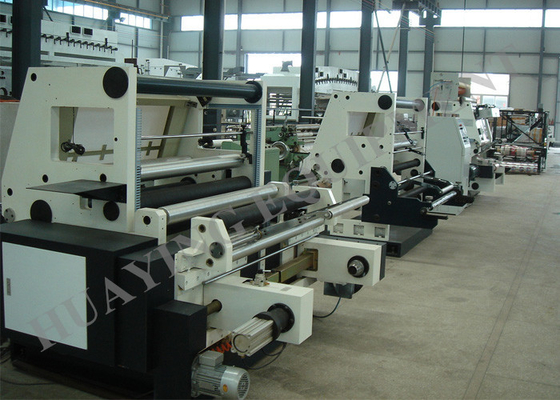

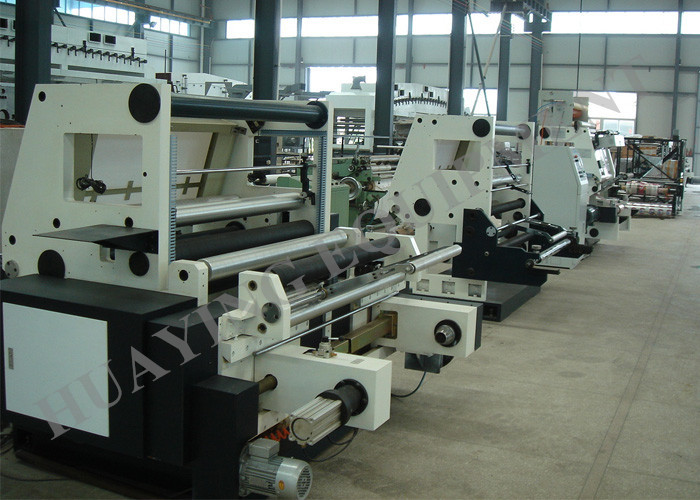

Rewinder inspector machine for packaging line like beverage and food, max working speed 338 m/min, can configure with laser cutting device and digital ink-jet device
Quick Details:
| Width of the roll | 600-1250mm / 1650BII:1000-1650mm |
| Thickness of the substrate | Printing film: 0.015-0.15mm |
| Max. working speed | Ma x.338 m/min (when 50HZ) |
| Diameter of the roll |
Φ 800 mm(can chose Φ1000 mm) |
| Control system |
computer automatically image analysis system; PLC main machine data control system |
| Visual inspecting device | CCD camera device |
| Range of the tension control | 3 – 13.5 kg / 1650BII:4.5 – 17.5 kg |
|
Power |
17KW / 1650BII:22KW( AC servo motor drive ) |
| Requirement of the power | AC 380±10% three-phase four-wire |
| Size ( L × W × H) |
2600mm×2800mm×1850mm |
| Optional function |
1. others 2. off-line quality analysis management platform |
Functions and Characteristics:
This machine is used for inspect the printing defect of such various roll materials as BOPP,PET,CPP, PVC, aluminum foil and paper.,etc.
Performance and Characteristics:
1. Main Motor: 1 pc servo motor with pulling roller.
2. Rewind motor: 1 pc servo motor.
3. Unwind motor: 1 pc servo motor.
4. Automatic EPC for unwind and rewind.
5. Equipped with shaft-less for unwind and rewind's material loading. unwind and rewind's tension are from separate servo motor.
6. Pressure roller for rewind and unwind to make rewinding roll more uniform.
7. Machine's totally controlled by PLC.
8. Automatic mode: When a defect is detected, the machine reduces its speed until it stops rewinding, than the film is automatically rewound back and the defect area stops over an inspection plate for visual examination.
9. Semi-Automatic mode: When a defect is defected, the machine does not reduce the speed, it will save the data with photos in the computer and keep inspection after rewinding is finished, when the inspection is done, the computer will show all the defect details and photos, when click the defect through by the computer, the machine auto rewound back and the defect area stops over an inspection plate for visual examination.
Key technology advantage :
1. Complete equipment series and specifications, includes printed rolled CCD inspector, printed rolled
rewinder, printed single rolled rewinder, Cutting machine for finished products, Can offer the full range
of technical services for printed products inspected and rewinded.
2. Speed synchronous operation precision can reach 0.02%, setting error detection rate can reach 100%;
configured with line image analysis platform.
3. Optional : Quality intelligent management system (Patent technology), can achieve auto production
quality intelligent management .
