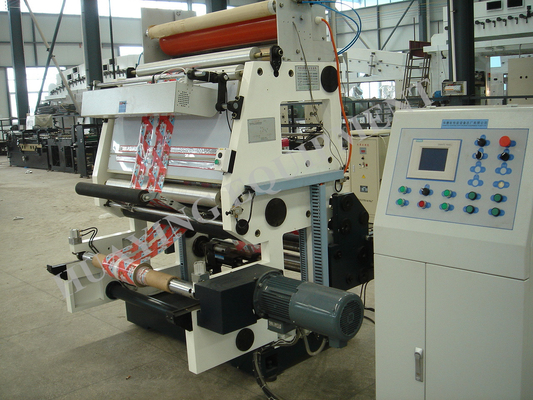

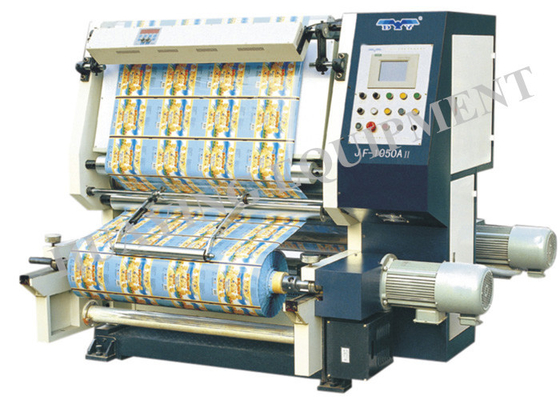

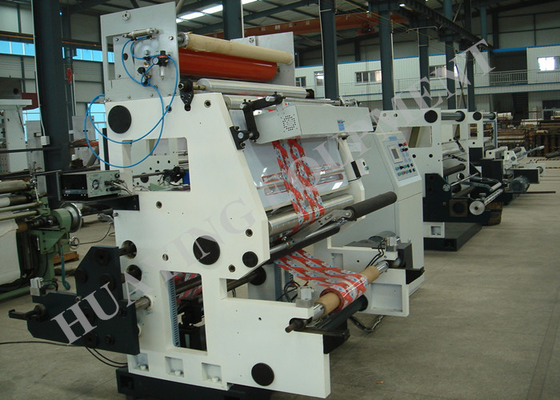

Inspecting machine for printing products, max working speed 250 m/min, can configure with digital ink-jet device and laser cutting device

Technical details:

      Summarize and function:

      This unit is a kind of rewind & inspecting equipment with high-precision and high-sensitivity, which is available for quality inspection of rolled film or rolled paper (paper weight under 90g/m²) after printing or coating process, and also can be used for the rewind execution of the rolled material. This series of machines is the first one to use the industry computer center control in China. It can accurately control the mulit-motor tension, logic action and CCD printing quality inspection. The equipment can apply to the continuously production of the various kinds of the rolled material which be printed and coating image be inspected.

      Core competition:

      1. Structure feature:

The whole control system adopted PLC control, man-machine interface operation and Chinese-English display version and tension & speed control synchronization adopting closed-loop AC inverter control system, is to reach the standard of the coordinate equipments aboard.

      2. Technical differences:

a. The inspecting tolerance of the setting can reach 100%；

b. The accuracy of the speed synchronous running can reach 0.02%;

c. Configured with outline image analysis platform.

      3. Special design:

         The total guide rollers to be aluminum alloy treated on the surface are designed with small torsion

         structure to maintain the synchronization between film running speed and roller rotating speed for

         protection of the film material.

      Key conponents:

     Final products:
