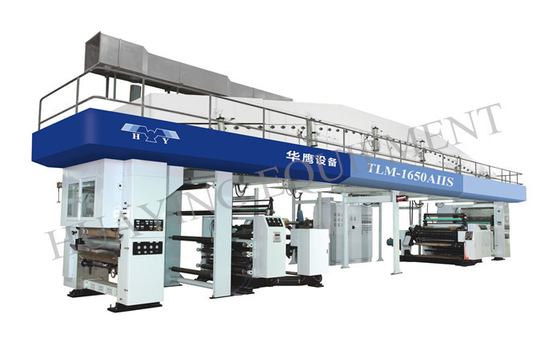

Two Motor Drive Laminating Coating Machine For Producing Release Paper
One set
MOQ
Negotiation
Price
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: HY
Certification: CE
Model Number: TLM -1650AIIS
High Light:

lamination coating machine

,

extrusion coating machine

Payment & Shipping Terms
Packaging Details: Wooden packaging
Delivery Time: 90-120 days
Payment Terms: L/C, T/T
Supply Ability: One set/month
Specifications
Suitable Materila: Dual-direction Stench Film (20-60μm)
Coating Unit Structure: Two Rollers Coating Structure(two Motor Drive)
Power Of The Driven Motor: 73 Kw(not Including Oven Energy Source )
Coating Weight(dry): Solvent-based 0.9-2 G/㎡
MAX. SPEED: Max.185m/min(can Chose BⅡS- Max.250m/min)
Diameter Of The Roll: Max.φ600mm ( Can Choose Max.φ800mm)
Product Description

Release film coater, max working speed 250m/min



Technical details:


Application area

Transfer aluminizing film, transfer printing release film,

transfer laser film,transfer Electrochemical aluminum film

MAX. SPEED Max.185m/min(can chose BⅡS- Max.250m/min)
Width of the roll 1250mm-1650 mm(1100AIIS:750mm-1100mm)
Diameter of the roll Max.φ600mm ( can choose Max.φ800mm)
Power of the heating supply (oven) Electric heating supply, thermal conductive oil supply



Size( L × W × H)

16400mm×5500mm×4600mm
Optional function

1. seal space blade and glue supply unit

2. other functional trolley coating unit( including glue supply device)

3. viscosity automatically detecting and control device

4. oven high-performance heating supply

and working condition intelligent control system;

5. VOCS,CO2 pollution treatment system design

































Summarize and function:



     This series of machines is the first one to use the industry computer center control in China. It can accurately control the mulit-motor tension, logic action and coating weight. Now we already form two series of coating equipments which are plastic film-release type transfer coating equipment, transfer/composite paper- coating laminating equipment. The equipment can apply to the coating of various kinds of transfer technology packaging and decoration functional material.



      Core competition:

① Advanced performance: National Key New Technical Product of year 2000; After 15 years of continuous improvement and innovation, we have already formed the full line scientific research & design & precise manufacturing system and full line product specification & grade supply system.



②Coater performance: Micro-gravure coater, smooth, even and stable performance to achieve stability of continuous coating. Apply to material like paper, film, textile, foil in different width, ranging form 2 μm PET to 200μm foil.



③Technical differences: configured with modularization coating unit, oven energy saving≥40%, can choose the double station high speed non-stop automatically paper feeding unit, can offer the whole technology and coating liquid supply channel of the final products to customer.



Key components:

Two Motor Drive Laminating Coating Machine For Producing Release Paper 0



Two Motor Drive Laminating Coating Machine For Producing Release Paper 1

Two Motor Drive Laminating Coating Machine For Producing Release Paper 2



Final products:



Two Motor Drive Laminating Coating Machine For Producing Release Paper 3
