Dual Laminating Function Dry Lamination Machine Working Speed 185m/min
One set
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: CHINA
Brand Name: HY
Certification: CE
Model Number: FG-1050AIIS
High Light:

automatic lamination machine


wet lamination machine

Payment & Shipping Terms
Packaging Details: Wooden packaging
Delivery Time: 75-90 days/set
Payment Terms: L/C, T/T
Supply Ability: Three sets/month
Suitable Material --- First Substrate: Laminated Film(10-50μm), BOPP, BOPET, BOPA
Suitable Material --- Second Substrate: CPP, CPE, AL, Paper(20-80μm)
Laminated Width: 700-1050mm (1250AII:900-1250mm)
Max. Working Speed: Max185m/min
Kinds Of Laminating: Dry Laminating Production Technics
Weight: 23 T
Product Description

Energy saving hi-speed dry laminating line, working speed 185m/min, dual laminating function, Solvent-based ,water-based


Quick Details:


Laminated width 700-1050mm (1250AII:900-1250mm)
Max. working speed Max185m/min
Application area Food packing, Commodity packing, Others packing
Diameter of the roll Max.φ600mm
Structure of the coating unit Two rollers coating structure
Driven motor power 60kw(not including oven energy source )
Power supply : 380VAC±10%, 50±2Hz, three-phase five-wire
Power of the heating supply (oven) Electric energy supply, steam supply, thermal conductive oil supply
Coating weight(dry)

Solvent-based: 1.5-4g/㎡

Water-based:1-3.5 g/㎡

Kinds of laminating Dry laminating production technics
Suitable material --- first substrate Laminated film(10-50μm), BOPP, BOPET, BOPA
Suitable material --- second substrate CPP, CPE, AL, paper(20-80μm)
Size( L × W × H) 13500mm×4500mm×3300mm
Weight 23 T
Optional function

1. coating seal spaced blade device

2. adhesive automatically viscosity control device

3. other functional coating unit

4.fixed point and checking coating control system

5. high-performance energy saving and consumption reducing system

6. tension control system for dual-film of 2nd unwind device

7. substrate surface corona device





























Summarize and function:

1. 29 years experience in packing industrial.

2. Appliance is strictly in accordance with CE standard.

3. Assembly & parts are processed by CNC lathe.

4. Good after-sale service.

5. Prompt reply within 12 hours.

6. Professional & enthusiastic sales team


Core competition:

Dry laminating machine is suitable for multi-color once-through continuous printing for such roll film materials with excellent printing performance as BOPP,PET.PVC,PE ,Aluminum foil and paper ,etc


1. All the first unreeling, the second unreeling and reeling adopt air bulking shaft.

2. First unreeling adopts photoelectric deviation rectification system.

3. Gluing and laminating controlled by double motor and double frequency converter achieve synchronous linear velocity which ensures that base material is not stretched.

4. Gluing compression roller and laminating compression roller adopt pneumatic pressurizing which pressure size can be adjustable.

5. Use scraper blade imported from Switzerland for gluing of anilox roller and scraper swings left and right and to and fro during gumming.

6. Operation of pneumatic-type baking oven cover and film-threading operating platform is secure and simple and convenient.

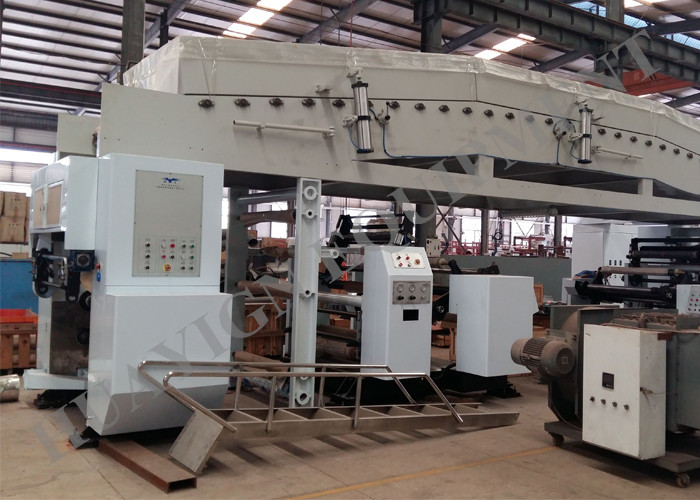

Dual Laminating Function Dry Lamination Machine Working Speed 185m/min 0


Final Products:

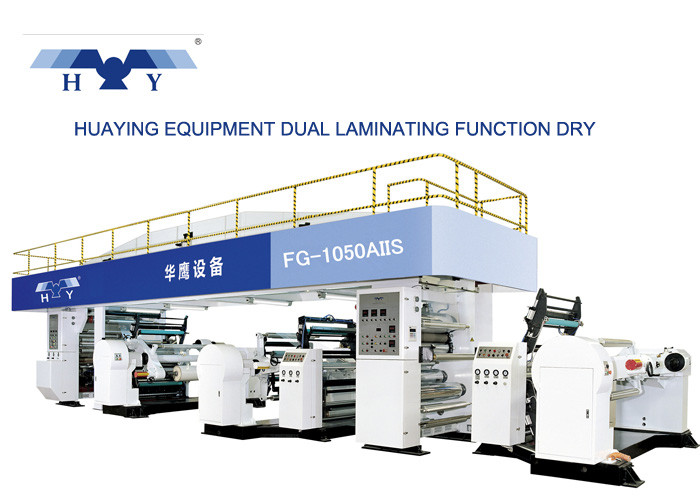

Dual Laminating Function Dry Lamination Machine Working Speed 185m/min 1




Shantou Huaying Soft-Packing Equipment Plant Ltd.
Contacts :May Wu


TEL:0086 754 88226231

ADD:B2-B4, Block 9, Jinyuan Industrial Park, Chaoshan Road, Shantou, China
Post Code: 515064
Fax: 0086 754 88226282
