Plastic Film Dry Lamination Machine High Speed Dual Function Solvent-Based
One set
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: CHINA
Brand Name: HY
Certification: CE
Model Number: FG-1250BIIS
High Light:

dry laminating Machine


wet lamination machine

Payment & Shipping Terms
Packaging Details: Wooden packaging
Delivery Time: 90-120 days/set
Supply Ability: Two sets/ month
Power Supply: 380VAC±10%,50±2Hz,three-phase Five-wire
Driven Motor Power: 90.2 Kw(not Including Oven Energy Source )
Kinds Of Laminating: Dry Laminating Production Technics
Diameter Of The Roll: Max.φ800mm
Laminated Width: 900-1250mm (1500BII:1150-1500mm)
Power Of The Heating Supply (oven): Electric Energy Supply, Steam Supply, Thermal Conductive Oil Supply
Product Description

Plastic Film Dry Laminating equipment, working speed 250m/min, dual function, solvent-based, water-based


Quick Details:


Kinds of laminating Dry laminating production technics
Diameter of the roll Max.φ800mm
Structure of the coating unit Two rollers coating structure
Application area food packing, commodity packing, others packing
Max. working speed Max 250m/min ( can chose CII Max338m/min)
Laminated width 900-1250mm (1500BII:1150-1500mm)
Size( L × W × H) 13500mm×4200mm×3500mm
Weight 28T
Coating weight(dry)

Solvent-based: 1.5-4g/㎡

Water-based:1-3.5 g/㎡

Power supply 380VAC±10%,50±2Hz,three-phase five-wire
Power of the heating supply (oven) Electric energy supply, steam supply, thermal conductive oil supply
Driven motor power 90.2 kw(not including oven energy source )
Suitable material --- first substrate BOPP, BOPET, BOPA, laminated film(10-50μm)
Suitable material --- second substrate CPP, CPE, AL, paper(20-80μm)
Optional function

1. coating seal spaced blade device

2. adhesive automatically viscosity control device

3. sleeve type impressed rubber rollers

4. fixed point and checking coating control system

5. high-performance energy saving and consumption reducing system

6. tension control system for dual-film of 2nd unwind device

7. substrate surface corona device




























     Summarize and function:

This machine is a newly developed product that is made according to our experience on the laminating machine and the customers’ demands. The first basis metal adopts edge correction material delivering device with auto photo-electricity tracking. Moreover, with magnetic powder tension control, pneumatic back pressure shifting scraper, the oven temperature being controlled automatically and partly, the big cylinder heated by transferring oil, pneumatic control of gluing and laminating as well as the technology of double frequency conversion and speed regulation, this machine is endowed with the characteristics such as high laminating speed, low noise, low air pollution, low energy consumption and stable running, etc. It is used to laminate the material like Al-foil, cellophane and PA that have smooth surface with PP/PE film. The laminated film, with high intensity, waterproof, anti-ventilation, greaseproof, refrigerant and being steamed, is widely used for the package of refrigerant food, dry food, pharmacy and daily commodities.


Core competition:

1. Ladder-shaped wall which is made of high strength cast iron.

2. Oil temperature in composite roll can be automatic control.

3. Length of oven is 8 meters, with sub-4 automatic temperature control circulating air heating.

4. Gear sprocket surface is hardening: HRC48 ~ 52.

5. Material discharge is the magnetic braking, with automatic tension, automatic correcting.

6. Scraper on the glue roller is pneumatic pressure, and ran around 6mm as usual.

7.  Glue and composite rollers are pneumatic pressure, and pressure is adjustable, as well.

8. Machine with 5 retractable material rollers: 4 are inflatable axis, one common shaft sleeve.

9. Driver of the winding motor is torque motor, and it is good for tension and stability.

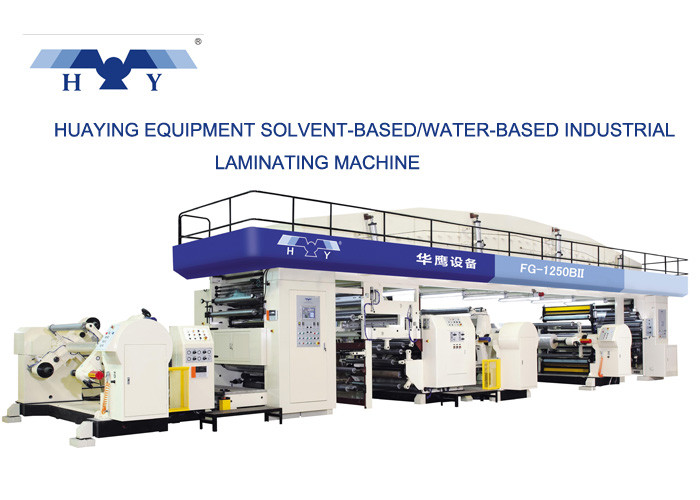

Plastic Film Dry Lamination Machine High Speed Dual Function Solvent-Based 0


Final Products:

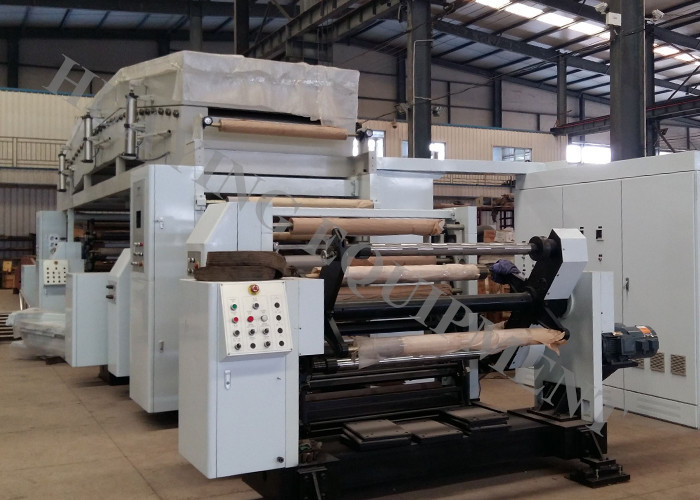

Plastic Film Dry Lamination Machine High Speed Dual Function Solvent-Based 1




Shantou Huaying Soft-Packing Equipment Plant Ltd.
Contacts :May Wu

TEL:0086 754 88226231

ADD:B2-B4, Block 9, Jinyuan Industrial Park, Chaoshan Road, Shantou, China
Post Code: 515064
Fax: 0086 754 88226282
