700-1050mm Laminated width Dry Lamination Machine Two Rollers Coating Structure
One set
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: CHINA
Brand Name: HY
Certification: CE
Model Number: FG-1050AIIS
High Light:

dry laminating Machine


wet lamination machine

Payment & Shipping Terms
Packaging Details: 75-90 days/set
Delivery Time: 75-90 days/set
Payment Terms: L/C, T/T
Supply Ability: Three sets/month
Max. Working Speed: Max185m/min
Laminated Width: 700-1050mm (1250AII:900-1250mm)
Diameter Of The Roll: Max.φ600mm
Structure Of The Coating Unit: Two Rollers Coating Structure
Driven Motor Power: 60kw(not Including Oven Energy Source )
Weight: 23T
Product Description


High speed dry laminator, working speed 185m/min, dual laminating function, Solvent-based,water-based


Quick Details:

Kinds of laminating Dry laminating production technics
Suitable material --- first substrate BOPA, BOPP, BOPET, laminated film(10-50μm)
Suitable material --- second substrate CPP, paper(20-80μm), CPE, AL
Application area commodity packing, food packing, others packing
Max. working speed Max185m/min
Laminated width 700-1050mm (1250AII:900-1250mm)
Diameter of the roll Max.φ600mm
Structure of the coating unit Two rollers coating structure
Coating weight(dry)

Solvent-based: 1.5-4g/㎡

Water-based:1-3.5 g/㎡

Driven motor power 60kw(not including oven energy source )
Power supply : 380VAC±10%, 50±2Hz, three-phase five-wire
Power of the heating supply (oven) Thermal conductive oil supply ,Electric energy supply, Steam supply
Size( L × W × H) 13500mm×4500mm×3300mm
Weight 23 T
Optional function

1. tension control system for dual-film of 2nd unwind device

2. other functional coating unit

3. fixed point and checking coating control system

4. coating seal spaced blade device

5. high-performance energy saving and consumption reducing system

6. adhesive automatically viscosity control device

7. substrate surface corona device






Summarize and function:

1. Ensure the high quality laminated products and furthest reduce the customers’production cost.

2. Acurately control the mulit-motor tension, logic action and coating weight.

3. Three products series including solvent type, solventless type, multi-function type.

4. Apply to the multi-layers continuous high speed laminating of the rolled material such as the various bidirectional/ unidirectional stretching plastic film etc.

5. First one to use the industry computer center control in China.


Core competition:


1. Stability performance:

We have already formed a steady professional team that integrate the scientific research design, product manufacturing and sales service. We coagulate many years’comprehensive resources and win the honor of “Best Product of China ”.


2. Technical differences:

     Heat energy consumption of the oven can be reduced 42% - 65 %

     Exhaust waste gas of the oven can be reduced 45% - 66%

     Changeable various functional coating trolley unit

     Suitable for the laminating technics of water-based adhesive and chemical-based adhesive


3. Advanced performance:

     2002 year National Key New Product.

     National Level Torch Plan Project.

     Province High New Tech Product.

     15 years of continuous improvement and innovation

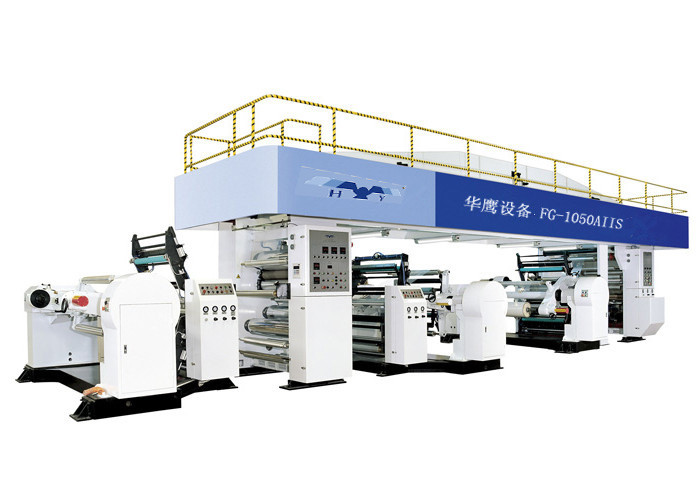

700-1050mm Laminated width Dry Lamination Machine Two Rollers Coating Structure 0


Final Products:

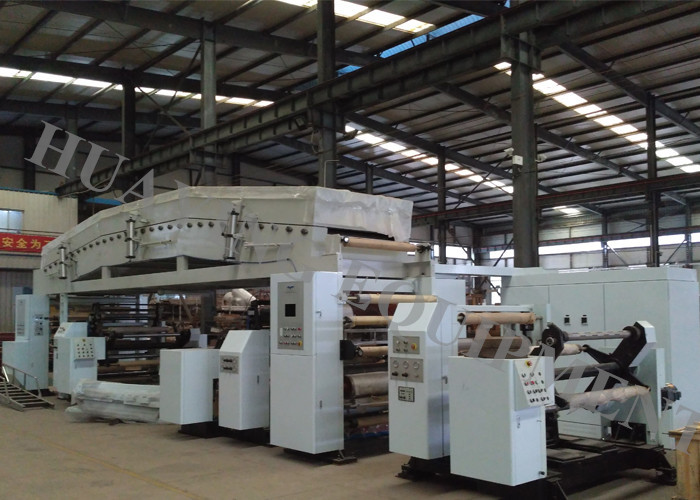

700-1050mm Laminated width Dry Lamination Machine Two Rollers Coating Structure 1



Shantou Huaying Soft-Packing Equipment Plant Ltd.
Contacts :May Wu


TEL:0086 754 88226231

ADD:B2-B4, Block 9, Jinyuan Industrial Park, Chaoshan Road, Shantou, China
Post Code: 515064
Fax: 0086 754 88226282
