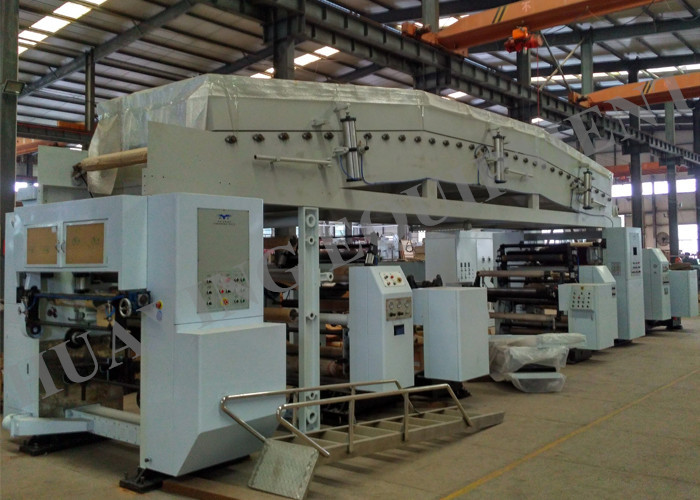

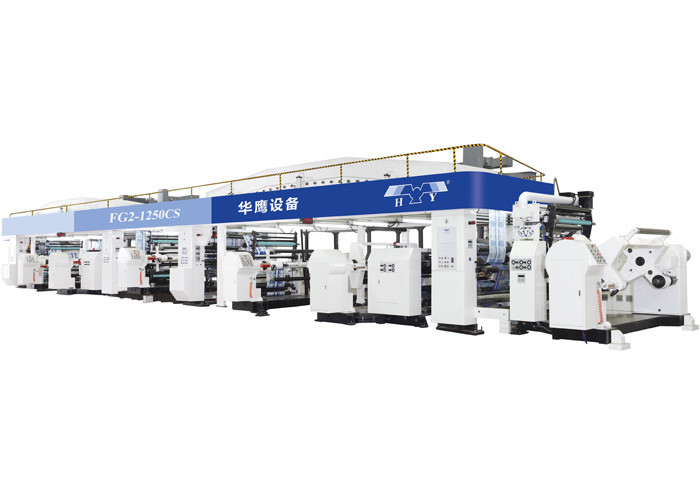

High Speed Dry Type Laminating Machine, working speed 338m/min, dual machine combo line, solvent laminating, solventless laminating
Quick Details:
| Kinds of laminating |
Dry laminating, solventless laminating |
| Suitable material --- first substrate |
BOPP, BOPA, laminated film(10-50μm), BOPET |
| Suitable material --- second substrate |
CPP, AL, paper(20-80μm), CPE |
| Application area |
food packing, others packing, commodity packing |
| Max. working speed |
Max338m/min |
| Laminated width |
900-1250mm (1500BII:1150-1500mm) |
| Diameter of the roll |
Max.φ800mm |
| Structure of the coating unit |
Two rollers coating structure |
|
Coating weight(dry)
|
Solvent-based : 1.5-4g/㎡
Water-based:1-3.5 g/㎡
|
| Driven motor power |
180kw(not including oven energy source ) |
| Power supply : |
380VAC±10%,50±2Hz,three-phase five-wire |
| Power of the heating supply (oven) |
Electric energy supply, steam supply, thermal conductive oil supply |
| Size( L × W × H) |
28000mm×4200mm×3500mm |
| Weight |
56T |
|
Optional function
|
1. other coating function trolley
2. substrate surface corona device
3. sleeve type impressed rubber rollers
4. intelligent production management system
5. high-performance energy saving and consumption reducing system
|
Summarize and function:
First one to use the industry computer center control in China.
Acurately control the mulit-motor tension, logic action and coating weight.
Three products series including solvent type, solventless type, multi-function type.
Ensure the high quality laminated products and furthest reduce the customers’production cost.
Apply to the multi-layers continuous high speed laminating of the rolled material such as the various bidirectional/ unidirectional stretching plastic film etc.
Core competition
1. Advanced performance:
2002 year National Key New Product.
National Level Torch Plan Project.
Province High New Tech Product.
2. Stability performance:
We have already formed a steady professional team that integrate the scientific research design, product manufacturing and sales service. We coagulate many years’comprehensive resources and win the honor of “Best Product of China ”.
3. Technical differences:
Two machines combo, three layers laminating in one time.
Changeable various functional coating trolley unit.
Heat energy consumption of the oven can be reduced 42% - 65 %.
Exhaust waste gas of the oven can be reduced 45% - 66%.
Suitable for the laminating technics of water-based adhesive and chemical-based adhesive
Key Components:
Final products:
