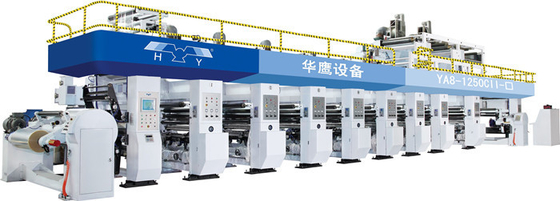

Computer high speed rotogravure printing machine , chemical-based , water-based, shaftless (servo motor drive)
Quick Details:
| Number of the printing color | 8colors ( there has 3-10 printing colors can be chosen) |
| Printing width | 900-1250mm (1050CⅡ:700-1050mm / 1500CⅡ: 1150-1500mm) |
| Suitable material | BOPET,BOPA,CPP,CPE |
| Diameter of the printing cylinder | φ150 mm～φ300 mm(L=471 mm～942 mm) |
| Thickness of the material | 10-60μm |
| Application area | printing lamination film product, transfer printing product, surface printing product |
| Max. working speed | 338 m/min (diameter of the printing cylinder:φ150mm) |
| Diameter of the roll | Max.φ800mm( can choose the max. φ1000mm) |
| Power supply | 380VAC±10%,50±2Hz,three-phase five-wire |
| Register Precision | ≤±0.1mm |
| Kinds of the solvent | solvent-based , water-based |
| Power of the heating supply (oven) | Electric energy supply, steam supply, thermal conductive oil supply |
| Dimensions(L*W*H) | 20200mm × 25200mm × 4450mm |
| Machine Weight: | 65 T |
| Machine Power | 165 kw ( not including the dry heat energy) |
|
Optional function
|
1. reset device of the printing unit blade three coordinate 2. ink viscosity automatically control detector 3. high-performance energy saving and consumption reducing system 4. UV printing unit, flexible printing unit 5. air floating reverse printing device 6. printing quality intelligent management system |
Summarize and function:
In China, this series of machines is the first one to use the industry computer center control. It can accurately control the color code, logic action and mulit-motor. The machine absorbs the advanced design idea from foreign printing machines and has the excellent rigidity and running stability. This series of machines .
Core competition:
1. Stability performance:
This machine can be used for continuously printing various plastic films,cloths,thin leathers and package products, etc with one -sided and two -sided printing finished by once-throuth operation.360 register device is accruagte and doesn'taffect stretching of film so that color-checking of printing can be adjusted freely at any time.The farinfrared tube drying unit can keep drying at 50mmin so as to make picture clear and exquisite.
2. Advanced performance
Current output type temperature control system makes heating quicker and electricity saving.
Obverse and reverse side once-through continuous printing
Unwinding and traction adopts magnetic powder brake to make material moving more stable.
Rewinding and traction adopt magnetic powder clutch to make color register accurate and rolling end face more neat and smooth.
3. Technical differences:
The testing standard of our printing machine can reach the parameter requirement of the Japan equipment. The heat energy of the drying chamber can be reduced 25% - 50% and the emission of heat waste gas can be reduced 15% - 25%. It is suitable for the printing technics of the water-based ink and chemical-based ink.
Key component:
Final products:
