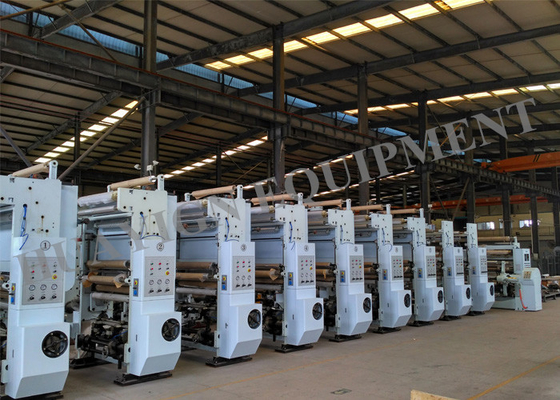

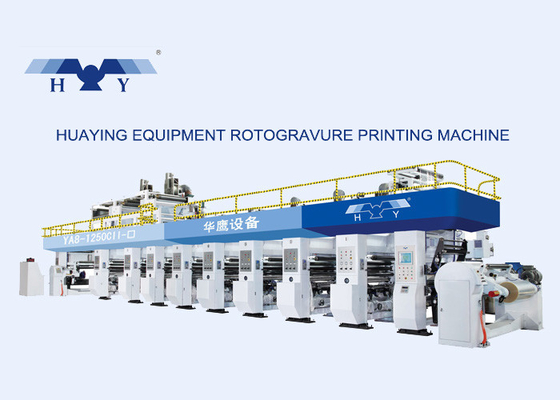

Multi-color High Speed Gravure Printing Machine, 8 colors, max working speed 338 m/min,for BOPP,BOPET,BOPA ,CPP ,CPE
Quick Details:
| Number of the printing color | 8colors ( there has 3-10 printing colors can be chosen) |
| Printing width | 900-1250mm (1050CⅡ:700-1050mm / 1500CⅡ: 1150-1500mm) |
| Suitable material | BOPET,BOPA,CPP,CPE |
| Thickness of the substrate | 10-60μm |
| Accuracy of the register | ≤±0.1mm |
| Power of the main machine | 165 kw ( not including the dry heat energy) |
| Max. working speed | 338 m/min (diameter of the printing cylinder:φ150mm) |
| Diameter of the roll | Max.φ800mm( can choose the max. φ1000mm) |
| Diameter of the printing cylinder | φ150 mm～φ300 mm(L=471 mm～942 mm) |
| Size( L × W × H) | 20200mm × 25200mm × 4450mm |
| Weight | 65 T |
| Application | printing lamination film product, surface printing product, transfer printing product |
| Type of the heating supply (oven) | Electric energy supply, steam supply, thermal conductive oil supply |
| Power | 380VAC±10%,50±2Hz,three-phase five-wire |
| Type of the solvent | solvent-based , water-based |
|
Optional function
|
1. reset device of the printing unit blade three coordinate 2. ink viscosity automatically control detector 3. high-performance energy saving and consumption reducing system 4. UV printing unit, flexible printing unit 5. air floating reverse printing device 6. printing quality intelligent management system |
Summarize and function:
In China, this series of machines is the first one to use the industry computer center control. It can accurately control the color code, logic action and mulit-motor. The machine absorbs the advanced design idea from foreign printing machines and has the excellent rigidity and running stability. This series of machines can ensure the high quality printing products as well as furthest reduce the customers’production cost by using the energy-saving, consumption reducing, safety working condition emulational design. The equipment can apply to the multi-color continuous high speed printing of the rolled material such as the various bidirectional/ unidirectional stretching plastic film etc.
Core competition:
1. Stability performance:
Form a steady professional team
Integrate the scientific research design, product manufacturing and sales service
Coagulate many years’ comprehensive resources
Win the honor of “Best Product of China “.
2. Advanced performance:
Made in 1995
The China's first independent research
National Level Torch Plan Project and Guangdong Province High New Tech Product.
After 20 years of continuous improvement and innovation, we have already formed the full line
scientific research & design & precise manufacturing system and full line product specification & grade
supply system.
3. Technical differences:
Testing standard of our printing machine can reach the parameter requirement of the Japan
equipment.
Heat energy of the drying chamber can be reduced 25% - 50%
Emission of heat waste gas can be reduced 15% - 25%.
Suitable for the printing technics of the water-based ink and chemical-based ink.
Key Components:
Final products:
Contacts:
