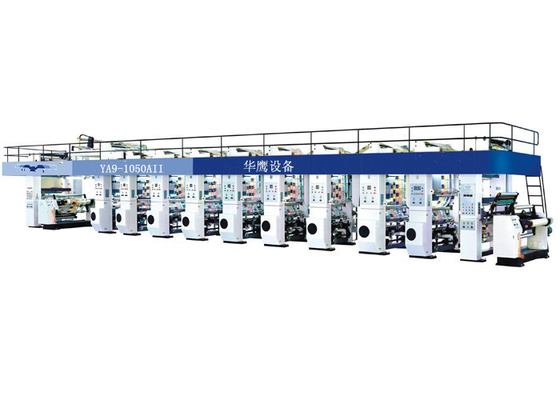

Computerized Rotogravure Printing Machine With CE Verified For Food Packaging
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: CHINA
Brand Name: HY
Certification: CE
Model Number: YA9-1050AIIW
High Light:

flexographic printing machine


plastic printing machine

Payment & Shipping Terms
Packaging Details: 45-120 days/set
Delivery Time: 45-120 days/set
Payment Terms: L/C, T/T
Supply Ability: Three sets/ moth
Number Of The Printing Color: 9 Colors ( There Has 3-10 Printing Colors Can Be Chosen)
Printing Width: 700-1050mm (850AⅡ: 500-850mm / 1250AⅡ: 900-1250mm)
Suitable Material: BOPP , BOPET, BOPA, CPP, CPE, PVC
Thickness Of The Substrate: 10-60μm
Max. Working Speed: 185 M/min (diameter Of The Printing Cylinder:φ150mm)
Power Of The Main Machine: 115.5 K ( Not Including The Dry Heat Energy)
Product Description

Computerized roto gravure printing machine with CE verified , 9 colors, max working speed 185 m/min


Quick Details:


Number of the printing color 9 colors ( there has 3-10 printing colors can be chosen)
Printing width 700-1050mm (850AⅡ: 500-850mm / 1250AⅡ: 900-1250mm)
Suitable material


Thickness of the substrate


Application area printing lamination film product, surface printing product, transfer printing product
Max. working speed 185 m/min (diameter of the printing cylinder:φ150mm)
Diameter of the roll Max.φ600mm( can chose the max.φ800mm)
Diameter of the printing cylinder φ120mm~φ280mm(L=376.9 mm~879.2 mm)
Kinds of the solvent solvent-based , water-based
Accuracy of the register ≤±0.1mm
Power of the main machine 115.5 k ( not including the dry heat energy)
Power supply 380VAC±10%,50±2Hz,three-phase five-wire
Power of the heating supply (oven) Electric energy supply, steam supply, thermal conductive oil supply
Size( L × W × H) 20000mm×4500mm×3800mm
Weight 45T

Optional function



1. printing unit servo driven

2. ink tray trolley

3. high-performance energy saving and consumption reducing system

4. UV printing unit, flexible printing unit

5.air floating reverse printing device

6.printing quality intelligent management system



























Summarize and function:

  1. The first one to use the industry computer center control in China
  2. Reduce the customers’ production cost by using the energy-saving, consumption reducing, safety working condition emulational design
  3. Apply to the multi-color continuous high speed printing of the rolled material such as the various bidirectional/ unidirectional stretching plastic film etc.
  4. Excellent rigidity and running stability
  5. Ensure the high quality printing products
  6. Accurately control the mulit-motor tension, logic action and color code
  7. Absorb the advanced design idea from foreign printing machines

Core competition:


    1.Dual Turret Unwind and Rewind Design

    2.High speed non-stop Auto splicing and cutting Device in uwind and rewind.

    3.Electronic Line Shaft for Drive. Independent Servo Motor Drive for Every color unit.

    4.Pre-registration function,Vertical and horizontal automatic color registration system(KESAI 3000B model)

    5. The chamber-type Doctor Blade.


Key Components:

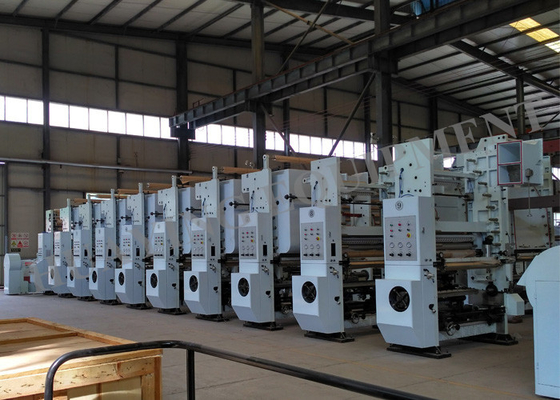

Computerized Rotogravure Printing Machine With CE Verified For Food Packaging 0


Final Products:


Computerized Rotogravure Printing Machine With CE Verified For Food Packaging 1




Shantou Huaying Soft-Packing Equipment Plant Ltd.
Contacts :May Wu

TEL:0086 754 88226231

ADD:B2-B4, Block 9, Jinyuan Industrial Park, Chaoshan Road, Shantou, China
Post Code: 515064
Fax: 0086 754 88226282
