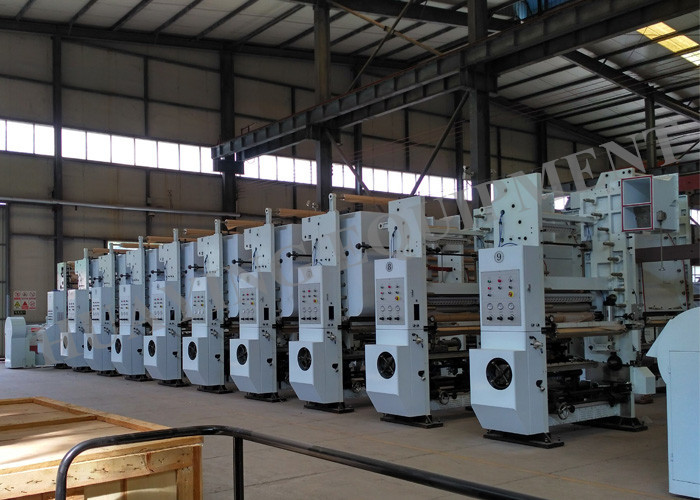

10 Color Rotogravure Printing Machine
One set
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: CHINA
Brand Name: HY
Certification: CE

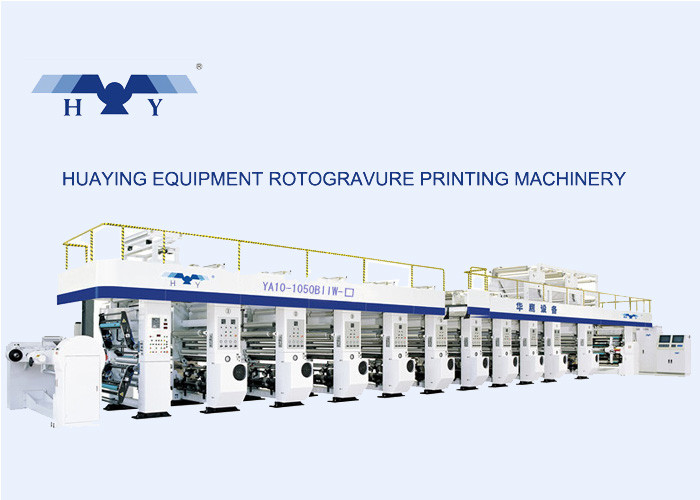

Model Number: YA10-1050BIIW-□
High Light:

flexographic printing machine


plastic printing machine

Payment & Shipping Terms
Packaging Details: Wooden packaging
Delivery Time: 90-120 days/set
Payment Terms: L/C, T/T
Supply Ability: Two sets/ month
Number Of The Printing Color: 10 Colors ( There Has 3-10 Printing Colors Can Be Chosen)
Printing Width: 700-1050mm (1250BⅡ:900-1250mm / 1500BⅡ: 1150-1500mm)
Max. Working Speed: 250m/min (diameter Of The Printing Cylinder:φ150mm)
Diameter Of The Roll: Max.φ800mm
Thickness Of The Substrate: 10-60μm
Weight: 58 T
Product Description

Computer Register 10 Color rotogravure, gravure type heat Transfer Film Printing Machine, mechanical shaft or shaftless


Quick Details:


Number of the printing color 10 colors ( there has 3-10 printing colors can be chosen)
Printing width 700-1050mm (1250BⅡ:900-1250mm / 1500BⅡ: 1150-1500mm)
Suitable material


Thickness of the substrate


Application area printing lamination film product, surface printing product, transfer printing product
Max. working speed 250m/min (diameter of the printing cylinder:φ150mm)
Diameter of the roll Max.φ800mm
Diameter of the printing cylinder φ120mm~φ280mm(L=376.9mm~879.62 mm)
Kinds of the solvent solvent-based , water-based
Accuracy of the register ≤±0.1mm
Power of the main machine 185 kw ( not including the dry heat energy)
Power supply 380VAC±10%,50±2Hz,three-phase five-wire
Power of the heating supply (oven) Electric energy supply, steam supply, thermal conductive oil supply
Size( L × W × H) 23700mm × 5000mm × 4315mm
Weight 58 T

Optional function


1. printing unit servo driven

2. ink tray trolley

3. high-performance energy saving and consumption reducing system

4. UV printing unit, flexible printing unit

5. air floating reverse printing device

6. printing quality intelligent management system



























Summarize and function:

    This machine is suitable for different kinds of plastic film, paper etc roll material printing, three-motor tension control in closed loop, computer register, shaftless, pneumatic blade, converter adjust speed, steady tension, actually register, high capacity, reasonable design, easy to operate and realiable quality.


Core competition:

1. Double air-shaft in rewinding,high speed auto receiving material without stop

2. Double air-shaft in unwinding,semi-automatic cutting and receiving

3. Water cooling device

4. Float roll type double air cylinder for pressing

5. Shaftless type plate cylinder loading

6. Computer register system

7. Inspection unit(brand according to clients)

8. Film tension adpots three motor sychronous system (main motor, unwinding traction, rewinding traction)


Technology advantage:

1. Apply to the production technology requirement of chemical-base solvent and water-base solvent and reserve the joint for digital ink jet printing unit

2. Dryer and heating supply system adopt computer simulation software design and series internal loop structure(Patent technology), configured with online intelligent control (Copyright unit),can save 45%-75% heat energy, reduce 40%-50% hot exhaust gas

3. Optional: Modularization printing function trolley unit, can achieve gravure printing, flexo printing, can achieve changing the production size quickly and reduce the Production auxiliary time



Key Components:


10 Color Rotogravure Printing Machine 0


Final Products:


10 Color Rotogravure Printing Machine 1
