Computer Control BOPP / BOPET Rotogravure Printing Machine With Film Gravure Printing Machine
One set
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: CHINA
Brand Name: HY
Certification: CE
Model Number: YA10-1050BIIW-□
High Light:

gravure printing machine


flexographic printing machine

Payment & Shipping Terms
Packaging Details: Wooden packaging
Delivery Time: 90-120 days/set
Payment Terms: L/C, T/T
Supply Ability: Two sets/ month
Number Of The Printing Color: 10 Colors ( There Has 3-10 Printing Colors Can Be Chosen)
Printing Width: 700-1050mm (1250BⅡ:900-1250mm / 1500BⅡ: 1150-1500mm)
Thickness Of The Substrate: 10-60μm
Max. Working Speed: 250m/min (diameter Of The Printing Cylinder:φ150mm)
Accuracy Of The Register: ≤±0.1mm
Power Of The Main Machine: 185 Kw ( Not Including The Dry Heat Energy)
Product Description

Computer Control BOPP / BOPET / BOPA / CPP / CPE / PVC Film Gravure Printing Machine,mechanical shaft /shaftless


Quick Details:



Number of the printing color 10 colors ( there has 3-10 printing colors can be chosen)
Printing width 700-1050mm (1250BⅡ:900-1250mm / 1500BⅡ: 1150-1500mm)
Suitable material


Thickness of the substrate


Max. working speed 250m/min (diameter of the printing cylinder:φ150mm)
Size( L × W × H) 23700mm × 5000mm × 4315mm
Weight 58 T
Accuracy of the register ≤±0.1mm
Power of the main machine 185 kw ( not including the dry heat energy)
Diameter of the roll Max.φ800mm
Diameter of the printing cylinder φ120mm~φ280mm(L=376.9mm~879.62 mm)
Power supply 380VAC±10%,50±2Hz,three-phase five-wire
Power of the heating supply (oven) Electric energy supply, steam supply, thermal conductive oil supply
Kinds of the solvent solvent-based , water-based
Application area printing lamination film product, surface printing product, transfer printing product

Optional function


1. printing unit servo driven

2. ink tray trolley

3. high-performance energy saving and consumption reducing system

4. UV printing unit, flexible printing unit

5. air floating reverse printing device

6. printing quality intelligent management system



























Summarize and function:

    HuaYing gravure press is droved by the international advanced High Closed Loop Servo Motor and controlled by PLC, human machine interface controls the whole working process with overprint tracker display system.

    This machine is suitable for packing milk, beverage and other materials, printing ,impressing, and punching on the yew paper ,carton paper, cigarette paper ,wine packing paper ,etc.


Core competition:

1. This roto-gravure printing machine is suitable for BOPP, PET, PVC, PE, NY, aluminum foil and paper, non-woven fabric, etc., have good printing performance of roll film, multi-color continuous printing materials

2. Roto-gravure printing machine with automatic matching color system, each control unit configuration independent microcomputer processor so that can rapidly accurate correction color deviation

3. The host frequency control of motor speed, unwind & rewind drag by frequency speed control

4. Unwinding roll tension: adopts automatic constant tension control device and the magnetic powder brake control

5. Rewind with double torque motor control, the double location automatically turning can be realized without a stop reloading

6. Independent external heating, closed cycle hot air drying, can save electricity thirty percent, independent cooling cold box.

7. Pneumatic pressure system & Independent pneumatic scraping system

8. Printing speed and the meter display

9. The roto-gravure printing machine frame adopts the type of high quality cast iron structure, stability, good vibration resistance

10. Roto-gravure printing Machine with a matching color deviation, according to system comprehensive deviation correction and out-of-tolerance alarm


Key Components:

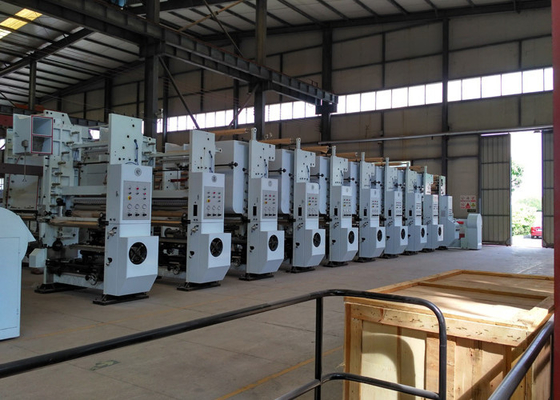

Computer Control BOPP / BOPET Rotogravure Printing Machine With Film Gravure Printing Machine 0


Final Products:

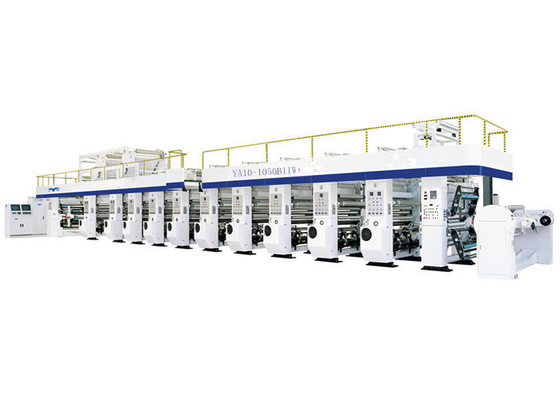

Computer Control BOPP / BOPET Rotogravure Printing Machine With Film Gravure Printing Machine 1




Shantou Huaying Soft-Packing Equipment Plant Ltd.
Contacts :May Wu

     TEL:0086 754 88226231

ADD:B2-B4, Block 9, Jinyuan Industrial Park, Chaoshan Road, Shantou, China
Post Code: 515064
Fax: 0086 754 88226282
