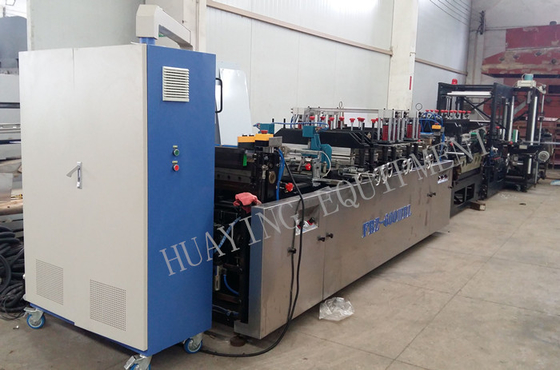

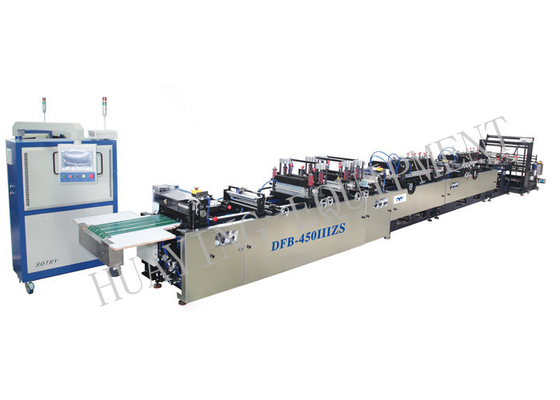

Laminated pouch making machine, center side seal series, Max. production speed 160 P/min
Techinal details:
| Suitable material | plastic/plastic composite material, aluminum/plastic composite material, paper/plastic composite material, low temperature heat seal co-extrusion plastic film |
| Length of the pouch | Max.380mm(when larger than 380mm, should use the multiple feeding function) |
| Width of the pouch | Center seal flat pouch :90～450mm Center seal stand up pouch : 120～360mm Side seal four sides seal pouch : 120～360mm |
| Temperature control | 11 routes |
| Power | 34.47kw |
| Air pressure | 0.6Mpa(6kgf/cm2) |
| Cooling water | Probably 10L/min |
| Size (L * W * H) | 12355mm * 1850mm * 1445mm |
| Weight | Probably 3700 kg |
| Optional function | 1 main machine servo driven control 2. triangle platform forming structure 3. unwind non-stop automatically feeding device 4. final products automatically packaging device |
Pouch shapes:
Summarize and function:
This is the first industry-computer center controlled machine in china which can accurately control the mulit-motor tension, logic action and color code. There are three specification series, which are middle side seal, edge side seal and closed type. This series of machines can provide the high quality pouch. What’s more, it also can furthest increase the production efficiency by using the continuously running and discontinuously running, high speed and safety working condition emulational design. The machines are used to produce the continuous running of the different kinds of the plastic laminated film pouch.
Core competition :
1. Advanced performance:
With excellent technology and stable performance, the flexible packaging equipment manufactured by Shantou Huaying, have been sold well to more than 20 provinces and cities in China, and also exported to other areas like Canada, Russia, Turkey, Southeast Asia, Hong Kong & Taiwan.
2. Machine design:
Machine is designed to produce laminating film pouch of various specifications such as Middle-side pouch and Four-side-seal pouch.
3.Technical differences:
a. The horizontal tolerance of the film running is more than 0.2mm,
b. The temperature of the die mold is 10% lower than the similar equipment;
c. Non-stop automatically roller exchange,
d. Reduce the defective rate of the product.
Key components:
Final products:
