Heavy Duty Multi-Function Standup Pouch Making Machine For Producing Plastic Bags
One set
MOQ
negotiation
Price
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: HY
Certification: CE
Model Number: DFB-450IIIZS
High Light:

plastic bag making machine

,

Pouch packing machine

Payment & Shipping Terms
Packaging Details: Wooden packaging
Delivery Time: 30-60 days
Payment Terms: L/C, T/T
Supply Ability: Six sets/ moth
Specifications
Thickness Of The Substrate: 60-180μm
Max. Working Speed: 160 P/min
Air Pressure: 0.6Mpa(6kgf/cm2)
Cooling Water: Probably 10L/min
Diameter Of The Roll: Max.φ800mm
Temperature Control: 11 Routes
Product Description

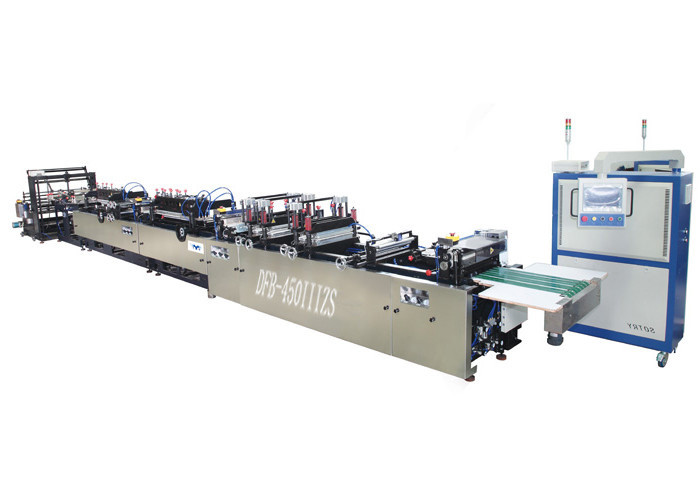

Heavy Duty Multi-Function Standup and Zipper Pouch Making Machine, automatic plastic bag making machine



Quick Details:



Suitable material aluminum/plastic composite material, plastic/plastic composite material, paper/plastic composite material, low temperature heat seal co-extrusion plastic film
Length of the pouch Max.380mm( when larger than 380mm, should use the multiple feeding function )
Width of the pouch

Center seal flat pouch :90~450mm

Center seal stand up pouch : 120~360mm

Side seal four sides seal pouch : 120~360mm

Thickness of the substrate

60-180μm

Max. working speed 160 P/min
Air pressure

0.6Mpa(6kgf/cm2)

Cooling water Probably 10L/min
Diameter of the roll

Max.φ800mm

Temperature control 11 routes
Power

34.47kw

Width of the roll Max.940 mm
Weight Probably 3700 kg
Size (L×W×H)

12355mm×1850mm×1445mm



Optional function



1. main machine servo driven control

2. triangle platform forming structure

3. unwind non-stop automatically feeding device

4. final products automatically packaging device



















































Pouch kinds:



Heavy Duty Multi-Function Standup Pouch Making Machine For Producing Plastic Bags 0



Production introduction:

It’s a multi-functional equipment to make centre side sealing bag, zipper bag and self-standing bag, with three traction servo motor (Made in Japan) and PLC controlling system. Finished bags are widely used in food industry. The machine produces bags with stable operation and low noise.

Suitable Material: BOPP, COPP, PET, PVC, Nylon etc. plastic laminated film, multiple-layer extruding film, aluminum compound film.



      Core competition :

1. The whole machine adopts industrial control level computer and auxiliary three-servo control. System.

2. All the parameters adopt CRT real time display. The bag-making speed, bag-making length, temperature, counting, punching and conveyor quantity of doubling finished product can be preset.

3. Releasing tension can be controlled by full-automatic adjustable magnetic powder constant tension control system.

4. Automatic deviation-rectifying, double photo electric tracking.

5. LPC automatic deviation-rectifying, double photoelectric tracking.

6. New type pressure-lifting six time conveying function.

7. Computer 11 group PID constant temperature control.

8. Pneumatic multi-functional punching, automatic collecting of cut rim charge, electrostatic elimination.



     Key components:



Heavy Duty Multi-Function Standup Pouch Making Machine For Producing Plastic Bags 1





   Final products:



Heavy Duty Multi-Function Standup Pouch Making Machine For Producing Plastic Bags 2



Contacts:



Shantou Huaying Soft-Packing Equipment Plant Ltd.
Contacts :May Wu

E-mail:hy@hyspe.com

TEL:0086 754 88226231

ADD:B2-B4, Block 9, Jinyuan Industrial Park, Chaoshan Road, Shantou, China
Post Code: 515064
Fax: 0086 754 88226282
