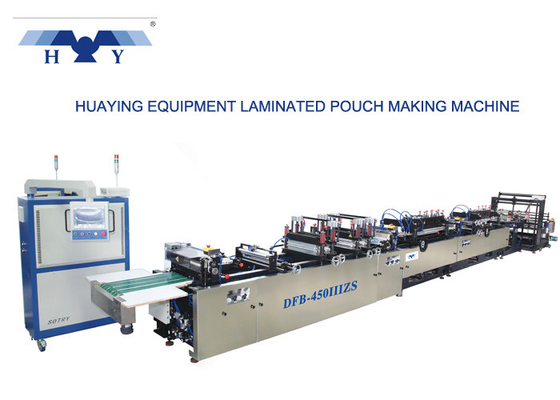

Zipper bag stand up pouch automatic bag making machine, center side seal series, Max. production speed 160 P/min
Quick Details:
| Suitable material | plastic/plastic composite material, aluminum/plastic composite material, paper/plastic composite material, low temperature heat seal co-extrusion plastic film |
| Thickness of the substrate |
60-180μm |
| Max. working speed | 160 P/min |
| Size (L×W×H) |
12355mm×1850mm×1445mm |
| Weight | Probably 3700 kg |
| Width of the pouch |
Center seal flat pouch :90～450mm Center seal stand up pouch : 120～360mm Side seal four sides seal pouch : 120～360mm |
| Width of the roll | Max.940 mm |
| Length of the pouch | Max.380mm( when larger than 380mm, should use the multiple feeding function ) |
| Diameter of the roll |
Max.φ800mm |
| Temperature control | 11 routes |
| Power |
34.47kw |
| Air pressure |
0.6Mpa(6kgf/cm2) |
| Cooling water |
10L/min |
| Optional function |
1. unwind non-stop automatically feeding device 2. triangle platform forming structure 3. main machine servo driven control 4. final products automatically packaging device |
Pouch Shape:
Summarize and function
Full-automatic High-speed center side sealing pouch making machine are suitable for producing two-layer or multi-layer centre side sealing laminated film pouch (pouch for food, washing power and sweets etc) which take BOPP, PET, CPP, PE, nylon, aluminum foil and paper as base material. With such characteristics as easy operation, smooth product, stiff and smooth and beautiful appearance,high-strength thermal edge sealing and high bag making speed, it is a kind of ideal equipment for packing and making bags.
Core competition :
1. All machines before shipment, we will examine and test it.(if customer come, we will waiting for you coming).
2. Our after-sale service is perfect. We have some engineer to test machine in foreign all over year. If you need engineer to test, we can arrange it.
3. Prompt Reply Within 12 Hours.
4. Production quantity about 100-200 sets each year.
Key components:
Final Products:
Contacts:
Shantou Huaying Soft-Packing Equipment Plant Ltd.
Contacts :May Wu
E-mail:hy@hyspe.com
TEL:0086 754 88226231
ADD:B2-B4, Block 9, Jinyuan Industrial Park, Chaoshan Road, Shantou, China
Post Code: 515064
Fax: 0086 754 88226282
