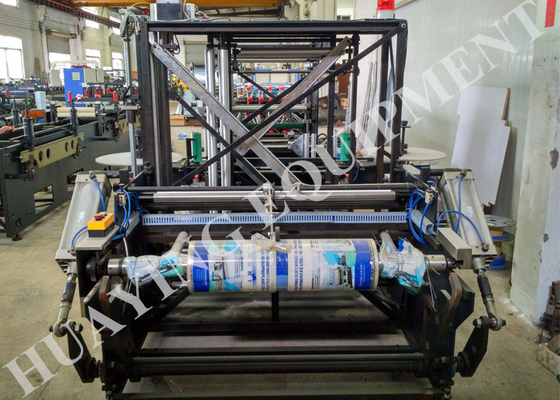

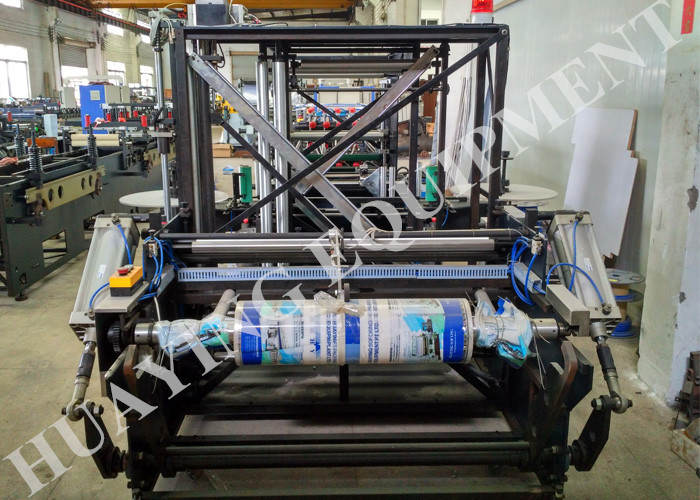

High-speed automatic waterproof pouch making machine with standing and zipper seal, side seal series, max. production speed 160 P/min
Quick Details:
| Suitable material | plastic/plastic composite material, aluminum/plastic composite material, paper/plastic composite material, low temperature heat seal co-extrusion plastic film |
| Thickness of the substrate |
60-180μm |
| Max. working speed |
Three side seal pouch:160 P/min |
| Length of the pouch |
|
| Width of the pouch | Three side seal pouch:80～600mm Stand up pouch: 80mm～250mm |
| Width of the roll | Max. 1240 mm |
| Diameter of the roll |
Three side seal pouch Stand up pouch: material of the pouch bodyMax.φ800mm(L=1120mm) Stand up pouch: material of the pouch bottomMax.φ600mm(L=160mm) |
| Temperature control | 20 routes |
| Power | 62.65 kw |
| Air pressure |
0.6Mpa(6kgf/cm2) |
| Cooling water | Probably 15L/min |
| Size (L×W×H) |
12085mm×2380mm×1865mm |
| Weight | Probably 7000kg |
|
Optional function
|
1.Mmain machine servo driven control |
Pouch kinds:
Summarize and function:
Suitable for PE Film sealing and cutting, which the sealing line is folding faster precision, full automatically eye tracking, mainly for the squared bottom bag like the food package bag.
Core competition :
This machine adopt the computer controlled ,electrical eyes tracking color, static elminator device, auto meter and numbers counter, automatic constant temperature and alarming device, which the feature is stable, conveniently operation, bottom sealing.
One machine has multical usage, which can do different size pouches.
Final products:
