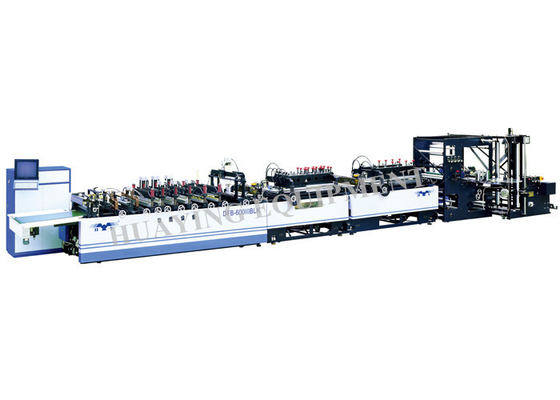

Pouch packing machine for packaging industry , side seal series , max. production speed 160P/min
Technical details:
| Suitable material | plastic/plastic composite material, aluminum/plastic composite material, paper/plastic composite material, low temperature heat seal co-extrusion plastic film |
| Thickness of the substrate | 60-180μm |
| Max. working speed | three side seal pouch:160 P/min stand up pouch: 120 P/min three side seal with zipper pouch: 90 P/min stand up with zipper pouch: 90 P/min |
| Length of the pouch |
Three side seal pouch: ( when larger than 380mm, should use the multiple feeding function ) |
| Width of the pouch | three side seal pouch:80～600mm stand up pouch: 80mm～250mm |
| Width of the roll | Max. 1240 mm |
| Diameter of the roll | Three side seal pouch Stand up pouch: material of the pouch body Max.φ800mm(L=1120mm) Stand up pouch: material of the pouch bottom Max.φ600mm(L=160mm) |
| Temperature control | 20 routes |
| Cooling water | Probably 15L/min |

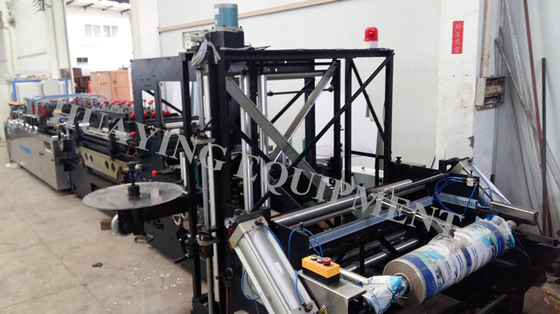

| Optional function | 1. Main machine servo driven control 2. Double cutter device 3. Triangle platform forming structure(stand up pouch, zipper pouch) 4 Penguin packaging middle feeding unwind device ( dual penguin packaging) 5. Unwind non-stop automatically feeding device 6. Final products automatically packaging device |
Pouch shapes:
Summarize and function:
This series of machines is the first one to use the industry computer center control in China. It can accurately control the mulit-motor tension, logic action and color code. Now we have already three specification series including middle side seal, edge side seal, closed type. This series of machines can not only ensure the high quality pouch but also can furthest increase the production efficiency by using the continuously running and discontinuously running, high speed and safety working condition emulational design. The equipment can apply to the continuous running of the various kinds of the plastic laminated film pouch.
Core competition :
1. Technical differences:
Technical differences: The horizontal tolerance of the film running is more than 0.2mm, the temperature of the die mold is 10% lower than the similar equipment; non-stop automatically roller exchange, reduce the defective rate of the product
2. Advanced performance:
It was the 1999 year National Level Key New Product and Guangdong Province High New Tech Product. After 20 years of continuous improvement and innovation, we have already formed the full line scientific research & design & precise manufacturing system and full line product specification & grade supply system.
3. Stability performance:
We have already formed a steady professional team that integrate the scientific research design, product manufacturing and sales service. We coagulate many years’comprehensive resources and win the honor of “Best Product of China ”.
Key components:
Final products:
