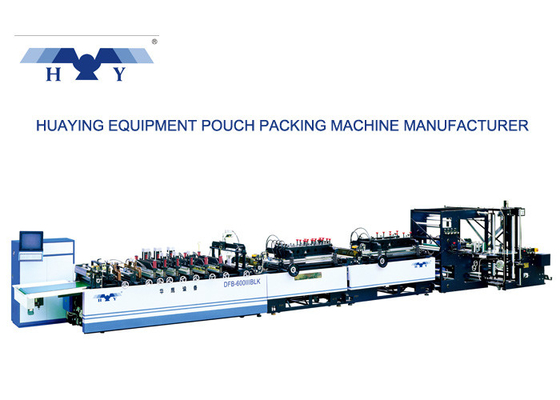

Fully automatic pouch bag making machine for packaging industry, side seal series, max. production speed 160 P/min, pouching machine
Quick Details:
Thickness of the substrate |
60-180μm |
Suitable material | plastic/plastic composite material, aluminum/plastic composite material, paper/plastic composite material, low temperature heat seal co-extrusion plastic film |
Max. working speed |
Three side seal pouch:160 P/min Stand up pouch: 120 P/min Three side seal with zipper pouch: 90 P/min Stand up with zipper pouch: 90 P/min |
Length of the pouch |
Three side seal pouch: Max.380mm ( when larger than 380mm, should use the multiple feeding function ) Stand up pouch: 120mm~280mm (dual pouch ),240mm~560mm (single pouch ) |
Width of the pouch |
Three side seal pouch:80~600mm Stand up pouch: 80mm~250mm |
Width of the roll | Max. 1240 mm |
Diameter of the roll |
Three side seal pouch Stand up pouch: material of the pouch bodyMax.φ800mm(L=1120mm), Stand up pouch: material of the pouch bottomMax.φ600mm(L=160mm) |
Temperature control | 20 routes |
Power | 62.65 kw |
Air pressure |
0.6Mpa(6kgf/cm2) |
Cooling water | Probably 15L/min |
Size (L×W×H) |
12085mm×2380mm×1865mm |
Weight | Probably 7000kg |
Optional function
|
1. Penguin packaging middle feeding unwind device ( dual penguin packaging) 2. main machine servo driven control 3. double cutter device 4. triangle platform forming structure (stand up pouch, zipper pouch) 5. Final products automatically packaging device 6. Unwind non-stop automatically feeding de |
Summarize and function:
It’s a multi-functional equipment to make side sealing bag, zipper bag and self-standing bag, with three traction servo motor (Made in Japan, Panasonic) and PLC controlling system. Finished bags are widely used in food industry. The machine produces bags with stable operation and low noise.
Core competition :
1. Unwinding material adopts automatic magnetic powder constant tension.
2. Japan Panasonic PLC controlling system, touch screen.
3. With hole punch for different type and size
4. Set length, temperature directly with touch screen.
5. With automatic counting function
6. With alarm system for errors, like no material, temperature abnormal, tension abnormal etc.
7. Solid and steady machine body, use 12mm thickness steel plate.
8. With CE/ISO certificate
Key technology advantage :
1. Complete equipment series and specifications, includes center-seal pouch series, side-seal
pouch series, standup pouch series, shaped pouch series, welding machine etc. Can offer the full
range of technical services for laminated pouch to customers.
2. Configured with non-stop material changing unit (Patent technology), finished pouch auto
checking and packing unit (Patent technology). Machine type can be double machine operation
in the same direction that can help to reduce the workers and increase the production efficiency 3. Optional : Quality intelligent management system (Patent technology), can achieve auto production quality intelligent management
Pouch kinds:
Key component:
Final products:
