Plastic Pouch Making Machine Center Side Seal
One set
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: CHINA
Brand Name: HY
Certification: CE
Model Number: DFB-450IIIZS
High Light:

plastic bag making machine


plastic bag cutting machine

Payment & Shipping Terms
Packaging Details: Wooden packaging
Delivery Time: 30-60 days
Payment Terms: L/C, T/T
Supply Ability: Six sets/ moth
Weight: Probably 3700 Kg
Size (L×W×H): 12355mm×1850mm×1445mm
Cooling Water: About 10L/min
Air Pressure: 0.6Mpa(6kgf/cm2)
Power: 34.47kw
Temperature Control: 11 Routes
Product Description

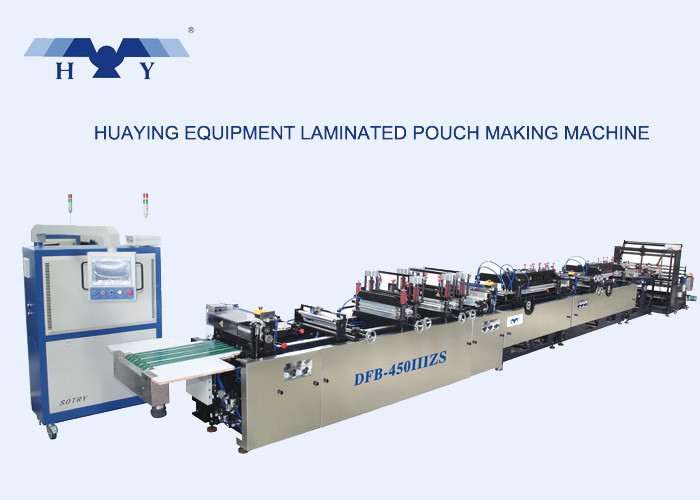

High speed laminated film pouch making machine, center side seal series, Max. production speed 160 P/min,plastic pouch making machine


Quick Details:


Suitable material plastic/plastic composite material, aluminum/plastic composite material, paper/plastic composite material, low temperature heat seal co-extrusion plastic film
Thickness of the substrate


Max. working speed 160 P/min
Length of the pouch Max.380mm( when larger than 380mm, should use the multiple feeding function )
Width of the pouch

Center seal flat pouch :90~450mm

Center seal stand up pouch : 120~360mm

Side seal four sides seal pouch : 120~360mm

Width of the roll Max.940 mm
Diameter of the roll


Temperature control 11 routes


Air pressure


Cooling water About 10L/min
Size (L×W×H)


Weight Probably 3700 kg

Optional function


1. main machine servo driven control

2. triangle platform forming structure

3. unwind non-stop automatically feeding device

4. final products automatically packaging device



























Pouch shapes:

Plastic Pouch Making Machine Center Side Seal 0


Summarize and function:

1. First industry-computer center controlled machine in china

2. Accurately control the multi-motor tension, logic action and color code.

3. Three specification series, which are middle side seal, edge side seal and closed type.

4. This series of machines can provide the high quality pouch.

5. Furthest increase the production efficiency

6. Machines are used to produce the continuous running of the different kinds of the plastic laminated film pouch.


Core competition :


Advanced performance:

    With excellent technology and stable performance, the flexible packaging equipment manufactured by Shantou Huaying, have been sold well to more than 20 provinces and cities in China, and also exported to other areas like Canada, Russia, Turkey, Southeast Asia, Hong Kong & Taiwan.

Machine design:

     Machine is designed to produce laminating film pouch of various specifications such as Middle-side pouch and Four-side-seal pouch.

Technical differences:

1. The horizontal tolerance of the film running is more than 0.2mm,

2. The temperature of the die mold is 10% lower than the similar equipment;

3. Non-stop automatically roller exchange,

4. Reduce the defective rate of the product.


Key technology advantage :

1. Complete equipment series and specifications, includes center-seal pouch series, side-seal

    pouch series, standup pouch series, shaped pouch series, welding machine etc. Can offer the full

    range of technical services for laminated pouch to customers.

2. Configured with non-stop material changing unit (Patent technology), finished pouch auto

    checking and packing unit (Patent technology). Machine type can be double machine operation

in the same direction that can help to reduce the workers and increase the production efficiency

3. Optional : Quality intelligent management system (Patent technology), can achieve auto production quality intelligent management



Key components:


Plastic Pouch Making Machine Center Side Seal 1

Final products:


Plastic Pouch Making Machine Center Side Seal 2



Shantou Huaying Soft-Packing Equipment Plant Ltd.
Contacts :May Wu

TEL:0086 754 88226231

ADD:B2-B4, Block 9, Jinyuan Industrial Park, Chaoshan Road, Shantou, China
Post Code: 515064
Fax: 0086 754 88226282
