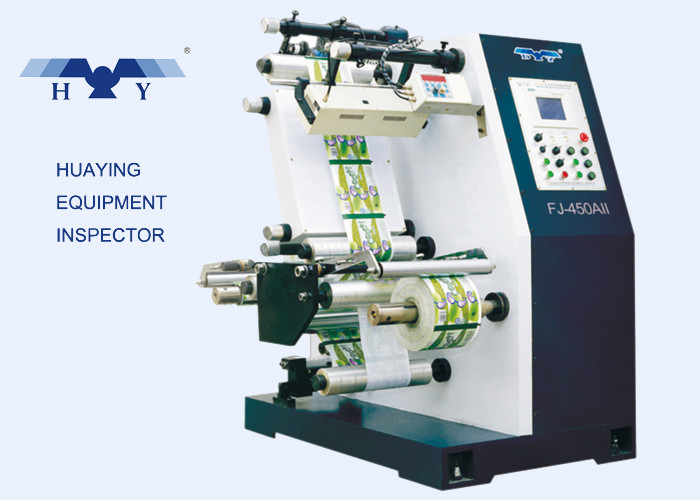

Inspection for printing film and paper, max speed 185 m/min, can configure with laser cutting and digital ink-jet device
Quick Details:
| Thickness of the substrate | Printing film: 0.015-0.15mm |
| Max. working speed | Ma x.185 m/min (when 50HZ) |
| Width of the roll |
80-450mm |
| Power | Probably 7 kw( AC frequency inverter motor drive) |
| Diameter of the roll |
Φ450 mm |
| Inspect method | Fixed stroboscope |
| Control system | PLC data control |
| Range of the tension control | 1.5 - 6 kg |
| Requirement of the power | AC 380±10% three-phase four-wire |
| Size ( L × W × H) |
1400mm×1400mm×1600mm |
| Optional function |
1. CCD inspecting device 2. computer automatically image analysis system |
Summarize and function:
1. First one to use the industry computer center control in China.
2. Accurately control the multi-motor tension, logic action and CCD printing quality inspection.
3. Composed of unwind & deviation correction unit, main driving mechanism, stroboscopic inspector, rewind unit and complete set of control system.
4. Compact structure and perfect performance of components
5. Ensure the high-speed running
6. Furthest increase the production efficiency by using the CCD camera, image analysis, defective products showing, reset accurately etc.
7. Apply to the continuously production of the various kinds of the rolled material which be printed and coating image be inspected.
Core competition:
①Technical differences:
a. The accuracy of the speed synchronous running can reach 0.02%;
b. The inspecting tolerance of the setting can reach 100%；
c. Configured with outline image analysis platform.
②Advanced performance: This machine was the 2007 year National Level Torch Plan Project and Guangdong Province High Technical Product. This CCD printing quality inspecting equipment was the first one made by China. After 15 years of continuous improvement and innovation, we have already formed the full line scientific research & design & precise manufacturing system and full line product specification & grade supply system.
.
③Structure feature: Equipped with stroboscope inspecting station with super-large surface to meet the
physical requirement of visual height and gradient. Magnetic-attraction-type film contact platform (HUAYING design & patent) is easily operated and film is accepted in regularity.
Key technology advantage :
1. Complete equipment series and specifications, includes printed rolled CCD inspector, printed rolled
rewinder, printed single rolled rewinder, Cutting machine for finished products, Can offer the full range
of technical services for printed products inspected and rewinded.
2. Speed synchronous operation precision can reach 0.02%, setting error detection rate can reach 100%;
configured with line image analysis platform.
3. Optional : Quality intelligent management system (Patent technology), can achieve auto production
quality intelligent management .
